/ATEN 32A 24 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software
ATEN
ATEN TECHNOLOGIES 32A 24 Outlet Switched Bank Metered PDU + Free Eco Manager Software PE6324LG
$768.89
Save 3% · $22.62
$746.27
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
- B2B Volume Pricing
- Purchase Orders Accepted for Approved Accounts
- Government Institutional Purchasing
- Secure Checkout
Product Details

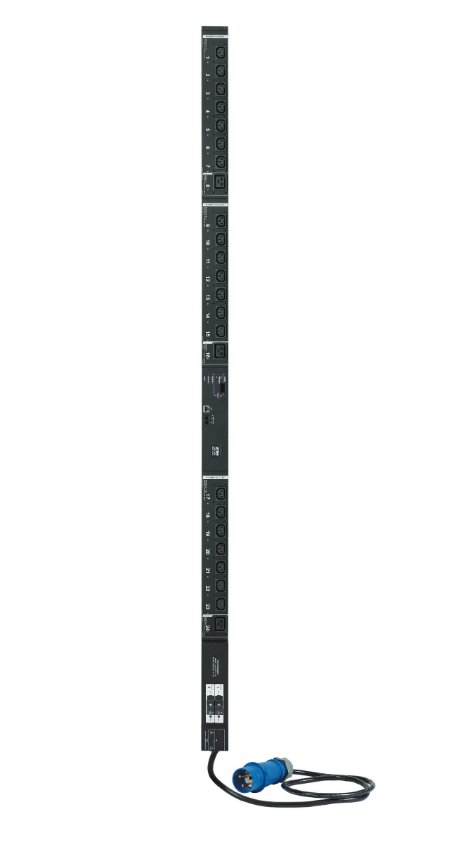

The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24 AC outlets and are available in various IEC or NEMA socket configurations. The low profile series has a smaller input region on the PDU to provide more installation space for data centers.
The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.
NRGence eco PDU supports any 3rd party v1, v2 v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.
NRGence eco PDU supports any 3rd party v1, v2 v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
Product Specifications
| Manufacturer | ATEN TECHNOLOGIES |
|---|---|
| Manufacturer Part Number | PE6324LG |
| Barcode | 0672792402746 |
| Brand Name | ATEN |
| Product Name | ATEN 32A 24 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software |
| Mfr. Part Number | PE6324LG |
|---|---|
| Barcode | 0672792402746 |
| Design | |
| PDU types | Metered, Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Metal |
| Product colour | Black |
| Ports interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| LED indicators | Yes |
| Cable length | 1.6 m |
| Management features | |
| Monitoring | Humidity, Power, Temperature |
| Supported network protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2&V3, Telnet |
| Power | |
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 100-240 V |
| Load capacity | 7360 VA |
| Power protection features | Overload |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, CE-LVD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight dimensions | |
| Width | 66 mm |
| Depth | 44 mm |
| Height | 1775 mm |
| Weight | 6.2 kg |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package weight | 10.2 kg |
| Package width | 210 mm |
| Package depth | 170 mm |
| Package height | 1890 mm |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
