ATEN
ATEN TECHNOLOGIES VM0202HB matrix switcher AV
$276.42
Save 5% · $13.55
$262.87
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
- B2B Volume Pricing
- Purchase Orders Accepted for Approved Accounts
- Government Institutional Purchasing
- Secure Checkout
Product Details
The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.

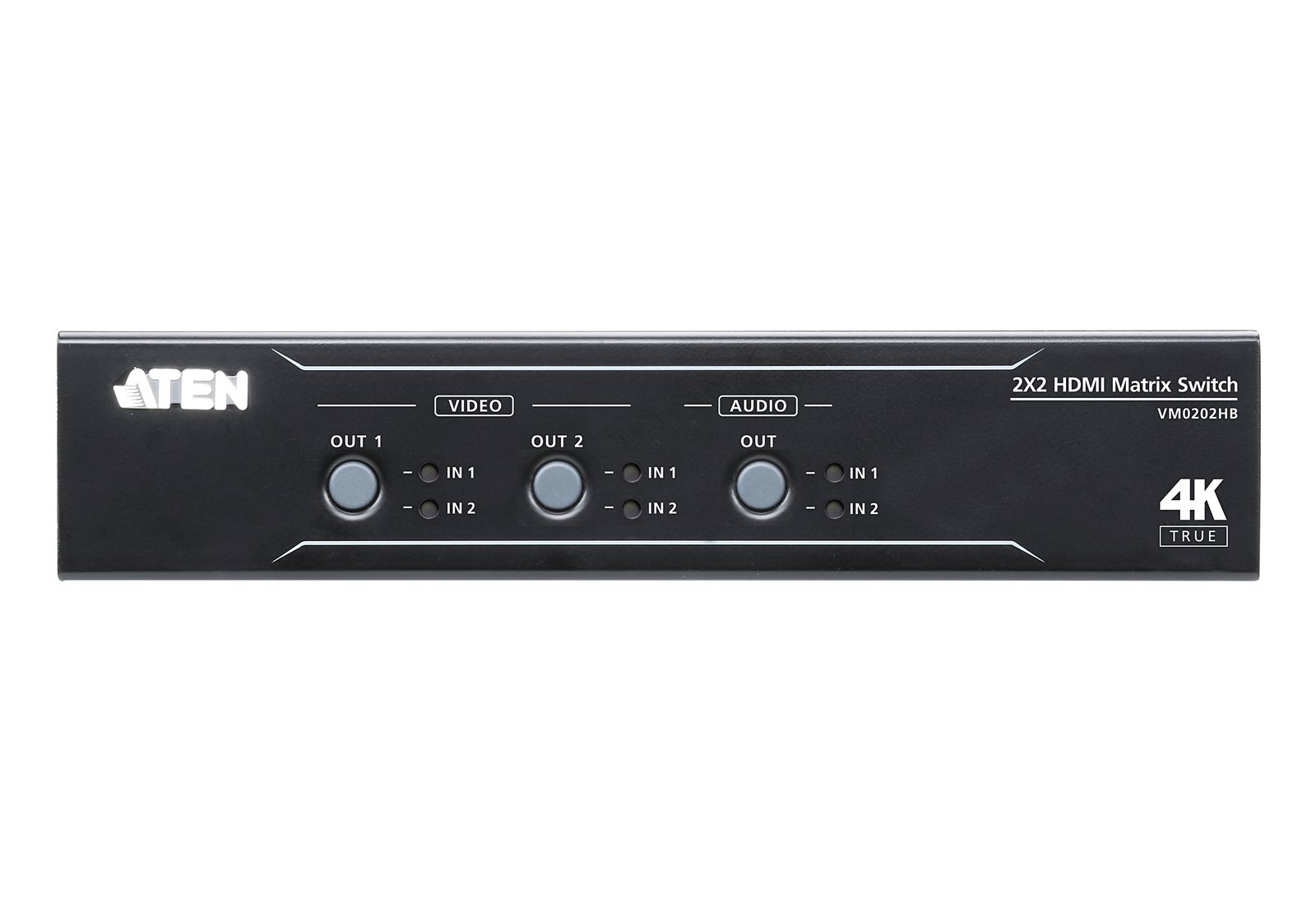

The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides highperformance routing of 2 HDMI video sources such as highdefinition Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio deembedder allows HDMI audio extraction for independent analog audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.
The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides highperformance routing of 2 HDMI video sources such as highdefinition Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio deembedder allows HDMI audio extraction for independent analog audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.
Product Specifications
| Manufacturer | ATEN TECHNOLOGIES |
|---|---|
| Manufacturer Part Number | VM0202HB |
| Barcode | 0672792011801 |
| Brand Name | ATEN |
| Product Name | ATEN VM0202HB matrix switcher AV matrix switcher |
| Mfr. Part Number | VM0202HB |
|---|---|
| Barcode | 0672792011801 |
| Features | |
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | No |
| High Dynamic Range (HDR) supported | Yes |
| Extended display identification data (EDID) | Yes |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Control type | Buttons, Wireless |
| LED indicators | Yes |
| Remote control included | Yes |
| Display | |
| Built-in display | No |

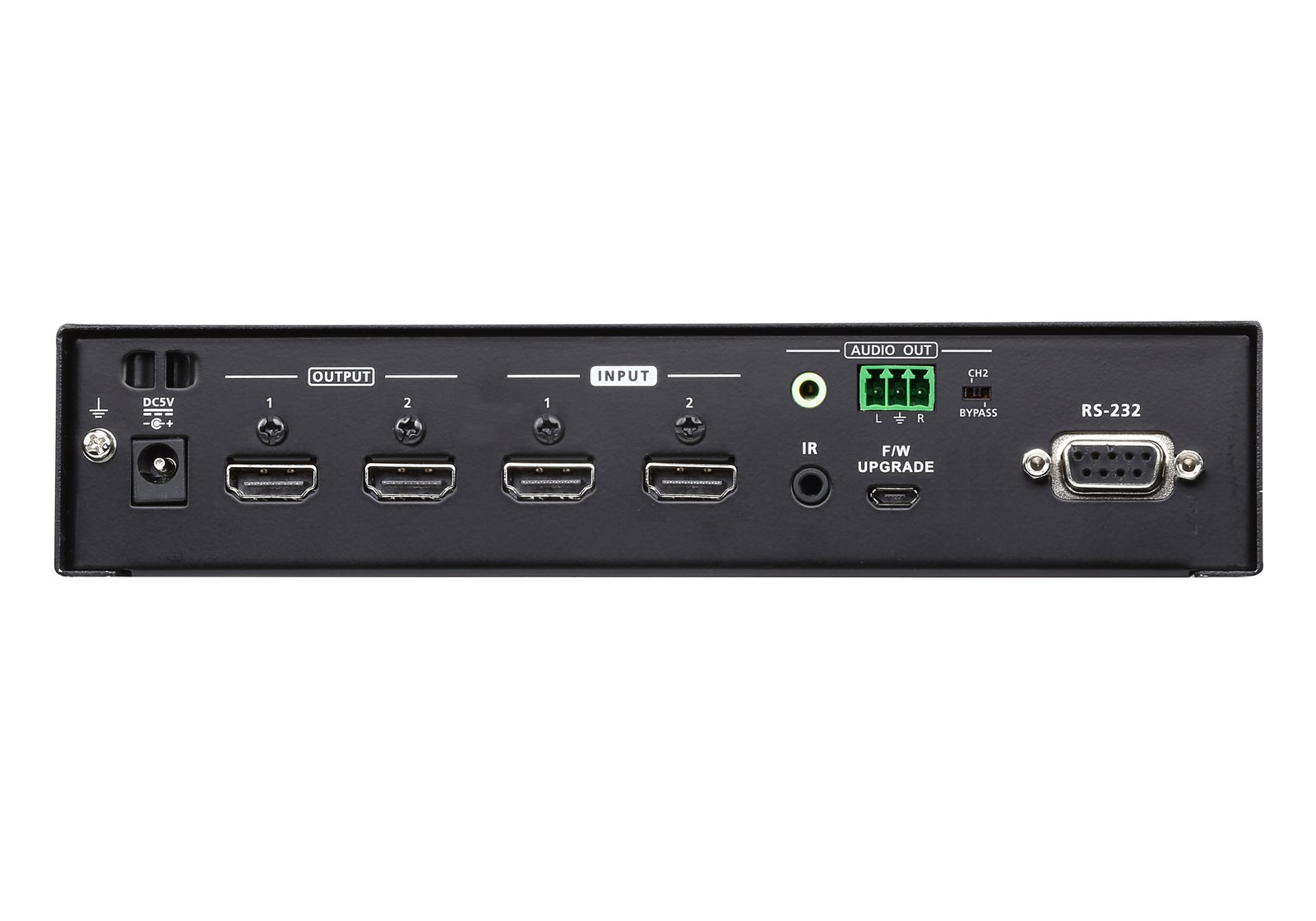

| Ports interfaces | |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| Audio (L/R) in | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (typical) | 2.47 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight dimensions | |
| Width | 76 mm |
| Depth | 200 mm |
| Height | 42 mm |
| Weight | 600 g |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
