Brainboxes
Brainboxes Hardened Industrial 5 Port Gigabit Ethernet Switch SW-715
$163.06
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
- B2B Volume Pricing
- Purchase Orders Accepted for Approved Accounts
- Government Institutional Purchasing
- Secure Checkout
Product Details
Compact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Product Specifications
| Manufacturer | BRAINBOXES |
|---|---|
| Manufacturer Part Number | SW-715 |
| Barcode | 0837324004298 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Hardened Industrial 5 Port Gigabit Ethernet Switch |
| Mfr. Part Number | SW-715 |
|---|---|
| Barcode | 0837324004298 |
| Management features | |
| Switch type | Unmanaged |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-sensing | Yes |
| Data transmission | |
| MAC address table | 1000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.448 MB |
| Design | |
| Form factor | DIN rail |
| Product colour | Black, Green |
| Housing material | Metal |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |

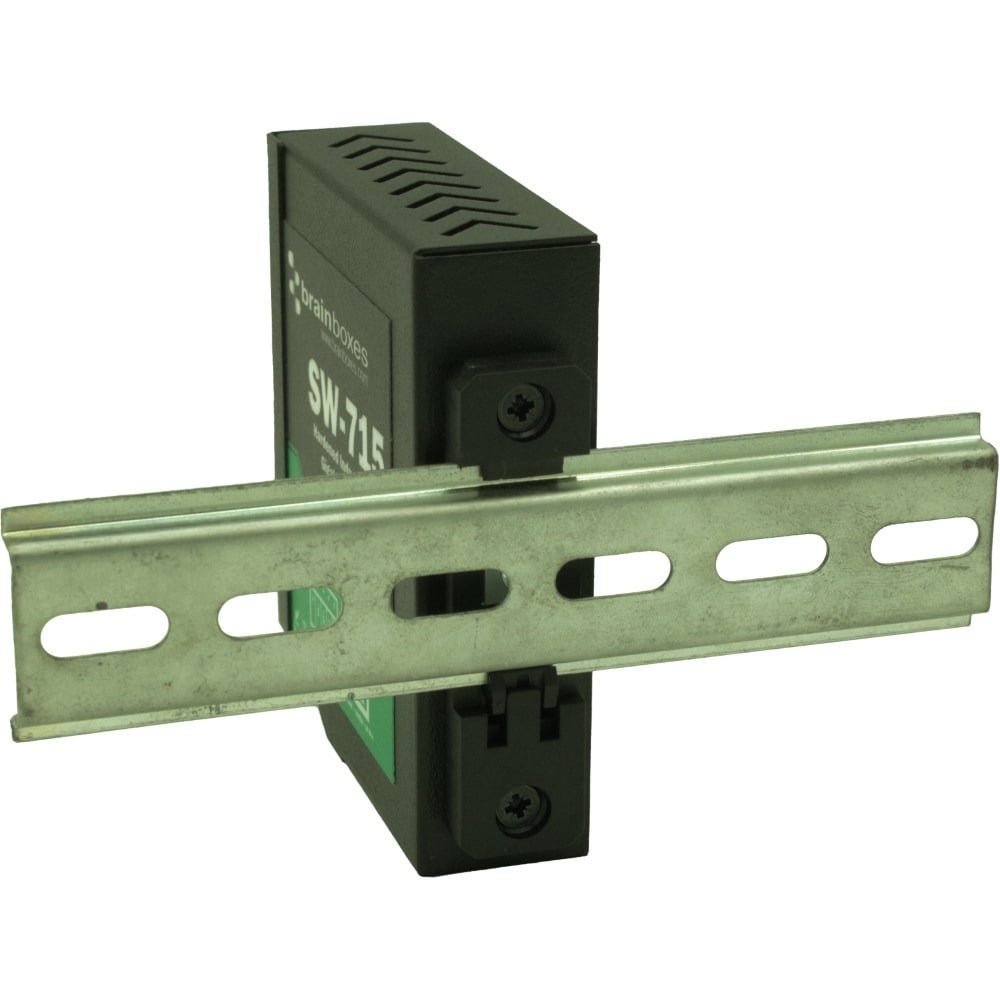

| DIN rail mounting | Yes |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 3.6 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight dimensions | |

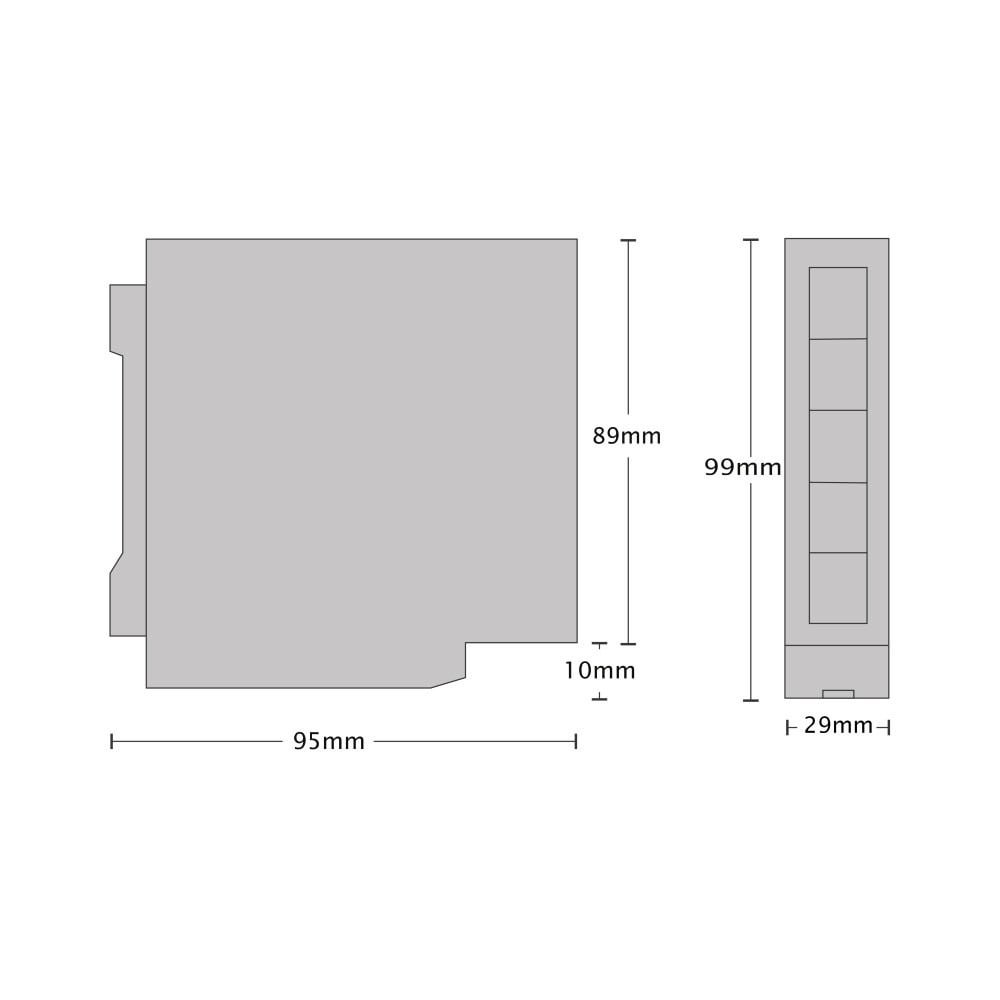

| Width | 99 mm |
| Depth | 94 mm |
| Height | 29 mm |
| Weight | 274 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 49 mm |
| Package depth | 135 mm |
| Package height | 160 mm |
| Package weight | 353 g |
| Certificates | |
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
| Logistics data | |
| Country of origin | United Kingdom |
| Harmonized System (HS) code | 851762 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
