/Brainboxes Industrial 5 Port 10/100 Ethernet Switch
Brainboxes
Brainboxes Industrial 5 Port 10/100 Ethernet Switch SW-505
$96.10
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
- B2B Volume Pricing
- Purchase Orders Accepted for Approved Accounts
- Government Institutional Purchasing
- Secure Checkout
Product Details

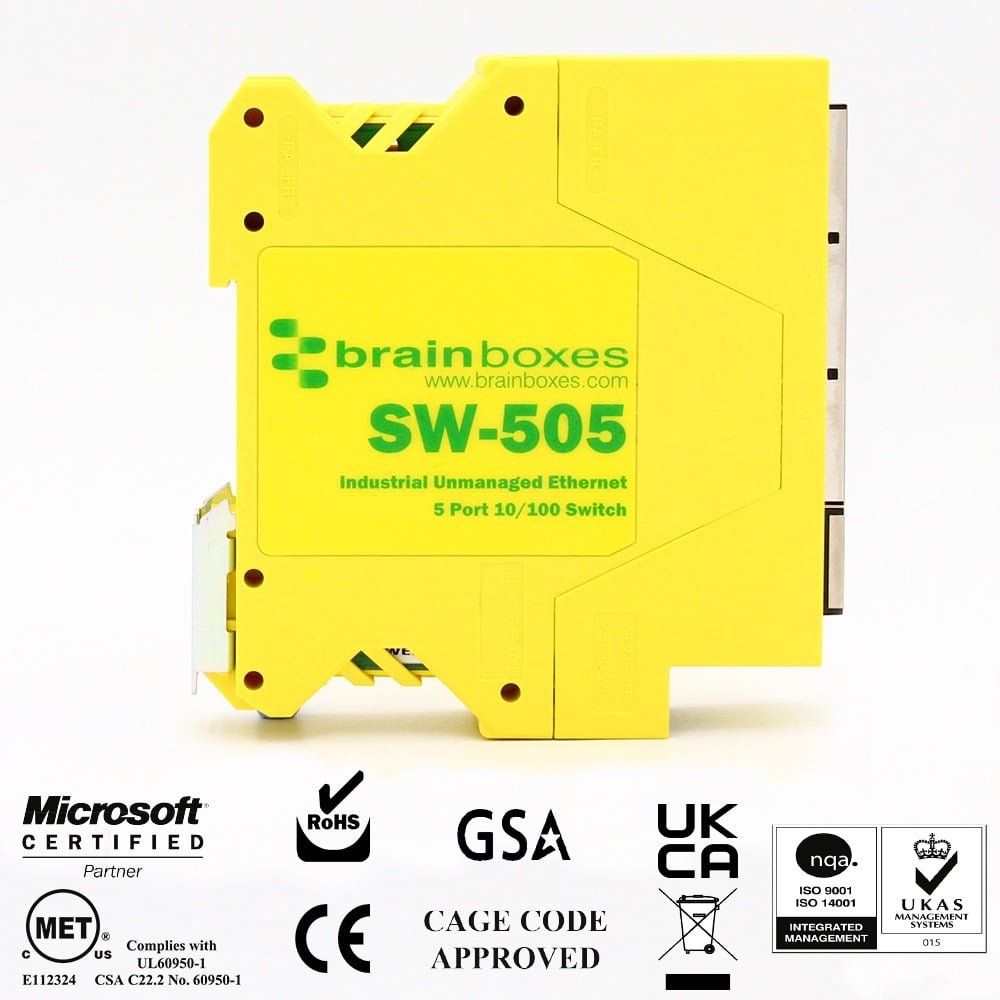

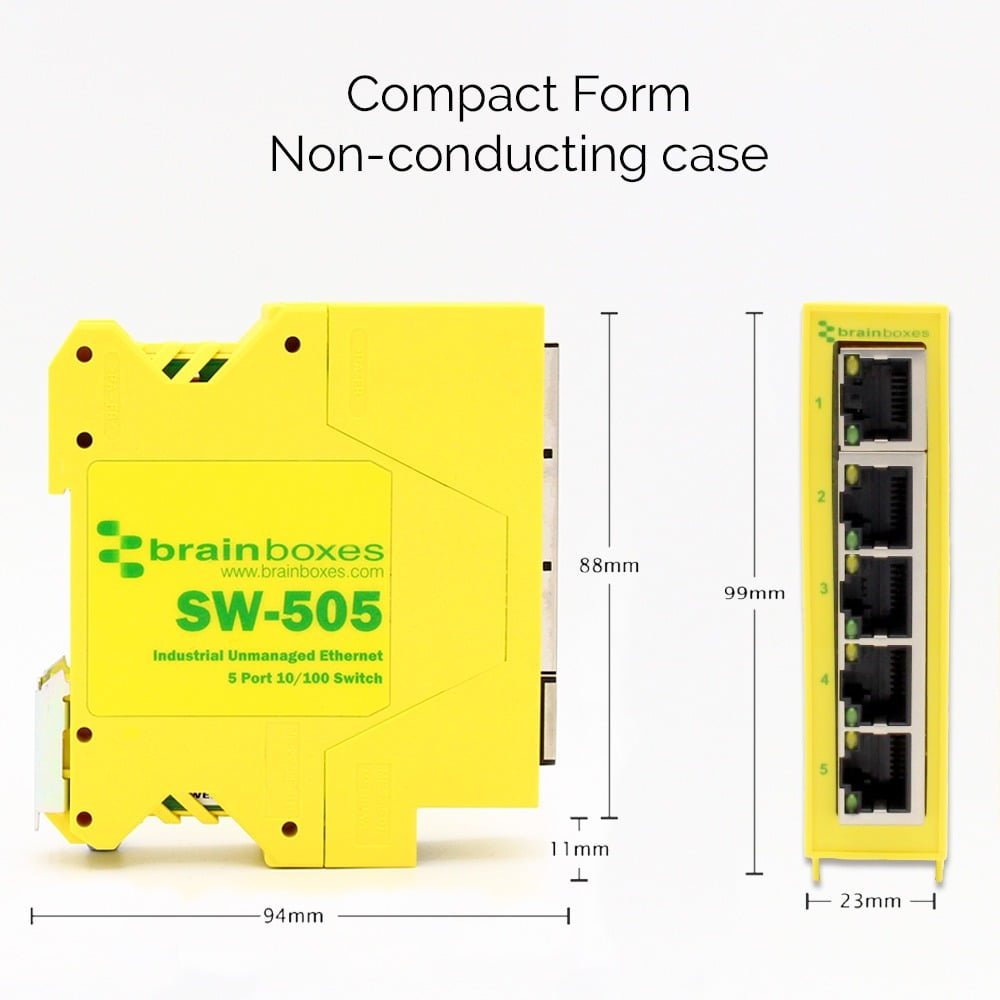

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet brainboxes-SW-505-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Product Specifications
| Manufacturer | BRAINBOXES |
|---|---|
| Manufacturer Part Number | SW-505 |
| Barcode | 0837324003895 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Industrial 5 Port 10/100 Ethernet Switch |
| Mfr. Part Number | SW-505 |
|---|---|
| Barcode | 0837324003895 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transmission | |
| MAC address table | 1000 entries |
| Jumbo frames support | No |
| Design | |
| Rack mounting | No |
| Form factor | DIN rail |
| Product colour | Yellow |
| Housing material | Polyamide |
| International Protection (IP) code | IP20 |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 1.35 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight dimensions | |
| Width | 99 mm |
| Depth | 94 mm |
| Height | 23 mm |
| Weight | 125 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 199 g |
| Logistics data | |
| Harmonized System (HS) code | 851762 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
