Brainboxes
Brainboxes Industrial 5 Port Gigabit Ethernet Switch SW-515
$145.79
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
- B2B Volume Pricing
- Purchase Orders Accepted for Approved Accounts
- Government Institutional Purchasing
- Secure Checkout
Product Details

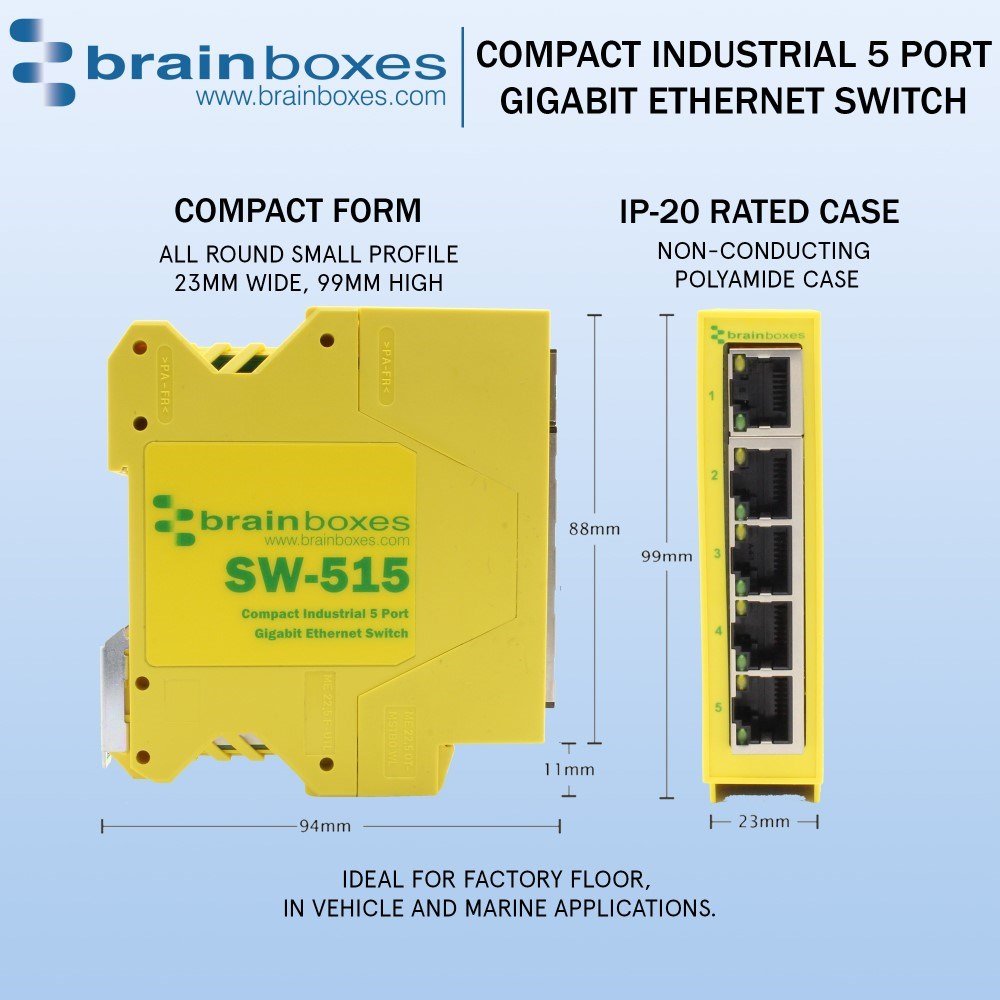

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet brainboxes-SW-515-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Product Specifications
| Manufacturer | BRAINBOXES |
|---|---|
| Manufacturer Part Number | SW-515 |
| Barcode | 0837324004281 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Industrial 5 Port Gigabit Ethernet Switch |
| Mfr. Part Number | SW-515 |
|---|---|
| Barcode | 0837324004281 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-sensing | Yes |
| Data transmission | |
| MAC address table | 1000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Design | |
| Rack mounting | No |
| Form factor | DIN rail |
| Product colour | Yellow |
| Housing material | Polyamide |
| LED indicators | Activity, Link, Speed |
| Redundant fans support | Yes |
| International Protection (IP) code | IP20 |
| DIN rail mounting | Yes |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 3.6 W |
| Power protection features | Reverse polarity |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight dimensions | |
| Width | 99 mm |
| Depth | 94 mm |
| Height | 23 mm |
| Weight | 112 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 191 g |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL Complies with UL 60950-1 |
| Logistics data | |
| Harmonized System (HS) code | 851762 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
