/Brainboxes Light Industrial 8 Port 10/100 Ethernet Switch
Brainboxes

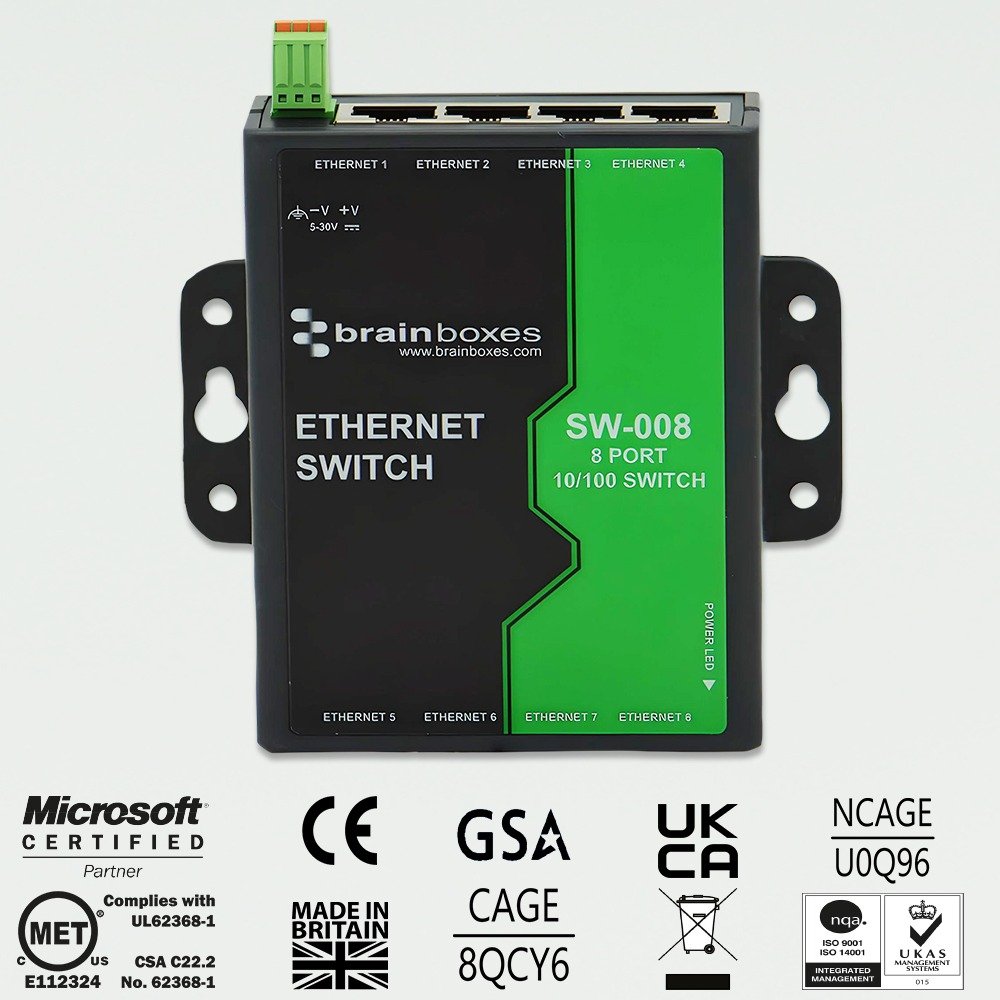

Brainboxes Light Industrial 8 Port 10/100 Ethernet Switch SW-008
$78.68
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
- B2B Volume Pricing
- Purchase Orders Accepted for Approved Accounts
- Government Institutional Purchasing
- Secure Checkout
Product Details

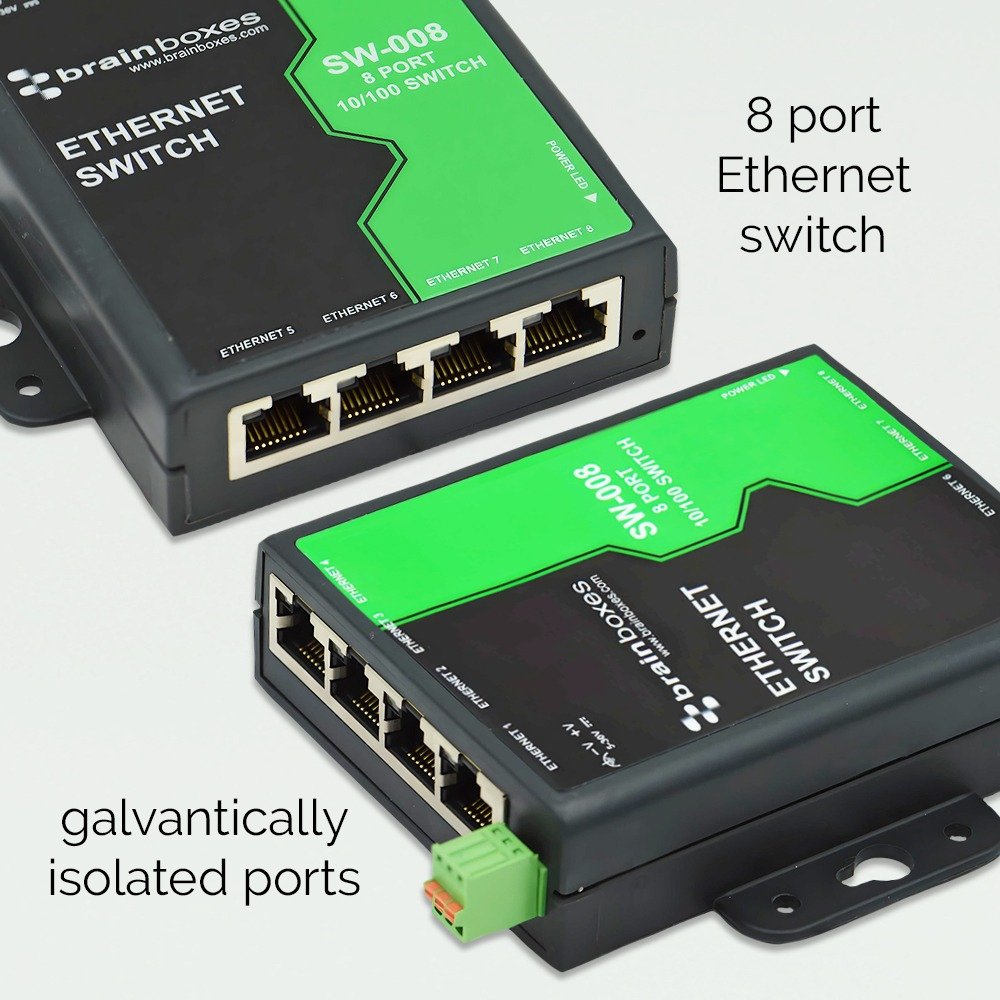

Light Industrial/Commercial Ethernet 8 Port unmanaged switch. Galvanically Isolated brainboxes-SW-008-front-panel-ethernet-port-status-leds. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, also includes DIN Rail mount accessory (MK-048)
Product Specifications
| Manufacturer | BRAINBOXES |
|---|---|
| Manufacturer Part Number | SW-008 |
| Barcode | 0837324004373 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Light Industrial 8 Port 10/100 Ethernet Switch |
| Mfr. Part Number | SW-008 |
|---|---|
| Barcode | 0837324004373 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto-sensing | Yes |
| Design | |
| Form factor | DIN rail |
| Product colour | Black, Green |
| Housing material | Polyamide |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 1.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight dimensions | |
| Width | 100.8 mm |
| Depth | 111.2 mm |
| Height | 25.8 mm |
| Weight | 129 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 214 g |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Logistics data | |
| Harmonized System (HS) code | 851762 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
