Chief Proximity® In-wall Storage Box with 2 Receptacle Filter Surge-PAC525FBP2

The PAC525FBP2 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX® non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK® Electronic Systems Protection.

Features

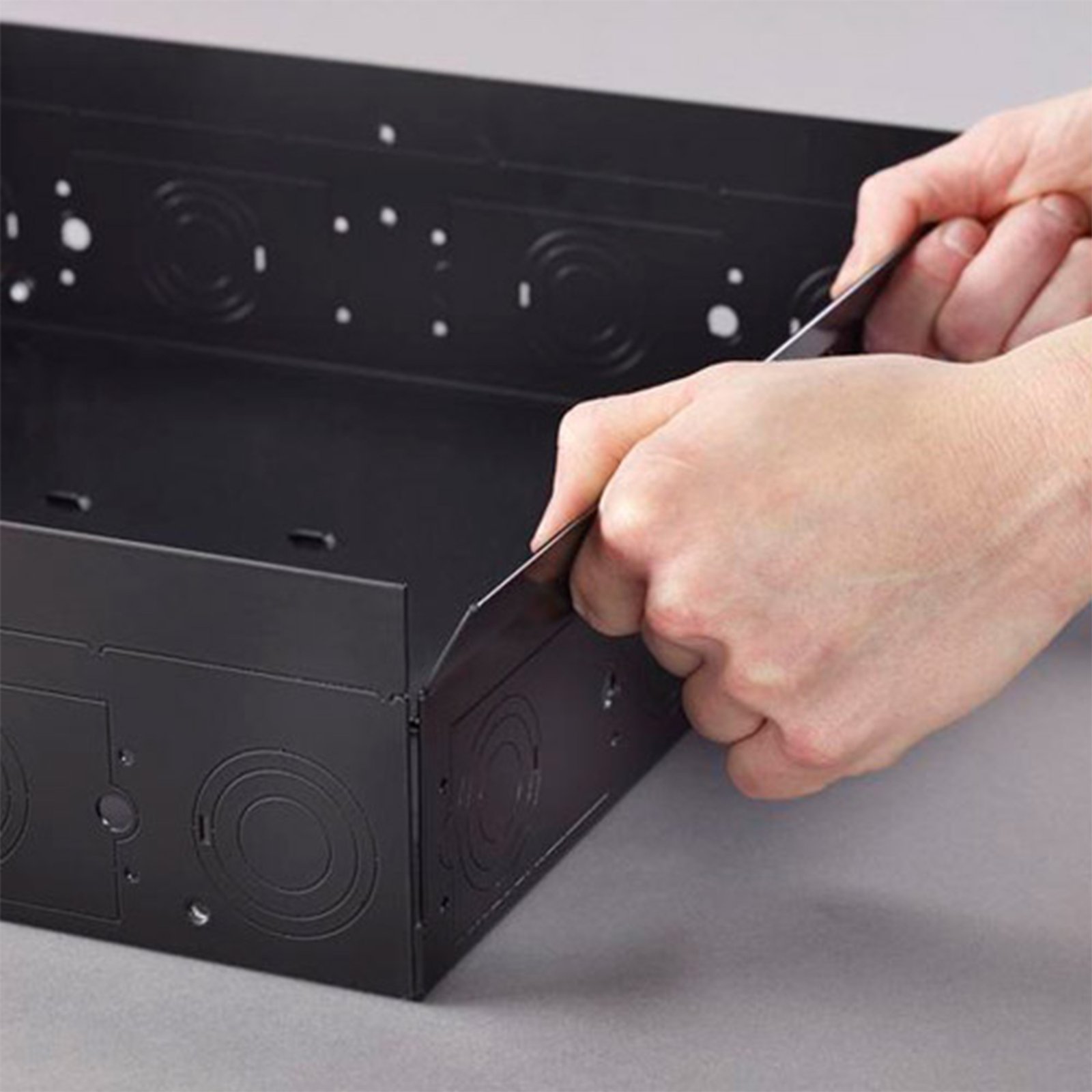

- Multiple depth break away edge allows compatibility with standard 3.5" studs 2.5" studs
- Pre and post construction installation options
- Drywall and stud mountable
- Knockouts for single gang outlets and 1-1/4", 1", ½" conduit
- Integrated universal zip tie anchor points
- Landscape/Portrait installation
- Stores a large variety of AV components
- Paintable flange to blend in any environment
- Black white color options
- Our enclosures are rated to UL2416 for use as in-wall enclosure systems.
- Surge and Filter Module
- Non-volatile spike protection with LED power indicator
- Non-sacrificial multi-stage technology
- Non-current limiting design passes full power on a regular circuit; redundant protection circuits
- Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
- Line filter reduces common and differential mode noise by up to 40 dB
- Rated for 125V~, 60Hz, 15 A
- 1875 watt maximum
- Ferrite toroid based EMI Filter
- Withstand rating of 240 VAC continuous without damage or loss of protection
