Chief TiLED® dvLED Universal 27" Wall Mount, 4 High Starter DVM27U4

The next generation of TiLED™ dvLED Wall Mounts is a universal modular system that is compatible with a multitude of interlocking dvLED panels from leading manufacturers. New floating button-capture technology and mounting hardware streamlines specifying, ordering and installation. One set of part numbers can be ordered and stocked globally to fulfill a variety of video wall installation needs.

Universally compatible

Thanks to new floating button-capture technology and universal mounting hardware, TiLED Series dvLED Universal Wall Mounts are compatible with 90% of interlocking dvLED panels from leading manufacturers such as Absen, Barco, Hikvision, INFiLED, LG, LianTronics, Philips, Planar, Samsung, Sharp/NEC, Sony, Unilumin and more.

Uneven walls No problem

TiLED dvLED Universal Mounts provide total X-Y-Z axis adjustability to compensate for wall irregularities – resulting in precision pixel alignment for a flawless uniform display. No misaligned pixels or gaps, even with dvLED displays with pixel pitches below 1 mm. Because it’s easy to fine-tune and adjust the position of each mount, installation time is greatly reduced, sometimes even from days to hours. Chief’s new independent Y-axis adjustment at each panel edge helps set a flat and level base for your direct view LED video wall. Double-depth Z-axis adjustment creates a perfectly flat video wall installation.

Easy to order

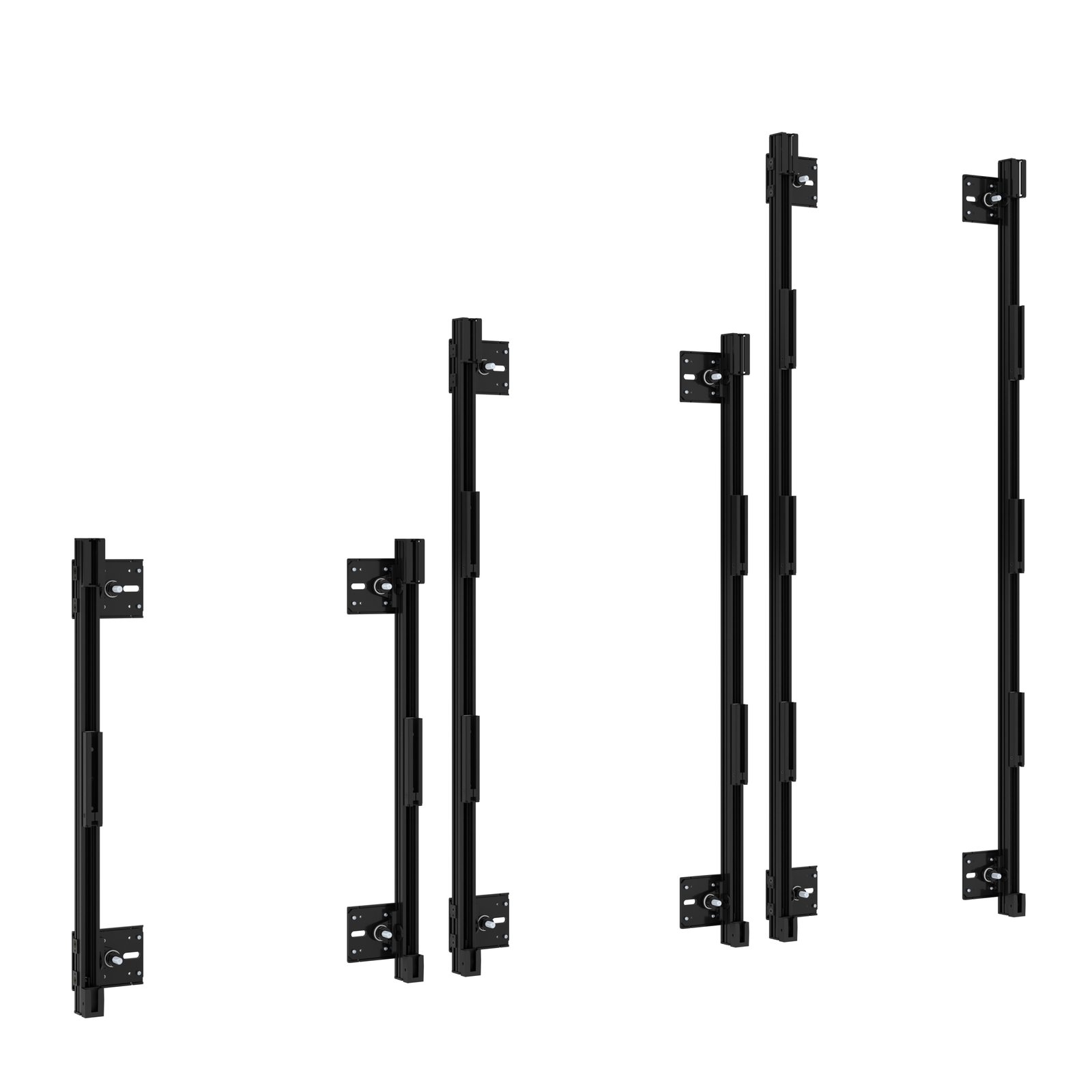

Build your video wall with a mix of starter mounts and extender mounts. Starter mounts can be ordered for 2, 3 or 4 panels high, and mixed and matched with extender mounts to achieve the exact installation size needed.
