Chief LOGITECH RALLY BAR FUSION MOUN FCALRB1

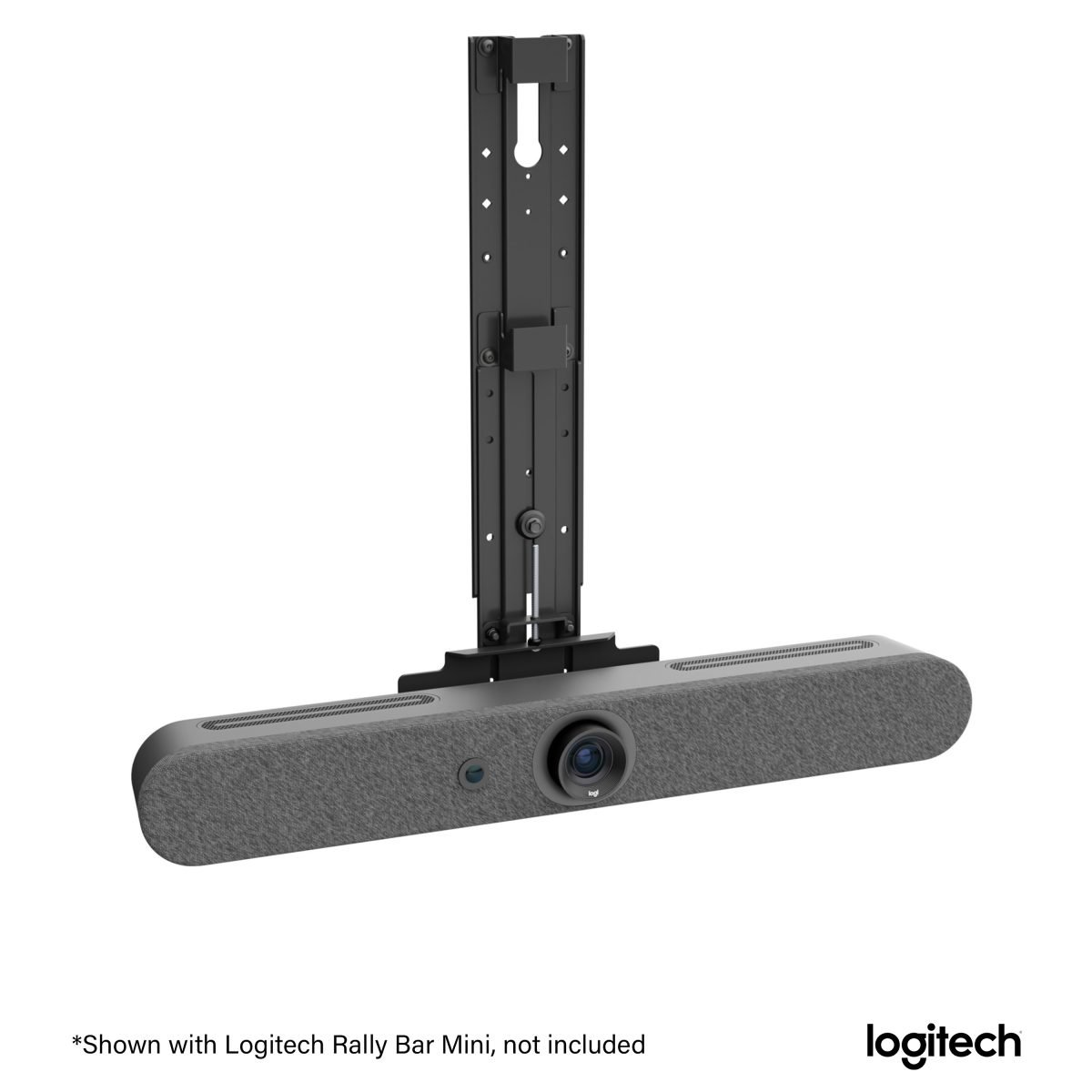

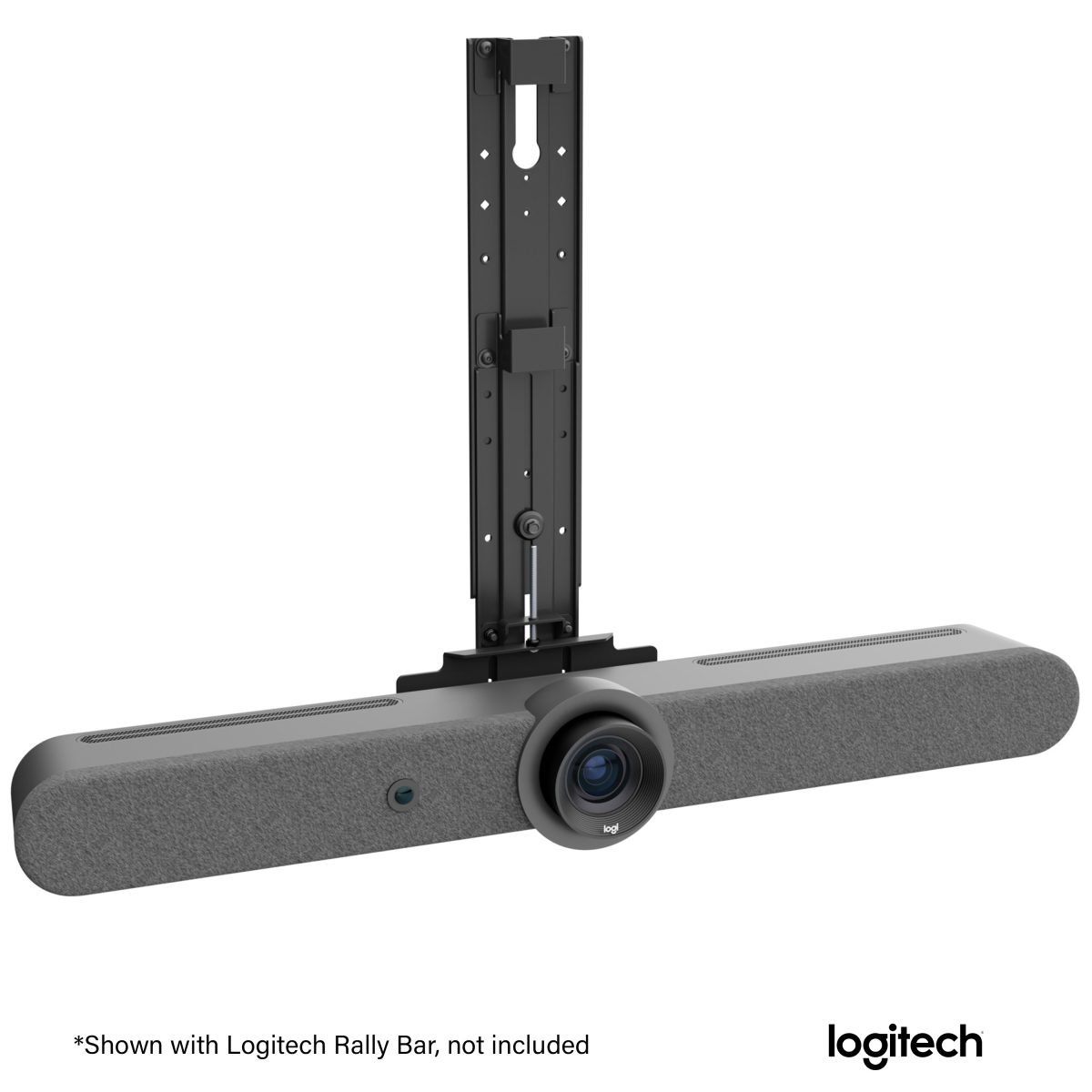

The FCALRB1 is a Fusion mount accessory for the Logitech Rally Bar, Rally Bar Mini and Rally Bar Huddle allinone video bars. The FCALRB1 can be mounted above or below typical 55 to 94 displays to best suit meeting and/or application needs 1 . The FCALRB1 is compatible with various display mounts, such as 2 : Fusion Series Wall Fixed Fusion Series Wall Tilt Mounts Fusion Series Ceiling Mounts Fusion Series Carts Fusion Series Floor Support Mounts Tempo Floor to Wall Dual Display Accessory Forum Collaboration Suite FreeStanding Display Stand Forum Collaboration Suite FloortoWall Display Stand The FCALRB1 has 7.15 182 mm total height adjustment range, with 4.92 125 mm of macroheight adjustment and 2.23 57 mm of microheight adjustment. The microadjust on the FCALRB1 allows a clean alignment of the Logitech Rally Bar, Rally Bar Mini, and Rally Bar Huddle to the bottom or top of the display after it's been installed. Keyhole slots and captive screws are featured on the L brackets to facilitate quick and easy job site assembly. 1 For display size clearance details please refer to the Technical Drawing. Dimensions and specifications dependent on application use. 2 Compatible with most Fusion Display Mounts. It is NOT compatible with Fusion XVM1U, XPD1U or XFD1U. If you have compatibility questions with other mounts, please contact your Sales Representative or Customer Care.
