D-Link
D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports
Mfr. Part# DGS-1210-28
$219.34
$208.59
| Manufacturer | D-LINK BUSINESS PRODUCTS SOLUTIONS |
|---|---|
| Manufacturer Part Number | DIS-200G-12SW |
| Barcode | 0790069433528 |
| Brand Name | D-Link |

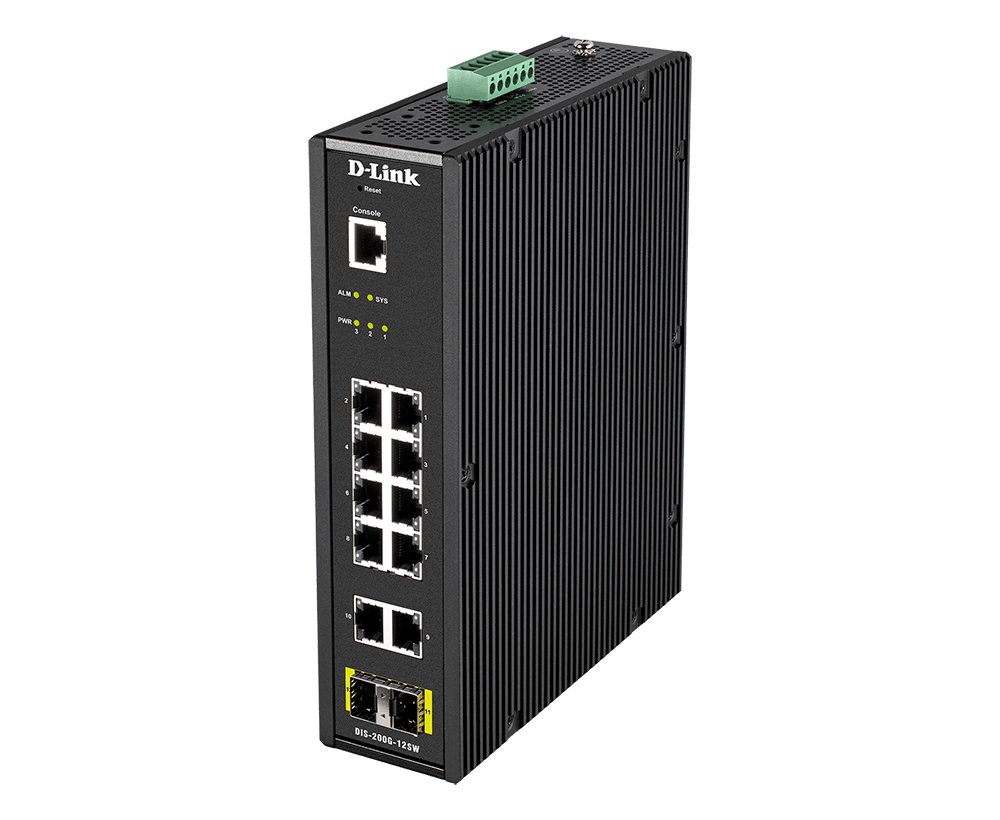

| Product Name | D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) Black |
| Mfr. Part Number | DIS-200G-12SW |
|---|---|
| Barcode | 0790069433528 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Installed SFP modules quantity | 2 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| Active link detection | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.85 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9600 |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| Authentication | Port-based authentication |
| Authentication type | RADIUS |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3, SNTP, Telnet |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | No |
| DIN rail mounting | Yes |
| Performance | |
| Mean time between failures (MTBF) | 219314 h |
| Power | |
| Power source | PoE |
| DC input voltage | 12 - 48 V |
| Power consumption (max) | 10.26 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 35.01 BTU/h |
| Weight dimensions | |
| Width | 171.2 mm |
| Depth | 53 mm |
| Height | 210 mm |
| Weight | 1.63 kg |
| Certificates | |
| Certification | CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Brand | D-Link |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
