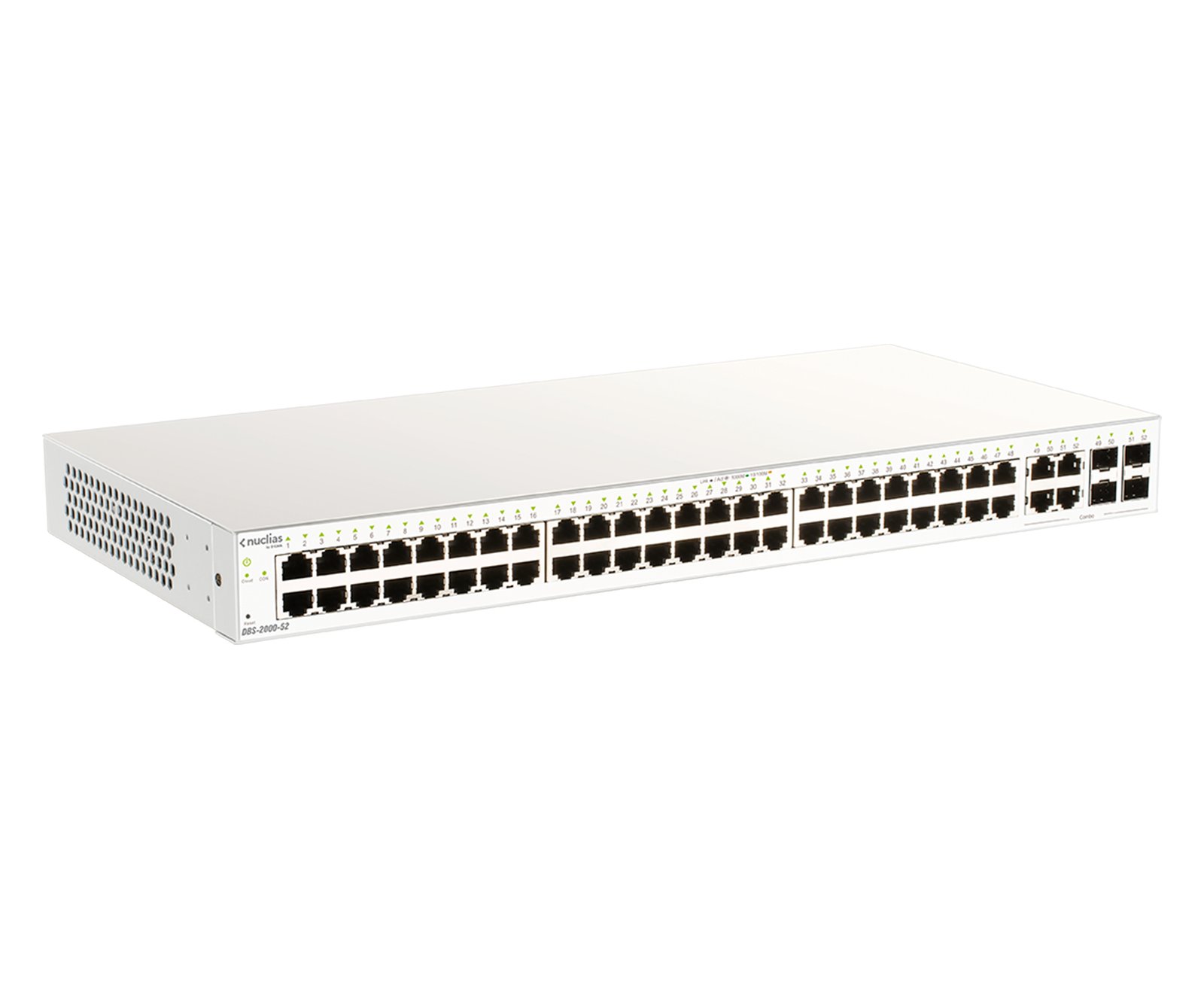

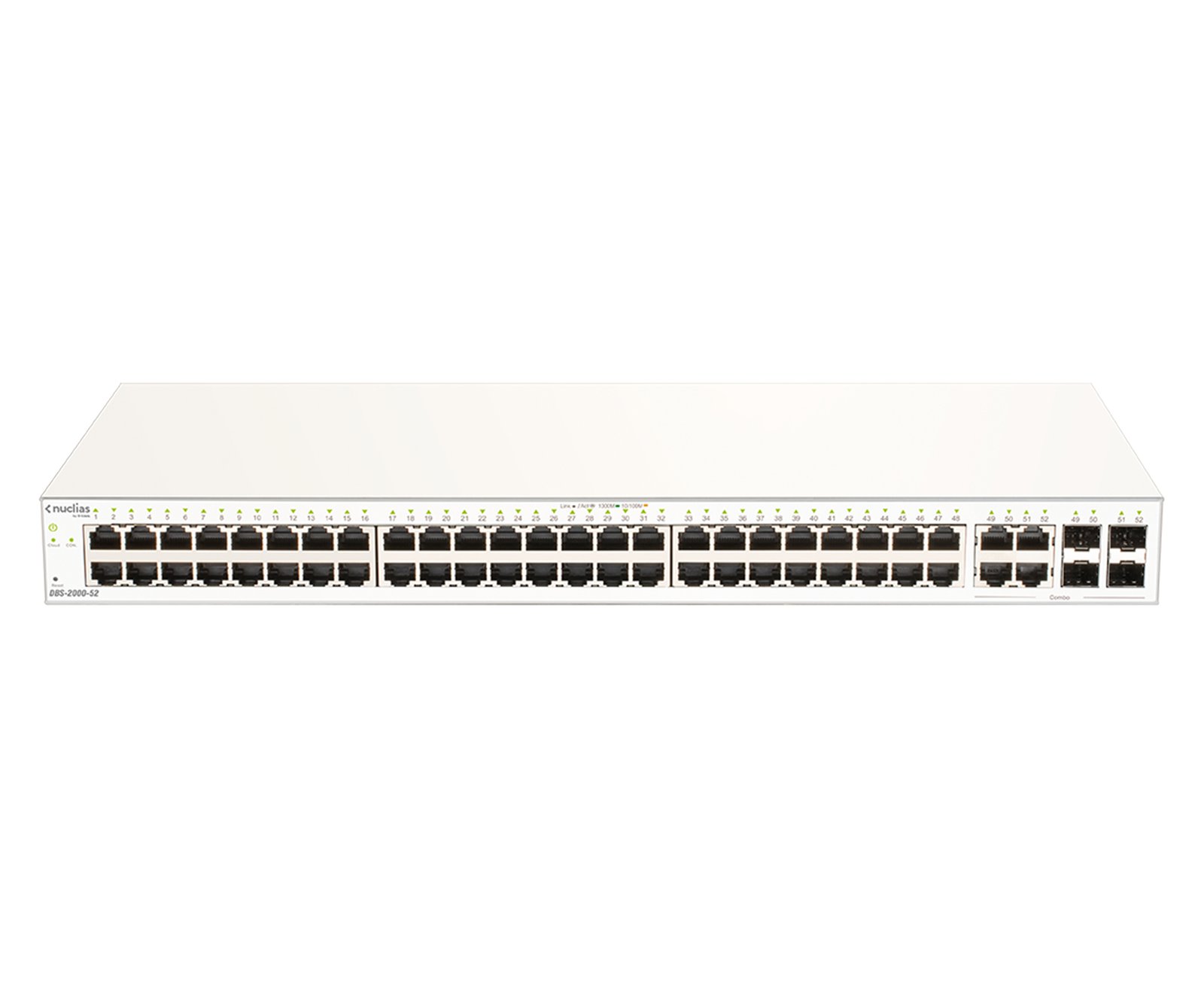

/D-Link 52-Port Gigabit Nuclias Smart Managed Switch including 4x 1G Combo Ports
Product Details
Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
Product Specifications
| Manufacturer | D-LINK CLOUD |
|---|---|
| Manufacturer Part Number | DBS-2000-52 |
| Barcode | 0790069442971 |
| Brand Name | D-Link |
| Product Name | D-Link 52-Port Gigabit Nuclias Smart Managed Switch including 4x 1G Combo Ports |
| Mfr. Part Number | DBS-2000-52 |
|---|---|
| Barcode | 0790069442971 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.3ad |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Data transmission | |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| Packet buffer memory | 12 MB |
| Security | |
| IGMP snooping | Yes |
| Security algorithms | WPA, WPA2 |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 700 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 400667 h |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 34.85 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 118.92 BTU/h |
| Weight dimensions | |
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44.5 mm |
| Weight | 3.46 kg |
| Packaging data | |
| Package width | 354 mm |
| Package depth | 552 mm |
| Package height | 98 mm |
| Package weight | 4.6 kg |
| Technical details | |
| Shipping (inner) case height | 38.3 cm |
| Shipping (inner) case width | 31.4 cm |
| Shipping (inner) case length | 56.2 cm |
| Shipping (inner) case net weight | 13.8 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 284.8 kg |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Products per pallet (air) | 54 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 128.4 cm |
| Pallet gross weight (sea) | 462.2 kg |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Products per pallet (sea) | 90 pc(s) |
| Pallet height (sea) | 2.05 m |
| Shipping (inner) case gross weight | 14.7 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | D-Link |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
