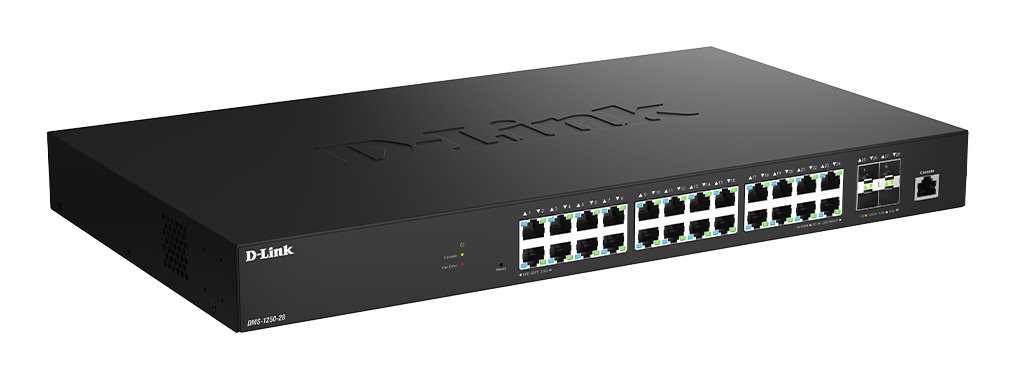

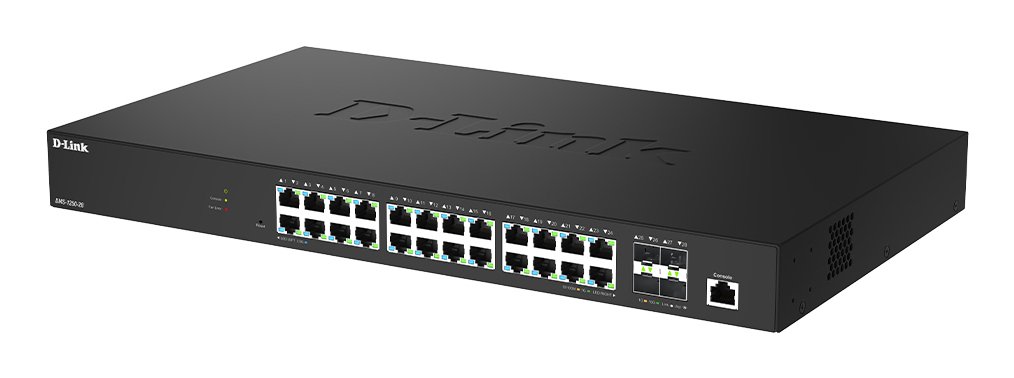

D-Link Systems 28-Port 2.5G Multi-Gigabit Smart Managed Switch with 4 x 10G SFP+ Ports DMS125028

Name: D-Link Systems 28-Port 2.5G Multi-Gigabit Smart Managed Switch with 4 x 10G SFP+ Ports DMS125028
Brand: D-Link
SKU: DMS125028
Price: 514.27 USD
Availability: InStock

Availability: In Stock Mfr. Part#: DMS125028

$529.85 Save 3% · $15.58

$514.27 USD

Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.

B2B Volume Pricing
Purchase Orders Accepted for Approved Accounts
Government Institutional Purchasing
Secure Checkout

Download brochure / datasheet

Product Details

The DMS-1250 Series is D-Link’s newest family of Multi-Gigabit Ethernet smart switches. It provides multi-Gigabit connectivity, Power over Ethernet (PoE) capability, multiple management interfaces and advanced layer 2 features. The DMS-1250 Series provides a high-performace solution to expand your network and adapts to your business needs.

Highlights

Multi-Gigabit Ethernet Connection Delivers fast 2.5 Gbps performance using existing cabling, suitable for Wi-Fi 6 network deployments

10G Uplink Connections
Two 10-Gigabit Ethernet or SFP+ uplink ports allow for additional connections to a storage device or uplink network

Power over Ethernet
PoE+ (30W) or PoE++ (90W) options to simultaneously power multiple types of PoE devices with various power draw requirements

Product Specifications

Manufacturer	D-Link Systems
Manufacturer Part Number	DMS125028
Barcode	790069802669
Brand Name	D-Link
Product Name	D-Link 28-Port 2.5G Multi-Gigabit Smart Managed Switch with 4 x 10G SFP+ Ports

Management features
Mfr. Part Number	DMS125028
Barcode	790069802669
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
Ports interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	4
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Active link detection	Yes
VLAN support	Yes
Number of VLANs	4096
Data transmission
Switching capacity	200 Gbit/s
Forwarding rate	148.81 Mpps
MAC address table	16000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	16 MB
Security
DHCP features	DHCP server, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
Loop protection	Yes
Password protection	Yes
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)
Performance
Internal memory	512 MB
Flash memory	32 MB
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	39.73 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight dimensions
Width	440 mm
Depth	250 mm
Height	44 mm
Weight	3.47 kg
Brand	D-Link
Availability	In Stock
Price Currency	USD
Category	Transceivers Modules
