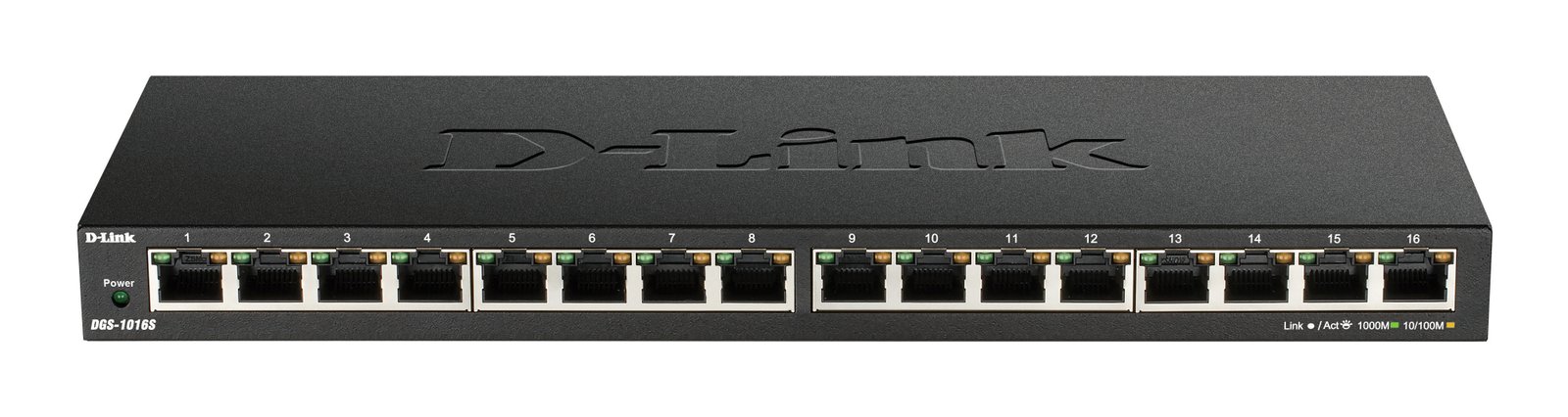

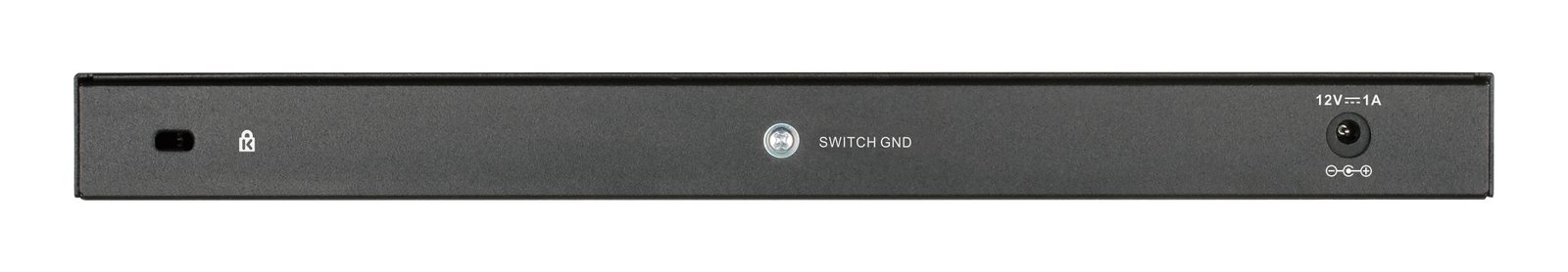

/D-Link DGS-1016S Unmanaged Gigabit Ethernet (10/100/1000) Black
Product Details
Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall
High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming
Silent Operation
Fanless design means the switch is virtually silent when in use
Energy Efficient
Integrated energy-saving technology to reduce power usage automatically
Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.
Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.
Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.
Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
Allowing the switch to be placed on the desktop or mounted on the wall
High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming
Silent Operation
Fanless design means the switch is virtually silent when in use
Energy Efficient
Integrated energy-saving technology to reduce power usage automatically
Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.
Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.
Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.
Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
Product Specifications
| Manufacturer | D-Link Systems |
|---|---|
| Manufacturer Part Number | DGS1016S |
| Barcode | 790069455261 |
| Brand Name | D-Link |
| Product Model | DGS-1016S |
| Product Name | D-Link DGS-1016S Unmanaged Gigabit Ethernet (10/100/1000) Black |
| Marketing Information |
16-Port Gigabit Unmanaged Metal Desktop
|
| Packaged Quantity | 1 |
| Mfr. Part Number | DGS1016S |
|---|---|
| Barcode | 790069455261 |
| Product Model | DGS-1016S |
| Packaged Quantity | 1 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3az, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable length detection | Yes |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.512 MB |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 564658 h |
| Power | |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 8.89 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 30.32 BTU/h |
| Weight dimensions | |
| Width | 280 mm |
| Depth | 110 mm |
| Height | 25 mm |
| Weight | 770 g |
| Certificates | |
| Certification | CE, FCC, ICES 003, RCM |
| Brand | D-Link |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
