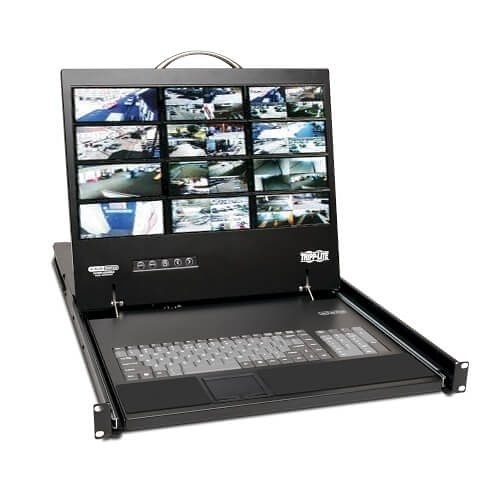

Eaton 16 Port Cat5 IP KVM Switch 19" B070-016-19

Tripp Lite's B070-016-19 NetCommander Rackmount Console KVM switch is a cost effective and highly flexible system for controlling up to 256 computers from a single 19 display console. This console can be cascaded with Tripp Lites stand-alone B072 NetCommander series KVM switches. Switching between attached servers can be accomplished with On Screen Display menu, or Hot-Key. Utilizing Tripp Lites B078-101 series server interface units, KVM cabling is kept to a minimum and extremely manageable, with the use of Cat5/Cat6 patch cables. Servers can be located up to 100ft away from the switch. The B070-016-19 Console KVM switch supports a wide variety of software platforms, including: MAC, DOS, Windows 95/98/SE/NT/2000/ME/XP/Server2003/Vista, Linux, Unix, SUN (USB),and BSD. Password feature provides additional security to prevent unauthorized access to attached computers. All hardware included for 4-post racking, and designed for easy, one person installation. Fits into any rack from 29" to 42" deep. 2-post rackmounting available using Tripp Lite B019-000, 2-post rackmount kit. 16-port Cat5 KVM Switch with built-in 19" Monitor, Keyboard, and Mouse 1600 x 1200 @75Hz Resolution Connect and control up to 256 computers locally or remotely Standard EIA 19" rackmounting Use in racks from 29" to 42" deep OSD menu for intuitive operation and easy control USB and PS/2 mouse/keyboard support Password protection and auto-logout features Firmware upgradeable Hot-swappable: disconnect and reconnect USB computers w/o reboot Easy port selection via hot keys, or On Screen Display Rugged ball bearing slides offer long life usage Uses readily availabe Cat5/Cat6 patch cables up to 100ft IP upgradeable using Tripp Lite B051-000 IP Remote Unit 1 Year Ltd Warranty System Requirements PS/2 or USB computer / server (1) B078-101-PS2 (PS/2) or B078-101-USB (USB) Server Interface Unit is required for each connected computer/server Package Includes B070-016-19 16-port KVM 19" Console Power Cord Serial Firmware Upgrade Cable KVM/Console Jumper cable Owners manual CD
