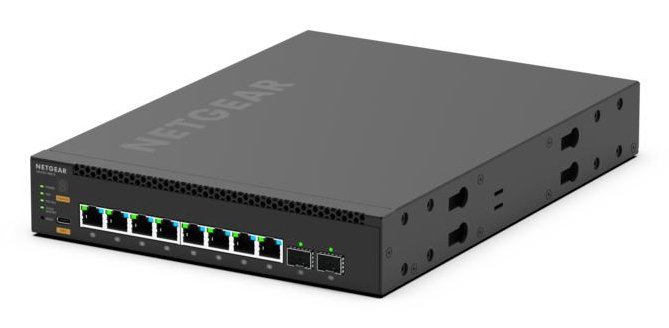

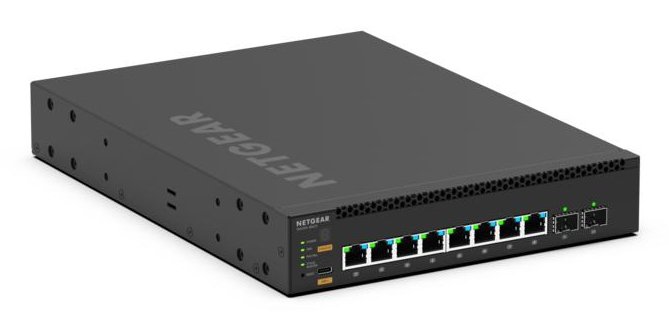

NETGEAR MSM4310 Managed L3 2.5G Ethernet (100/1000/2500) Power over (PoE) 1U Black MSM4310100NES

Name: NETGEAR MSM4310 Managed L3 2.5G Ethernet (100/1000/2500) Power over (PoE) 1U Black MSM4310100NES
Brand: NETGEAR
SKU: MSM4310100NES
Price: 2650.51 USD
Availability: InStock

Availability: In Stock Mfr. Part#: MSM4310100NES

$2,730.83 Save 3% · $80.32

$2,650.51 USD

Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.

B2B Volume Pricing
Purchase Orders Accepted for Approved Accounts
Government Institutional Purchasing
Secure Checkout

Download brochure / datasheet

Product Details

POWER AND THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

PRO AV RESOURCES
All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

Product Specifications

Manufacturer	NETGEAR
Manufacturer Part Number	MSM4310100NES
Barcode	606449172911
Brand Name	NETGEAR
Product Name	NETGEAR MSM4310 Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

Management features
Mfr. Part Number	MSM4310100NES
Barcode	606449172911
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Ports interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	8
10G Ethernet (copper) ports quantity	8
SFP28 ports quantity	2
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
10G support	No
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
6to4 tunnel	Yes
IPv4 routes	512
IPv6 routes	256
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs	4093
Data transmission
Switching capacity	140 Gbit/s
Throughput	372 Mpps
MAC address table	16000 entries
Store-and-forward	Yes
Latency (10 Gbps)	2.27 µs
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	32 MB
Security
DHCP features	DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) egress	1023
Access Control List (ACL) ingress	511
IGMP snooping	Yes
IGMP proxy	Yes
MAC address filtering	Yes
Static port security	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication
Root protection	Yes
Password protection	Yes
DoS attack prevention	Yes
Authentication type	RADIUS, TACACS+
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
Management protocols	SNMP V1, V2, V3
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Airflow direction	Front-to-back airflow
Performance
Built-in processor	Yes
Processor model	ARM Cortex-A57
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	2048 MB
Flash memory	512 MB
sFlow	Yes
Power
Power source	AC
Power supply included	Yes
Power consumption (typical)	133.5 W
Power consumption (max)	351.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	48
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	3314 W
Other features
Power supply	550 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Brand	NETGEAR
Availability	In Stock
Price Currency	USD
Category	Network Switches
