StarTech.com 10-Port USB 3.0 Hub with Power Adapter - Metal Industrial USB-A ESD 350W Surge
Availability: In StockMfr. Part#: HB30A10AMEModel: HB30A10AME
$214.01Save 5% · $10.49
$203.52USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 571-485-8682 for volume pricing.
Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps
This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 10 connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need It Most

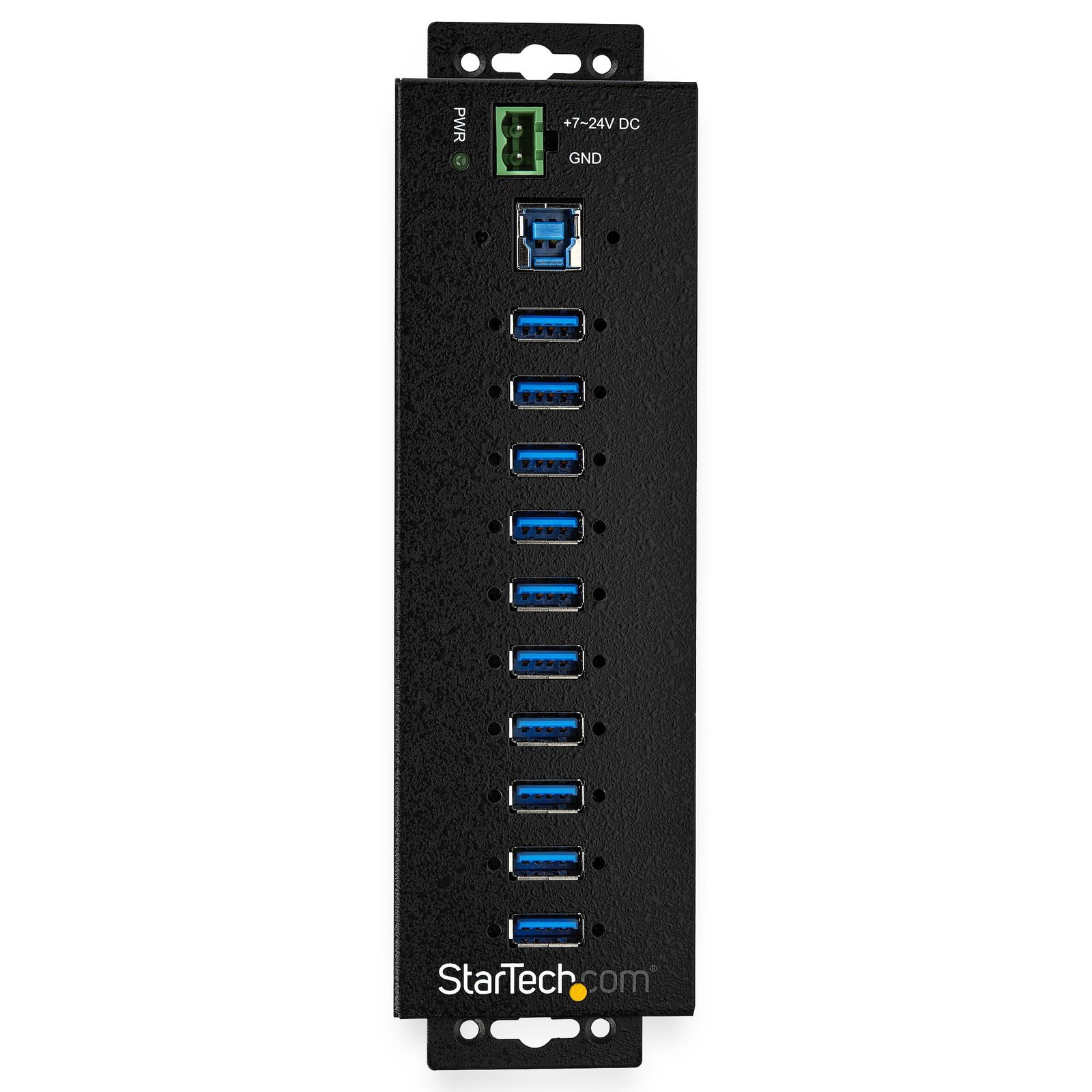

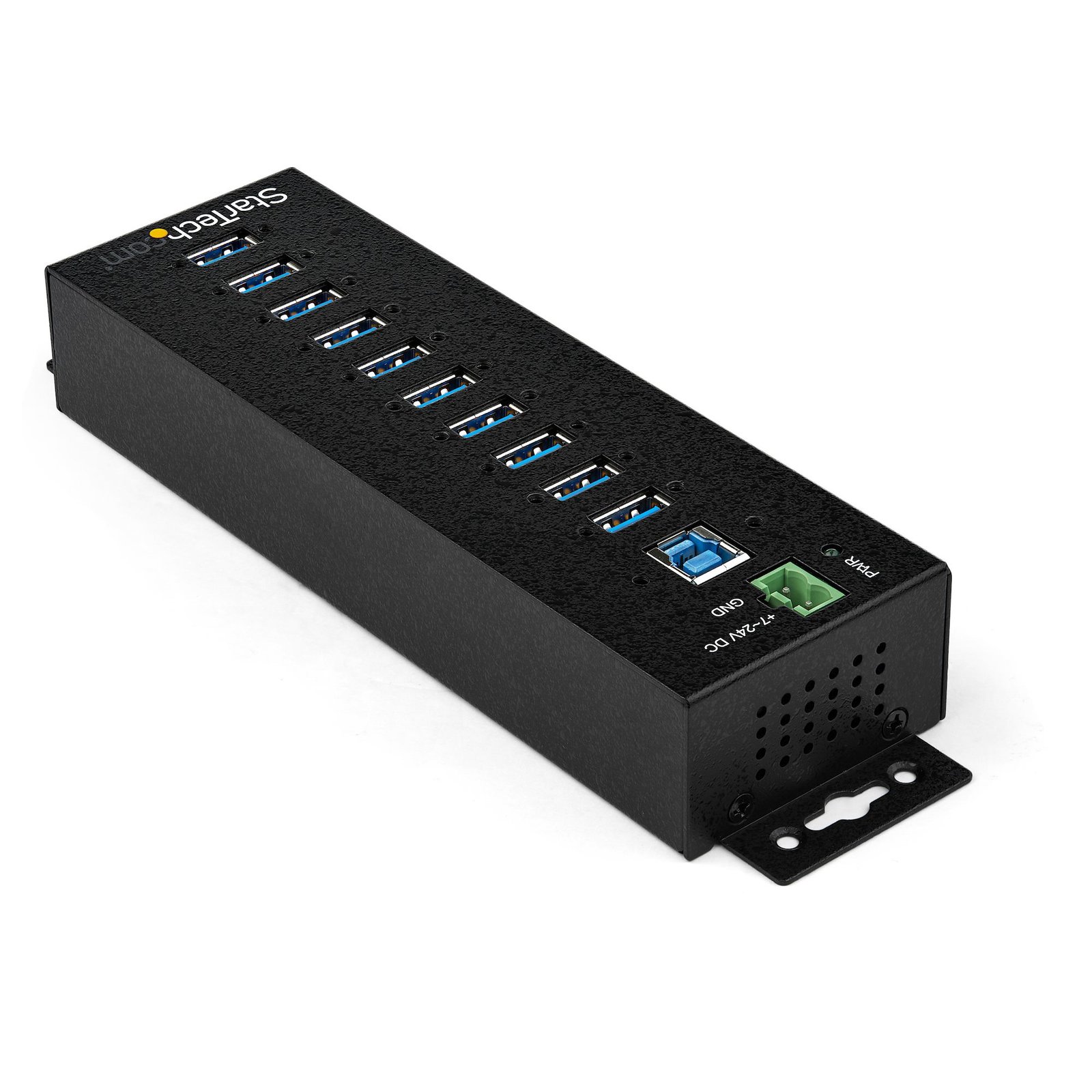

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.
It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.
The HB30A10AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
HB30A10AME
Barcode
0065030881869
Brand Name
StarTech.com
Product Model
HB30A10AME
Product Name
StarTech.com 10-Port USB 3.0 Hub with Power Adapter - Metal Industrial USB-A Hub with ESD 350W Surge Protection - Din/Wall/Desk Mountable - High Speed USB 3.2 Gen 1 (5Gbps) Hub - TAA
Marketing Information
Protects your connected devices with 15kV Air and 8kV Contact ESD protection Surge protection of 350W on the downstream and upstream USB ports Mount industrial USB hub where required with built in mounting brackets or included DIN rails Offers flexible, wide range power inputs with a 7 48V DC terminal block and included external power adapter
Packaged Quantity
1
Mfr. Part Number
HB30A10AME
Barcode
0065030881869
Product Model
HB30A10AME
Packaged Quantity
1
Ports interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
10
Ports quantity
10
Card reader integrated
No
Terminal block port
Yes
DC-in jack
Yes
Features
Data transfer rate
5000 Mbit/s
Product colour
Black
Surge protection
Yes
LED indicators
Power
Plug and Play
Yes
Certification
RoHS, REACH, CE, FCC, TAA
Network
UASP support
Yes
Power
Power supply type
AC
Power consumption (typical)
65 W
Input voltage
100 - 240 V
Input current
1.4 A
Output voltage
20 V
Output current
3.25 A
Weight dimensions
Width
55 mm
Depth
198 mm
Height
30 mm
Weight
352 g
Packaging data
Quantity per pack
1 pc(s)
Package width
190 mm
Package depth
292 mm
Package height
71 mm
Package weight
1.4 kg
Packaging content
AC adapter included
Yes
Included power plug types
ANZ, EU, JP, NA, UK
Cables included
USB
Quick installation guide
Yes
DIN rail kit included
Yes
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Performance
Mean time between failures (MTBF)
126106 h
Logistics data
Master (outer) case width
526 mm
Master (outer) case length
403 mm
Master (outer) case height
329 mm
Products per master (outer) case
14 pc(s)
Harmonized System (HS) code
84719000
Other features
Chipset
Genesys Logic - GL3523
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Licenses Renewals
