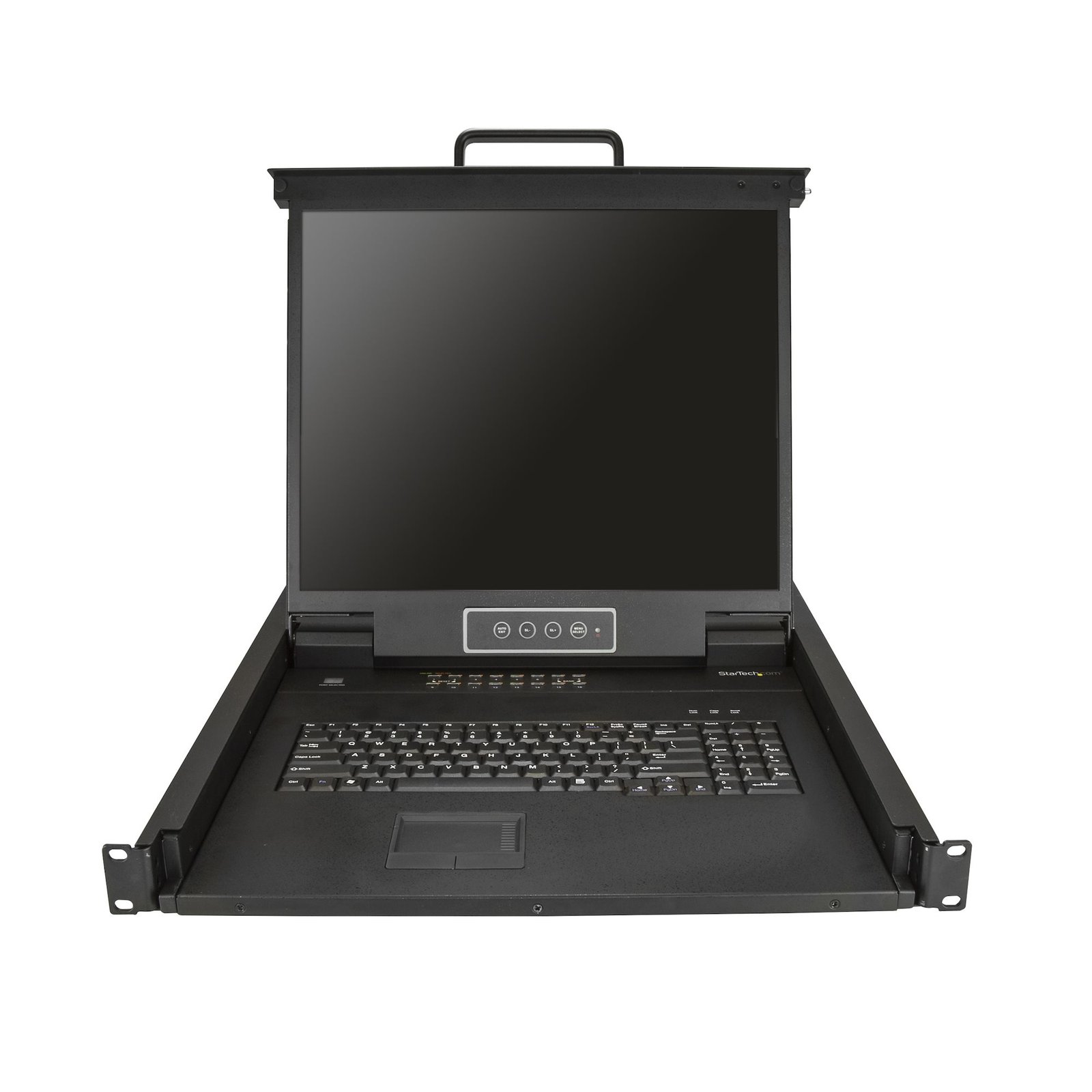

Control your server or KVM switch from a centralized rack-mount KVM console
This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.
Clutter-free monitoring
The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.
The RKCONS1916K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
RKCONS1916K
Barcode
0065030872539
Brand Name
StarTech.com
Product Model
RKCONS1916K
Product Name
StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
Marketing Information
Control your server or KVM switch from a centralized rackmount KVM console - Reduce your server room clutter with a 1U rack-mount design - Large 19in screen allows you to run multiple applications at one time / 16-Port KVM / 16 port KVM console / Rack mount console / Rackmount KVM console / VGA KVM / 16 port KVM switch / Rack console / Rackmount KVM / Rack mount KVM / Rackmount console / Rackmount KVM switch / KVM switch VGA / LCD with KVM / 1U KVM console / 19 LCD screen / Rack KVM console
Packaged Quantity
1
Mfr. Part Number
RKCONS1916K
Barcode
0065030872539
Product Model
RKCONS1916K
Packaged Quantity
1
Display
Display diagonal
48.3 cm (19")
Display resolution
1280 x 1024 pixels
Display
TFT LCD
Display brightness
250 cd/m²
Contrast ratio (typical)
1000:1
Pixel pitch
0.264 x 0.264 mm
Display type
LCD
Display number of colours
16.78 million colours
Colour depth
8 bit
Technical details
Mean time between failures (MTBF)
50000 h
Product colour
Black
Operating relative humidity (H-H)
10 - 80%
Audio support
No
Daisy chain
No
Key lock
No
Number of computers controlled
16
Compliance certificates
RoHS
Rack capacity
1U
Ports interfaces
VGA (D-Sub) ports quantity
18
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
USB 2.0 Type-A ports quantity
2
Keyboard
Built-in touchpad
Yes
Certificates
Certification
PSE, FCC, UL, CE, REACH
Power
Power consumption (typical)
23 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight dimensions
Width
483 mm
Height
43 mm
Depth
643 mm
Weight
13.5 kg
Mounting depth (min)
60.5 cm
Mounting depth (max)
89 cm
Packaging data
Package weight
21 kg
Package width
615 mm
Package depth
765 mm
Package height
190 mm
Packaging content
Cables included
KVM
Screws included
Yes
Number of screws
8
Mounting brackets included
Yes
Cage nuts included
Yes
Number of cage nuts
8
Included power plug types
ANZ, EU, JP, NA, UK
Quick installation guide
Yes
Logistics data
Master (outer) case width
615 mm
Master (outer) case length
765 mm
Master (outer) case height
190 mm
Products per master (outer) case
1 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Monitors Displays
