StarTech.com
StarTech.com 6ft (1.8m) Dual-Display KVM Cable, HDMI and DisplayPort to DVI and DP, USB 2.0, 3.5mm, Universal Combo Cable for KVM Switches, TAA
Mfr. Part# SKDVI2HDDP06MMK
$93.34
$88.76
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | ST124HDVW |
| Barcode | 0065030883603 |
| Brand Name | StarTech.com |
| Product Model | ST124HDVW |

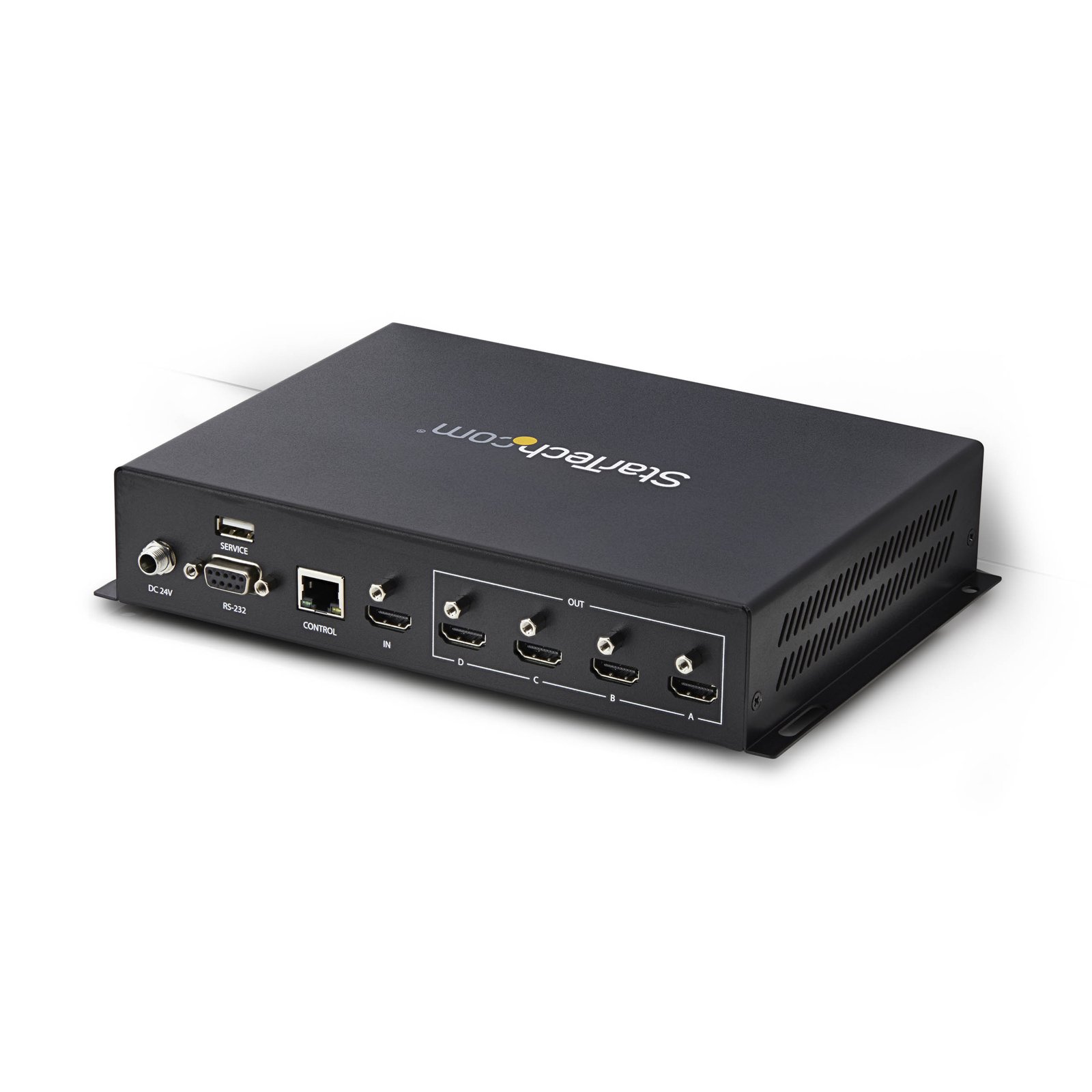

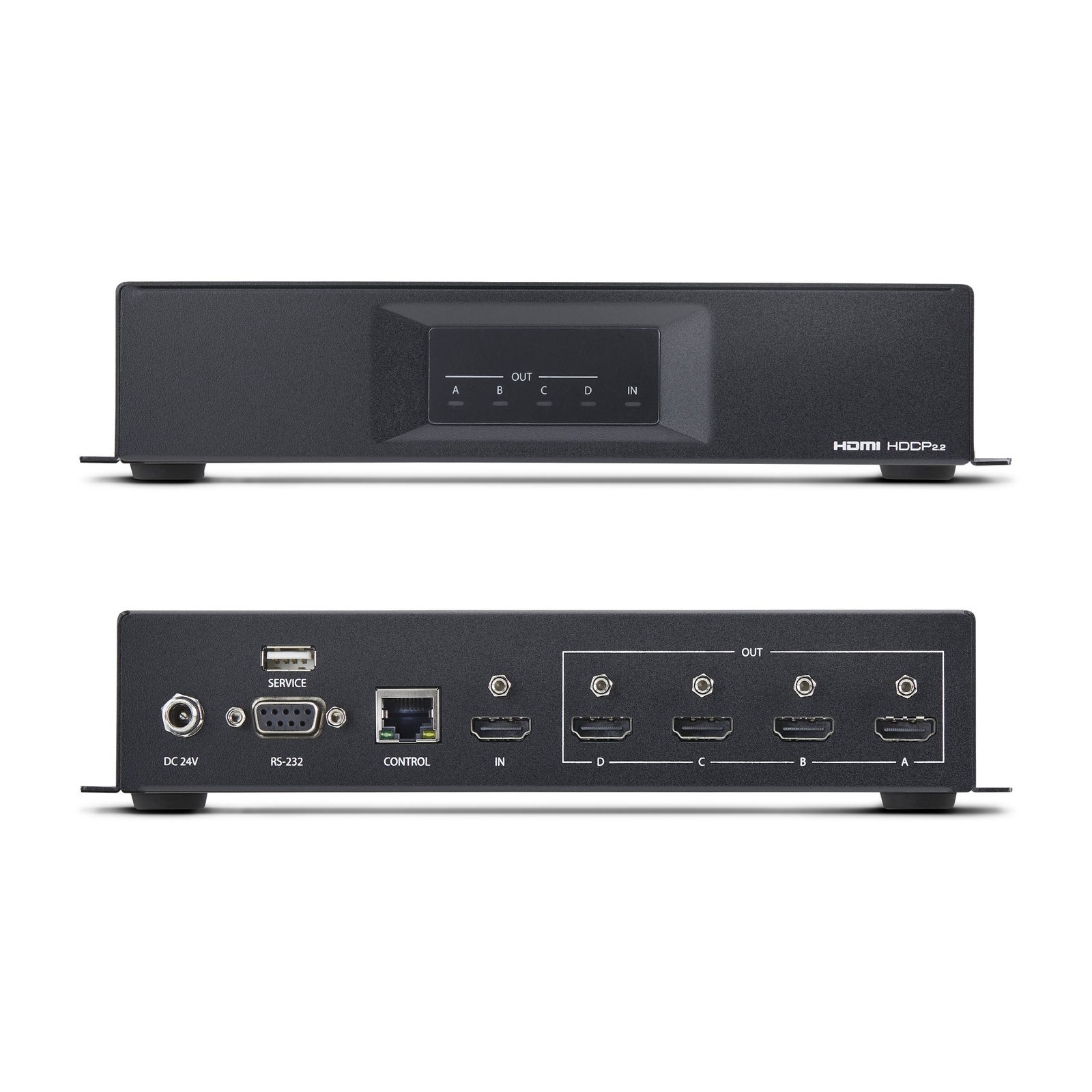

| Product Name | StarTech.com 2x2 HDMI Video Wall Controller - 4K 60Hz HDMI 2.0 Video Input to 4x 1080p Output - Video Wall Processor for Multi Screen Display - Video Wall Splitter - RS232/Ethernet Control - TAA |
| Marketing Information |
This 4K 60Hz HDMI video wall processor offers full support for HDMI 2.0, including true 4K resolution at 60Hz - The HDMI video wall splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays - Simply connect your source and 4 displays and the 4k video wall splitter will automatically create a video wall at the appropriate resolution with EDID emulation - Use RS-232 serial control to remotely configure the HDMI multiplexer
|
| Packaged Quantity | 1 |
| Mfr. Part Number | ST124HDVW |
|---|---|
| Barcode | 0065030883603 |
| Product Model | ST124HDVW |
| Packaged Quantity | 1 |
| Ports interfaces | |
| Video port type | HDMI |
| HDMI version | 2.0 |
| HDMI in | 1 |
| Number of HDMI outputs | 4 |
| USB port type | USB Type-A |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
| Features | |
| Material | Metal |
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 4096 x 2160 |
| LED indicators | Yes |
| Audio output channels | 7.1 channels |
| HDCP version | 2.2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC adapter input current | 1 A |
| AC adapter output voltage | 24 V |
| AC adapter output current | 1.25 A |
| Certificates | |
| Certification | CE, FCC, REACH |
| Weight dimensions | |
| Width | 165 mm |
| Depth | 230 mm |
| Height | 45 mm |
| Weight | 1 kg |
| Packaging data | |
| Package width | 263 mm |
| Package depth | 302 mm |
| Package height | 70 mm |
| Package weight | 1.6 kg |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 318 mm |
| Master (outer) case length | 550 mm |
| Master (outer) case height | 380 mm |
| Products per master (outer) case | 10 pc(s) |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
No reviews yet. If you have bought this, yours would be the first.
