Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports

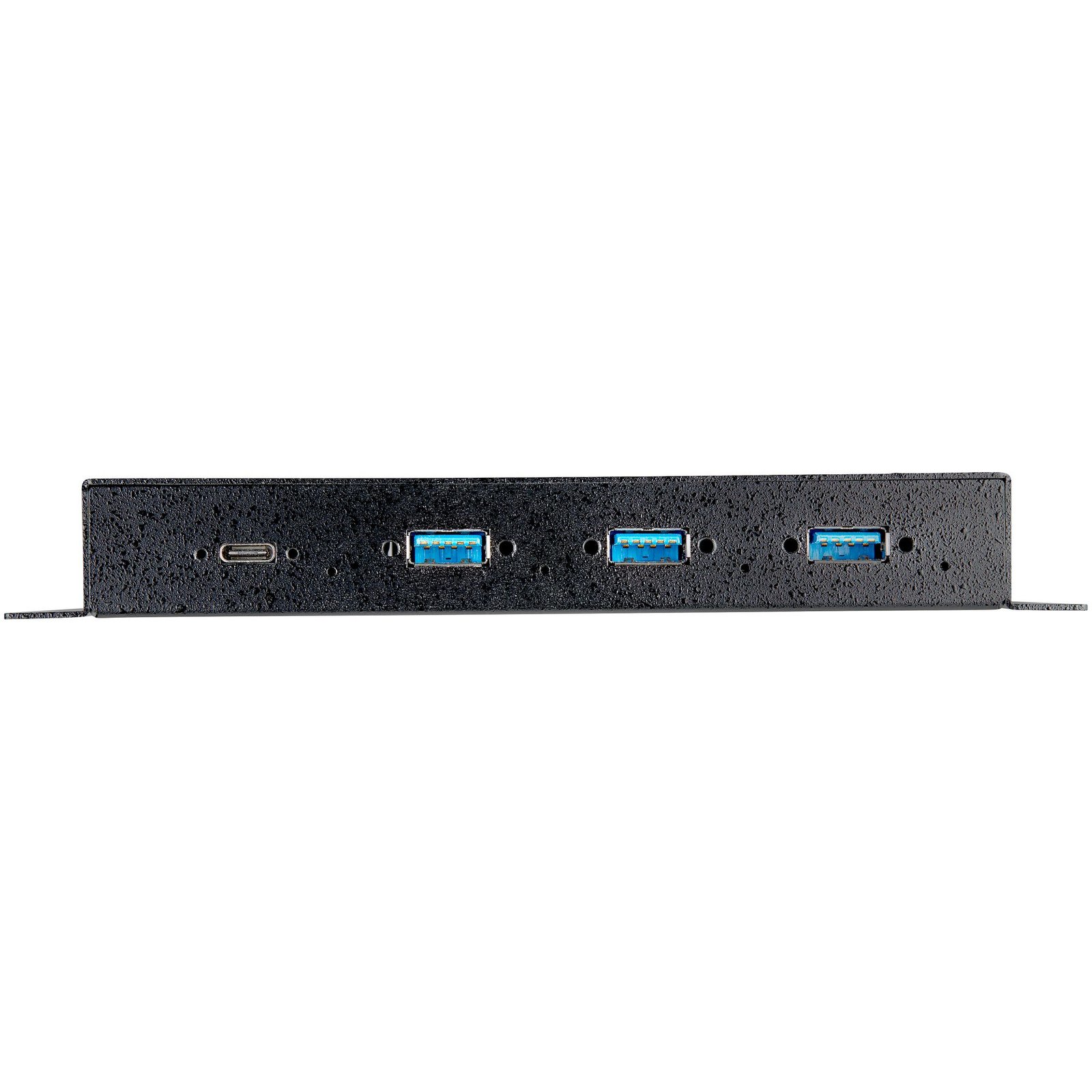

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features three USB-A and one USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for commercial environments.
Expands the Connectivity of Your Computer for Industrial Applications
With this USB-C hub you can connect three USB-A devices, and one USB-C device, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).
Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).
Powers and Charges Your Connected Devices

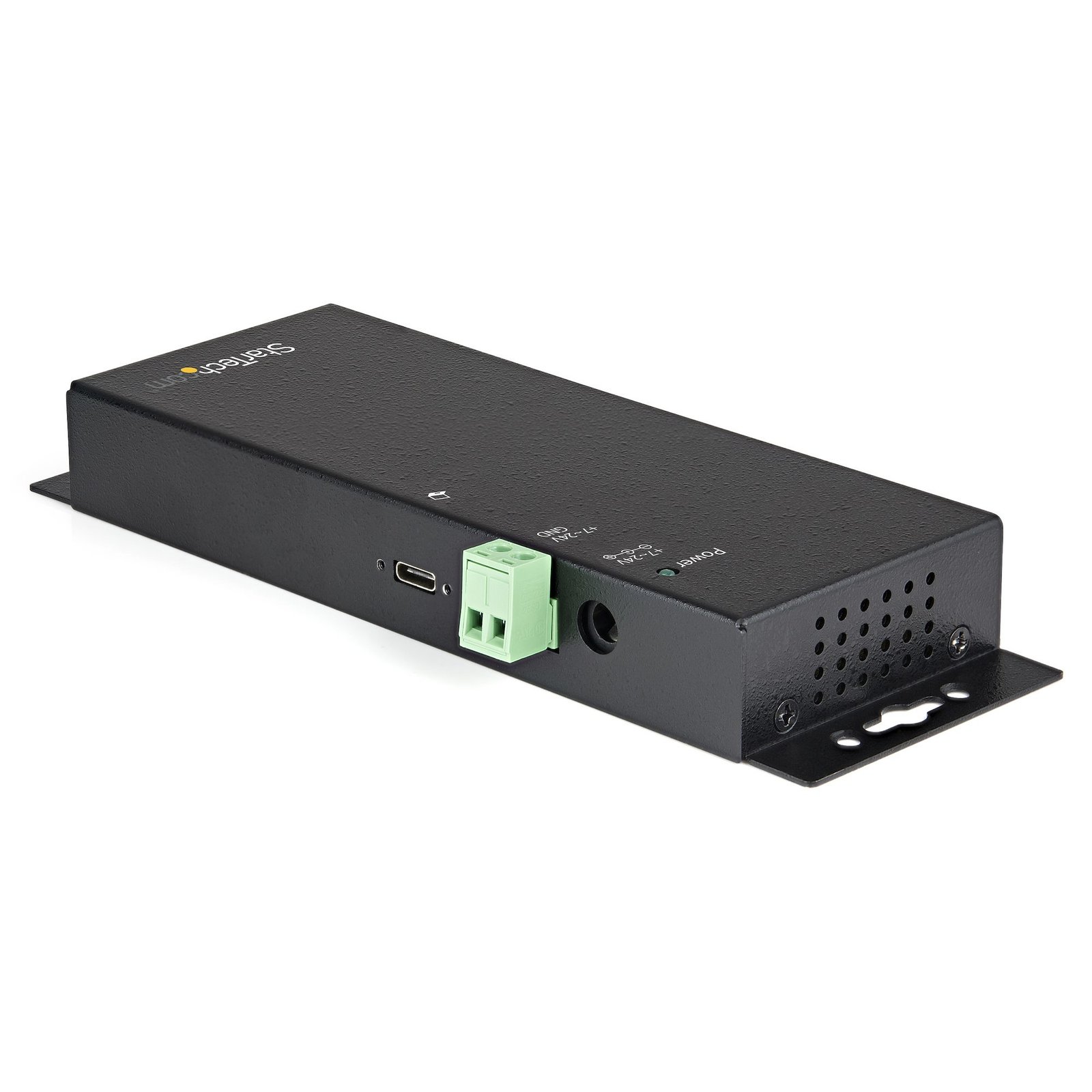

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.
Ideal for Use in Industrial Environments
This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge protection, with 350W surge protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection and a 3.3 ft (1m) USB-C USB-A host cables is included that features a locking screw.
Wide Device Compatibility
The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.
HB31C3A1CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
HB31C3A1CME
Barcode
0065030882408
Brand Name
StarTech.com
Product Model
HB31C3A1CME
Product Name
StarTech.com 4-Port USB C Hub 10Gbps - Metal Industrial USB Type-C Hub w/ 3xUSB-A 1xUSB-C - ESD Surge Protection - USB-C or USB-A Host - Self-Powered Mountable USB 3.2 Gen 2 Hub - TAA
Marketing Information
Industrial 4-Port USB-C hub w/ SuperSpeed 10Gbps (USB 3.1/3.2 Gen 2), 3x USB-A/1x USB-C - Metal USB Type-C hub with 15kV Air/8kV Contact ESD, 350W surge protection - Charging w/BC 1.2 for 30W total on all ports - All USB screw-lock ports prevent accidental removal, 3.3 ft USB-C and USB-A screw-lock host cables incl - Wall/surface mountable - Rugged self-powered hub w/ 36W power adapter or terminal block connector (7-24V DC input).
Packaged Quantity
1
Mfr. Part Number
HB31C3A1CME
Barcode
0065030882408
Product Model
HB31C3A1CME
Packaged Quantity
1
Ports interfaces
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ports quantity
4
Card reader integrated
No
Terminal block port
Yes
DC-in jack
Yes
Features
Data transfer rate
10000 Mbit/s
Product colour
Black
Housing material
Steel
Surge protection
Yes
LED indicators
Link, Power
Network
UASP support
Yes
Power
Power consumption (typical)
36 W
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power plug type
Type M
Weight dimensions
Width
59.6 mm
Depth
152 mm
Height
23.5 mm
Weight
281 g
Packaging data
Quantity per pack
1 pc(s)
Package width
295 mm
Package depth
192 mm
Package height
72 mm
Package weight
1.2 kg
Packaging content
Included power plug types
ANZ, EU, JP, UK, US
Cables included
USB Type-A to USB Type-C, USB Type-C to USB Type-C
Manual
Yes
Terminal block included
Yes
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
0 - 85%
Logistics data
Master (outer) case width
514 mm
Master (outer) case length
426 mm
Master (outer) case height
321 mm
Products per master (outer) case
14 pc(s)
Harmonized System (HS) code
84719000
Technical details
Compliance certificates
CE, RoHS
Other features
Chipset
VIA/VLI - VL822
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Licenses Renewals
