StarTech.com
StarTech.com 6ft (1.8m) Dual-Display KVM Cable, HDMI and DisplayPort to DVI and DP, USB 2.0, 3.5mm, Universal Combo Cable for KVM Switches, TAA
Mfr. Part# SKDVI2HDDP06MMK
$93.34
$88.76
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | VS424HD4K60 |
| Barcode | 0065030880800 |
| Brand Name | StarTech.com |
| Product Model | VS424HD4K60 |
| Product Name | StarTech.com 4x4 HDMI Matrix Switch with Audio and Ethernet Control - 4K 60Hz - TAA |
| Marketing Information |
Share and switch four distinct HDMI AV signals between four separate displays in a matrix configuration - Matrix switch is equipped with a WebGUI interface which enables users to control the HDMI switcher remotely- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz -EDID management support enables greater compatibility with your video source and display -Designed with space in mind, the switch box features a rack-mounting or standalone option
|
| Packaged Quantity | 1 |
| Mfr. Part Number | VS424HD4K60 |
|---|---|
| Barcode | 0065030880800 |
| Product Model | VS424HD4K60 |
| Packaged Quantity | 1 |
| Features | |
| Product type | AV matrix switcher |
| Maximum resolution | 4096 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| Audio channels | 7.1 |
| Supported resolutions | 4096 x 2160 3840 x 2160 1920 x 1200 |
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |

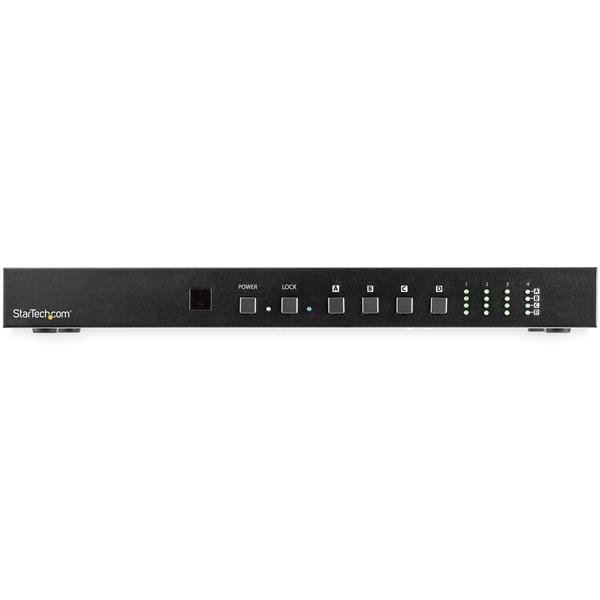

| LED indicators | Activity, Power |
| Remote control included | Yes |
| Certification | TAA, CE, FCC, REACH |
| Display | |
| Built-in display | No |

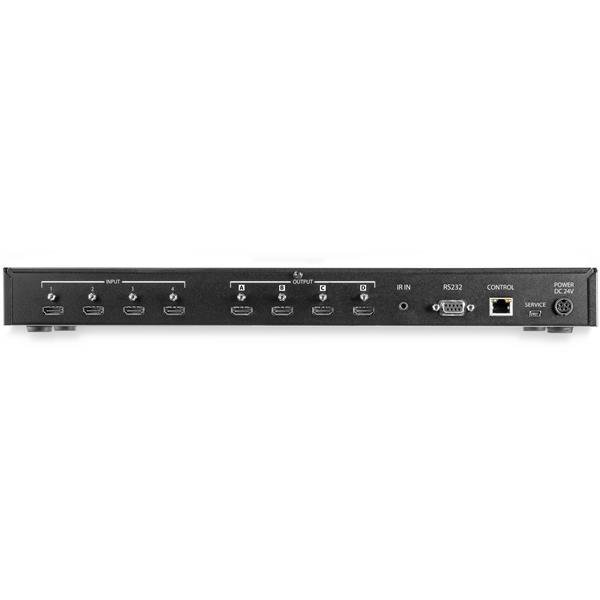

| Ports interfaces | |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| HDMI version | 2.0 |
| USB connector type | Mini-USB B |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Output current | 2700 mA |
| Output voltage | 24 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Logistics data | |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case length | 413 mm |
| Master (outer) case width | 601 mm |
| Master (outer) case height | 345 mm |
| Harmonized System (HS) code | 85299097 |
| Technical details | |
| Compliance certificates | RoHS |
| Weight dimensions | |
| Width | 160 mm |
| Depth | 437 mm |
| Height | 43 mm |
| Weight | 2 kg |
| Package width | 239 mm |
| Package depth | 470 mm |
| Package height | 99 mm |
| Package weight | 4 kg |
| Packaging content | |
| Manual | Yes |
| Mounting brackets included | Yes |
| IR receiver included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
