Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
| Manufacturer | Startech.com |
|---|---|
| Manufacturer Part Number | FD121KVMEXTENDE |
| Barcode | 065030901123 |
| Brand Name | StarTech.com |

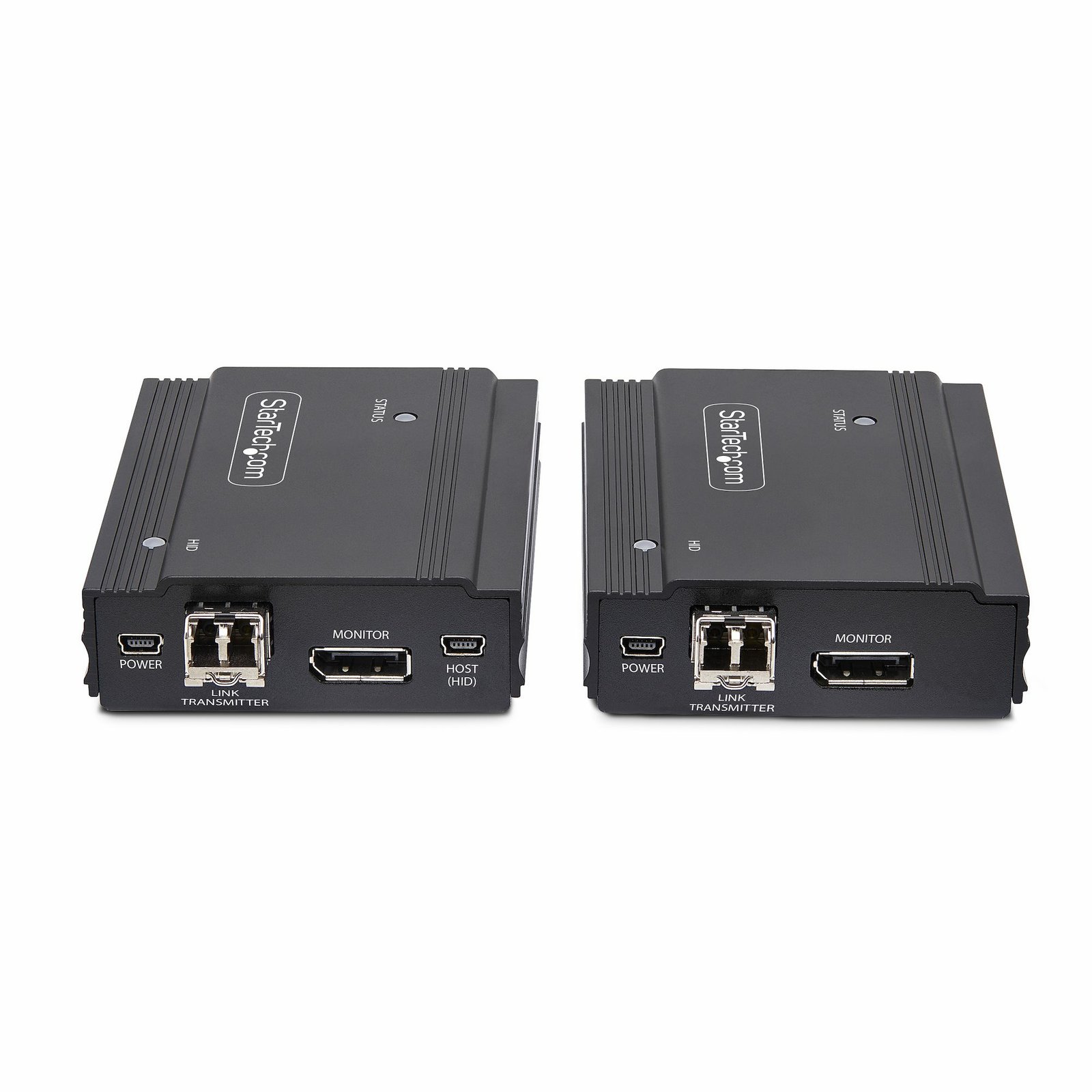

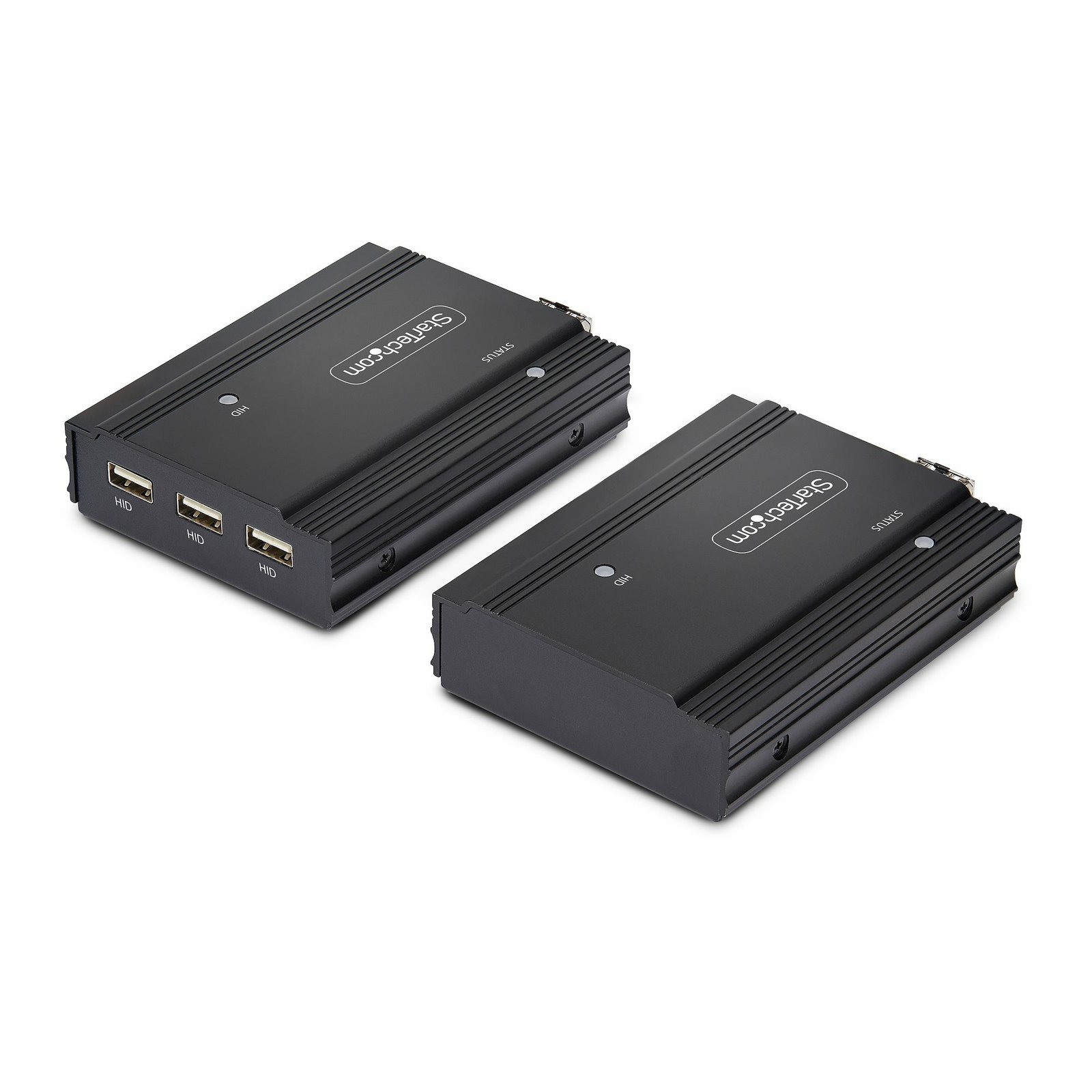

| Product Name | StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode) with Pre-installed SFP+ Modules, 3x USB HID - TAA |
| Mfr. Part Number | FD121KVMEXTENDE |
|---|---|
| Barcode | 065030901123 |
| Features | |
| Type | Transmitter receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 300 m |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Supported resolutions | 4096 x 2160 @ 60hz 3840 x 2160 @ 60hz 3440 x 1440 @ 60hz 3200 x 1800 @ 60hz 3072 x 1728 @ 60hz 2560 x 1440 @ 60hz 2048 x 1536 @ 60hz 1920 x 1200 @ 60hz 3840 x 1080 @ 60hz 1920 x 1080 @ 60hz 1760 x 990 @ 60hz 1680 x 1050 @ 60hz 1600 x 1200 @ 60hz 1600 x 900 @ 60hz 1440 x 900 @ 60hz 1366 x 768 @ 60hz 1280 x 1024 @ 60hz 1280 x 720 @ 60hz 1128 x 634 @ 60hz 1024 x 768 @ 60hz 800 x 600 @ 60hz |
| On Screen Display (OSD) | No |
| Product colour | Black |
| LED indicators | Yes |
| Transmitter | |
| Transmitter local video port | Yes |
| Transmitter local video port type | DisplayPort |
| Number of displays supported | 1 |
| Transmitter Micro-USB ports quantity | 1 |
| Receiver | |
| Receiver local video port type | DisplayPort |
| Receiver Micro-USB ports quantity | 2 |
| Ports interfaces | |
| Installed SFP+ modules quantity | 2 |
| USB 1.1 ports quantity | 3 |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (transmitter) (max) | 10 W |
| Power consumption (receiver) (max) | 10 W |
| Weight dimensions | |
| Transmitter width | 7.4 cm |
| Transmitter depth | 10 cm |
| Transmitter height | 2.8 cm |
| Transmitter weight | 235 g |
| Receiver width | 7.4 cm |
| Receiver depth | 10 cm |
| Receiver height | 2.8 cm |
| Receiver weight | 235 g |
| Packaging data | |
| Package width | 308 mm |
| Package depth | 179 mm |
| Package height | 72 mm |
| Packaging content | |
| Cables included | Mini-USB |
| Quick installation guide | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Extended display identification data (EDID) | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 328 mm |
| Master (outer) case height | 265 mm |
| Products per master (outer) case | 6 pc(s) |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Transceivers Modules |
No reviews yet. If you have bought this, yours would be the first.
