Create a high-performance dual-display workstation by connecting a DisplayPort™ device to two independent DisplayPort™ monitors

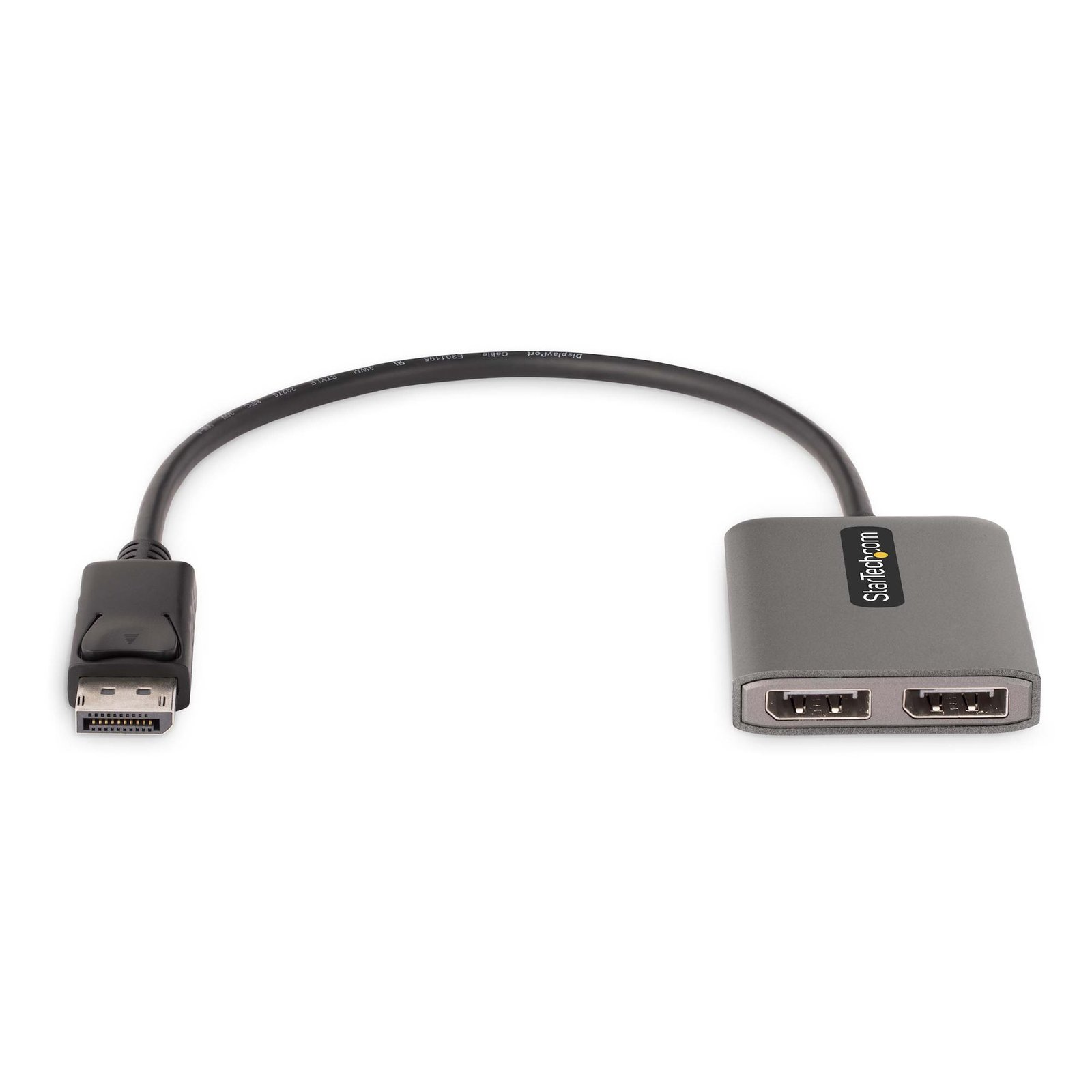

This DisplayPort to DisplayPort MST Hub enables a connection to two DP monitors, using a single DisplayPort enabled host device.
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup

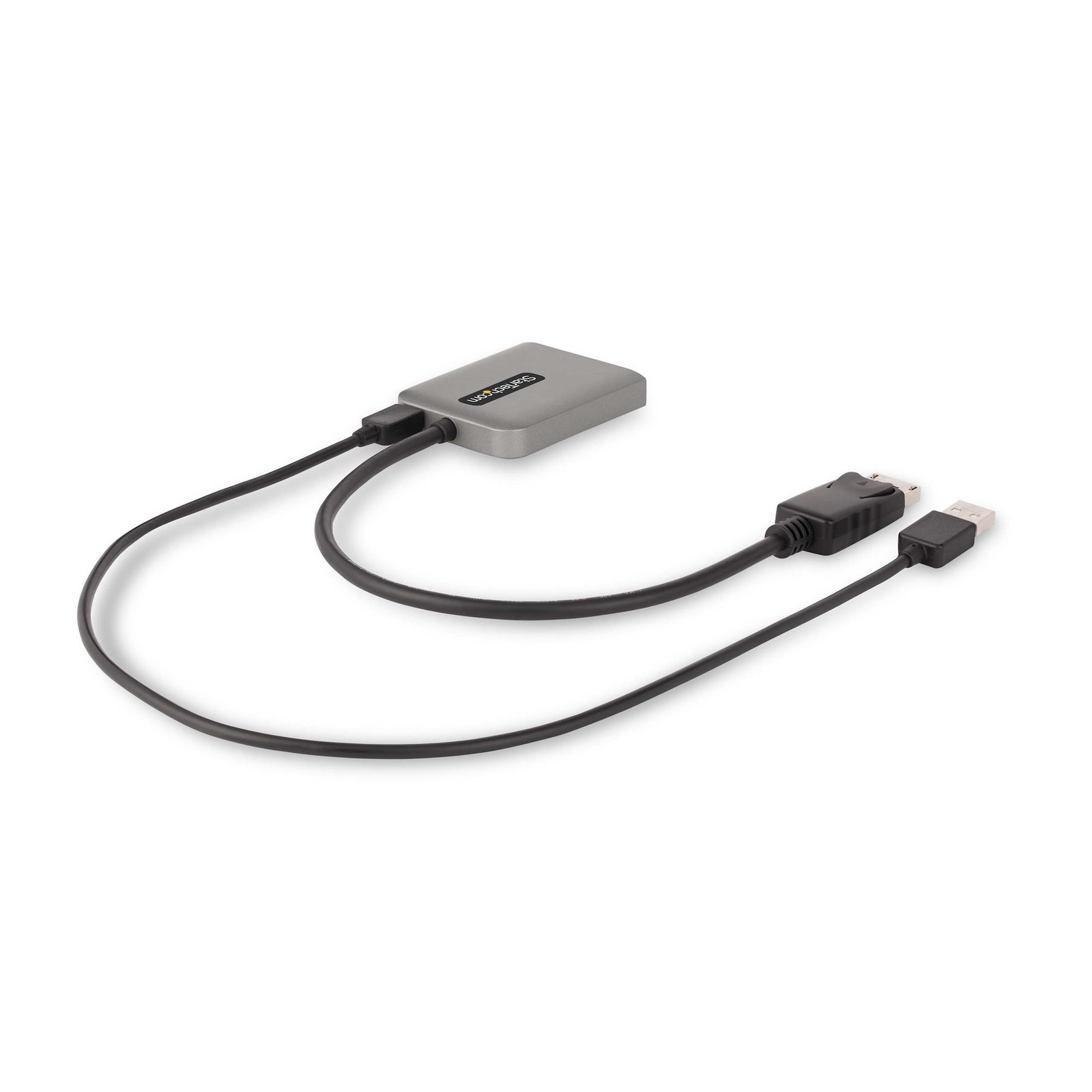

This MST Hub works with DisplayPort enabled Windows devices featuring 11th generation (and later) processors, or dedicated graphics cards that have a DisplayPort 1.4 output. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB Powered and comes with the USB Micro-B power cable.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
MST14DP122DP
Barcode
065030884044
Brand Name
StarTech.com
Product Model
MST14DP122DP
Product Name
StarTech.com Dual-Monitor DisplayPort 1.4 Splitter, DisplayPort to 2x DP Multi-Monitor Adapter, Dual 5K 60Hz Computer MST Hub, Extra-Long Built-in Cable - Windows Only
Marketing Information
DisplayPort to Dual-DisplayPort MST Hub drives up to 2x 4K 60Hz displays using a DP 1.4 host - HDR; 2ch Audio; HDCP 2.2; Backwards compatible with DP 1.2 hosts at lower resolutions - Multi-monitor adapter adds two extended/mirrored displays; Utilize the host's built-in GPU capabilities; Driverless - Dedicated GPUs/11th gen and up Intel Processors with DP 1.4 for dual-4K 60Hz monitors; DP 1.4 with DSC required for dual 5K 60Hz - 1ft built-in cable; 20in USB power cable included; Windows Only.
Packaged Quantity
1
Mfr. Part Number
MST14DP122DP
Barcode
065030884044
Product Model
MST14DP122DP
Packaged Quantity
1
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Power source
USB
Cable length
0.3 m
Connector 1
DisplayPort
Connector 2
2 x DVI
Connector 1 gender
Male
Connector 2 gender
Female
HDCP
Yes
HDCP version
2.2
DisplayPort version
1.4
Maximum resolution
4096 x 2160 pixels
Refresh rate at maximum resolution
60 Hz
Product colour
Grey
Chipset
Synaptic VMM5220
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Certificates
Compliance certificates
CE, RoHS
Sustainability
Sustainability compliance
Yes
Weight dimensions
Weight
53 g
Width
105 mm
Depth
43 mm
Height
14 mm
Packaging data
Package width
172 mm
Package depth
146 mm
Package height
33 mm
Package weight
110 g
Packaging content
Packaging content
Micro-USB Power Cable
Logistics data
Master (outer) case width
477 mm
Master (outer) case length
341 mm
Master (outer) case height
446 mm
Products per master (outer) case
70 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Monitors Displays
