Extend HDMI over CAT5e/CAT6 cabling to a remote location, with support for 4K 60Hz at 70 m (230 ft.) and 1080p 60Hz at 100 m (328 ft.)

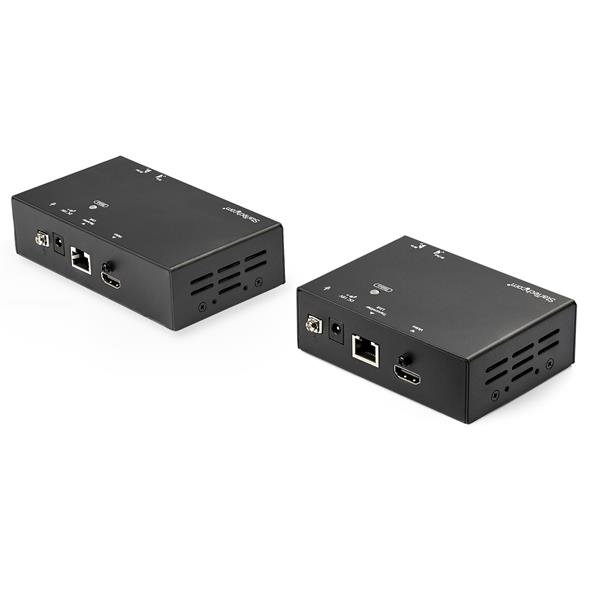

This HDMI Over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 100 m (328 ft.) away.
Get 4K at 60Hz from 70 m (230 ft.) away
This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 100 m (328 ft.) from your HDMI source.
With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.
Simplify your setup
The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you extend an HDMI signal using existing infrastructure that’s already in your building. Plus, this HDMI extender supports Power Over Cable (POC), which means you’ll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.
The ST121HDBT20L is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
ST121HDBT20L
Barcode
0065030877879
Brand Name
StarTech.com
Product Name
StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.) - TAA
Mfr. Part Number
ST121HDBT20L
Barcode
0065030877879
Features
Type
AV transmitter receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio output channels
7.1 channels
LED indicators
Status
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Material
Aluminium
Daisy chain
No
Rubber feet
Yes
Product colour
Black
Ports interfaces
Connectivity technology
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1

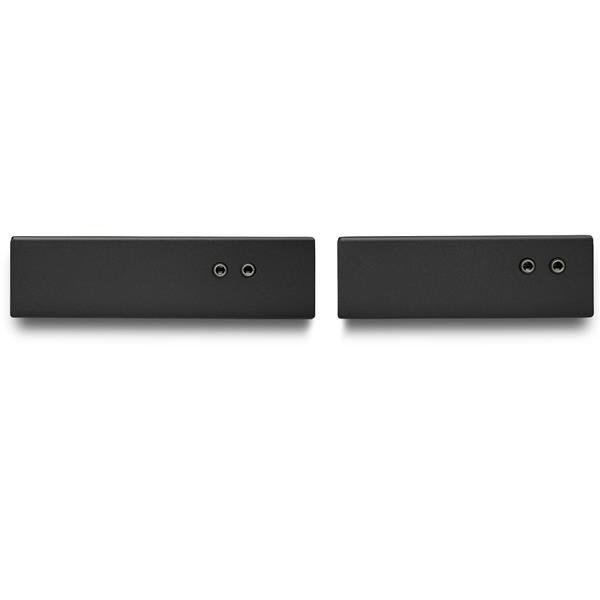

Remote (IR) input
2
Remote (IR) output
2
Power
AC input voltage
100 - 240 V
Operating voltage
18 V
Input current
0.6 A
Output current
1 A
External power adapter
Yes
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging data
Package width
212 mm
Package depth
298 mm
Package height
66 mm
Package weight
230 g
Packaging content
AC adapter included
Yes
Included power plug types
ANZ, EU, JP, NA, UK
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Mounting brackets included
Yes
Technical details
Compliance certificates
CE, RoHS
Logistics data
Master (outer) case width
326 mm
Master (outer) case length
414 mm
Master (outer) case height
262 mm
Products per master (outer) case
6 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Cables Connectivity
