Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure

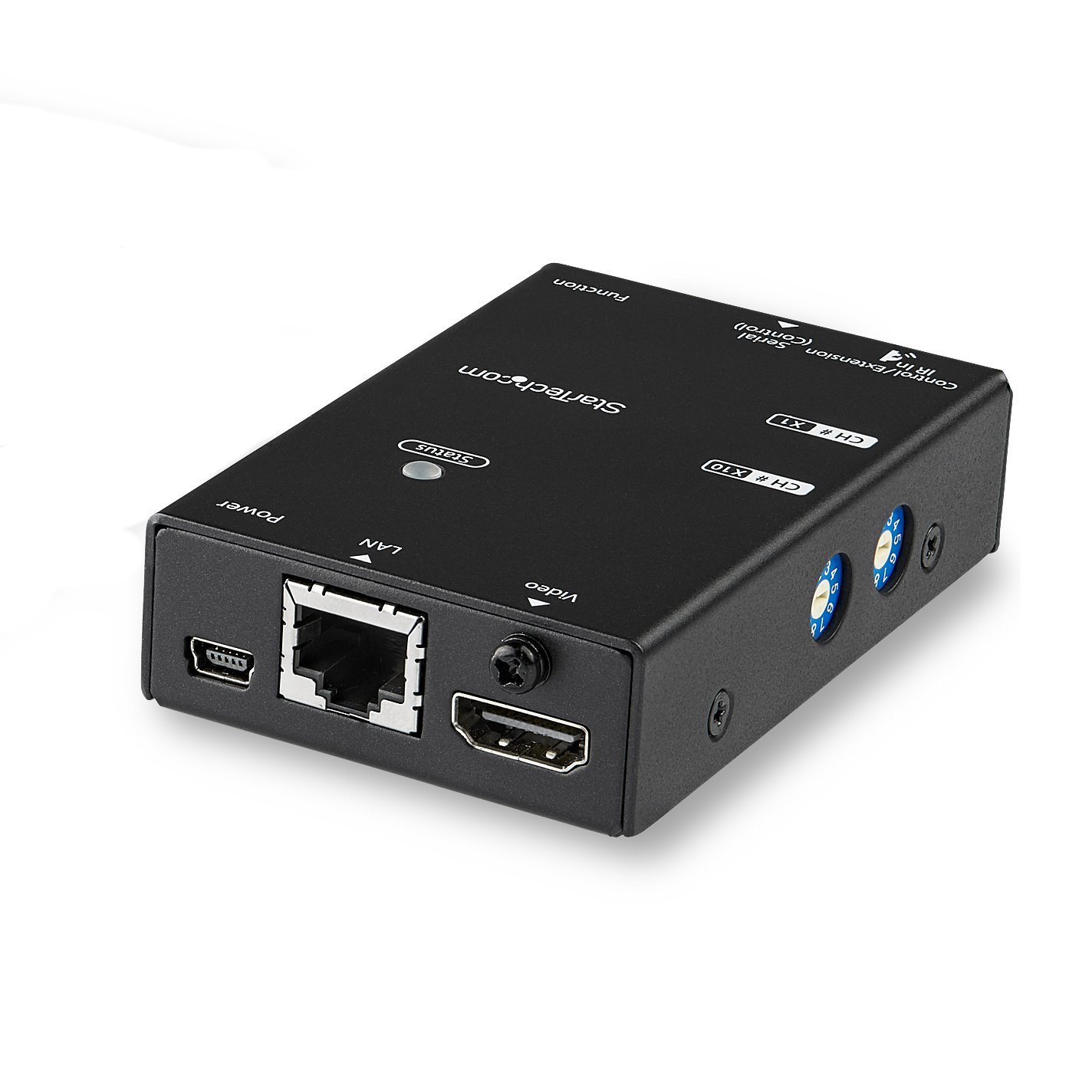

The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations.
Customize your video distribution with a scalable solution
With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.
Get brilliant video at HD 1080p
The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engage customers.
Save your network bandwidth with video compression
Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP solution uses video compression to distribute high-quality HDMI over your local area network, with minimal bandwidth requirements. Extending your HDMI using compression saves your network resources, avoiding the hassle of a separate video network.
The ST12MHDLNHR is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
ST12MHDLNHR
Barcode
0065030879040
Brand Name
StarTech.com
Product Model
ST12MHDLNHR
Product Name
StarTech.com HDMI over IP Receiver for ST12MHDLNHK - 1080p - TAA
Marketing Information
Broadcast your HDMI signal to multiple locations throughout your site using your existing network infrastructure - Use this HDMI over Ethernet Receiver to distribute video over your site using your network - Create a digital signage solution with a scalable HDMI over CAT6 receiver - Maintain the HD picture quality of your video source with a 1080p HDMI receiver - Video over IP / HDMI over LAN / HDMI over network / HDMI video over Ethernet / HDMI over Gigabit Ethernet / HDMI over CAT5 receiver
Packaged Quantity
1
Mfr. Part Number
ST12MHDLNHR
Barcode
0065030879040
Product Model
ST12MHDLNHR
Packaged Quantity
1
Features
Type
AV receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
15 m
Maximum refresh rate
60 Hz
Audio output channels
2.0 channels
LED indicators
Status
Supported video modes
1080p
Cable length
15.2 m
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Rubber feet
Yes
Product colour
Black
Certification
CE, REACH, FCC, TAA
Ports interfaces
Connectivity technology
Wired
Ethernet LAN
Yes
RJ-45 input ports
1
Number of HDMI outputs
1
USB ports quantity
1
USB connector type
Mini-USB B
Audio output
1
Power
AC input voltage
100 - 240 V
Operating voltage
5 V
Input current
0.3 A
Output current
1 A
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight dimensions
Width
97 mm
Depth
130 mm
Height
24 mm
Weight
213 g
Packaging data
Package width
157 mm
Package depth
237 mm
Package height
66 mm
Package weight
800 g
Packaging content
AC adapter included
Yes
Cables included
LAN (RJ-45), Serial, USB
Included power plug types
ANZ, EU, NA, UK
Manual
Yes
IR receiver included
Yes
Mounting kit
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Master (outer) case width
326 mm
Master (outer) case length
412 mm
Master (outer) case height
262 mm
Products per master (outer) case
12 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Cables Connectivity
