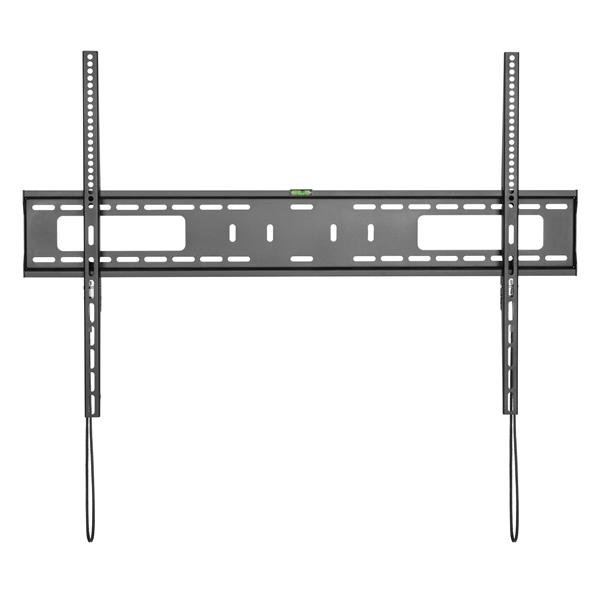

Flat Screen Mount | Weight Cap. 165 lb. (75 kg) | 60” to 100” TV | Cold-Rolled Steel | VESA® Compatible
This heavy-duty TV wall mount is ideal for commercial and business purposes such as digital signage in lobbies, displays for boardrooms or anywhere a large professional display needs to be mounted.
Engineered for Heavy Duty Commercial Grade TVs
This TV wall mount is designed to be used with commercial or heavy-duty televisions and displays. It supports a weight of up to 165 lbs. or 75 kilograms and has been thoroughly tested to triple the rated weight capacity to ensure premium product quality and reliable performance.
The mount is ideal for 60” to 100” TVs including curved TVs; however, most larger or smaller TVs can be accommodated if they fall within the listed weight capacity.
Straightforward Installation Removal
This TV mount is VESA® compatible and has two rows of seventeen mounting holes across the wall bracket to accommodate a variety of spacing between studs and helping you to center your display. The included bubble level helps to ensure an accurate mount to the wall.
Once the wall bracket is attached to the wall and the vertical brackets are attached to the TV, the TV simply attaches to the mount using the spring locks and can be as easily removed using the release pull straps.
Comprehensive Product Testing Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
FPWFXB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
FPWFXB1
Barcode
0065030880497
Brand Name
StarTech.com
Product Model
FPWFXB1
Product Name
StarTech.com Heavy Duty Commercial Grade TV Wall Mount - Fixed - Up to 100” TVs
Marketing Information
Securely mount large commercial grade TVs and digital signage to boardrooms, lobbies and anywhere large displays are required - Designed and engineered to support slim flat screen TVs up to 165 lbs. (75kg) - Mounting holes across the wall bracket to accommodate any stud spacing - Constructed using high quality 2mm thick cold-rolled steel - Securely attach TV or display using the spring locks and easily remove using the release straps - Supports 60 , 65 , 70 , 75 , 80 , 85 , 90 , 95 and 100 TVs
Packaged Quantity
1
Mfr. Part Number
FPWFXB1
Barcode
0065030880497
Product Model
FPWFXB1
Packaged Quantity
1
Mounting
Maximum weight capacity
75 kg
Minimum screen size
152.4 cm (60")
Number of displays supported
1
Maximum screen size
2.54 m (100")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
900 x 600 mm
Panel mounting interface
100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400,600 x 600,600 x 300,800 x 400,800 x 600,900 x 600
Mounting type
Wall
Ergonomics
Cable management
No
Built-in spirit level
Yes
Distance to the wall (max)
3.05 cm
Design
Product colour
Black
Housing material
Plastic, Steel
Anti-theft function
No
Technical details
Compliance certificates
RoHS
Packaging content
Adapter bracket included
Yes
Number of adapter brackets included
2
Anchors included
Yes
Number of anchors included
6
Washers included
Yes
Number of washers included
10
Spacer included
Yes
Number of spacers included
16
Screws included
Yes
Number of screws
26
Manual
Yes
Weight dimensions
Width
625 mm
Depth (max)
95.4 cm
Height
30.5 mm
Weight
3.5 kg
Packaging data
Package width
161 mm
Package depth
987 mm
Package height
43 mm
Package weight
3.6 kg
Logistics data
Master (outer) case width
185 mm
Master (outer) case length
1000 mm
Master (outer) case height
220 mm
Products per master (outer) case
5 pc(s)
Harmonized System (HS) code
85299097
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Mounts Stands
