Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | POEINJ1G90W |
| Barcode | 0065030889568 |
| Brand Name | StarTech.com |
| Product Model | POEINJ1G90W |

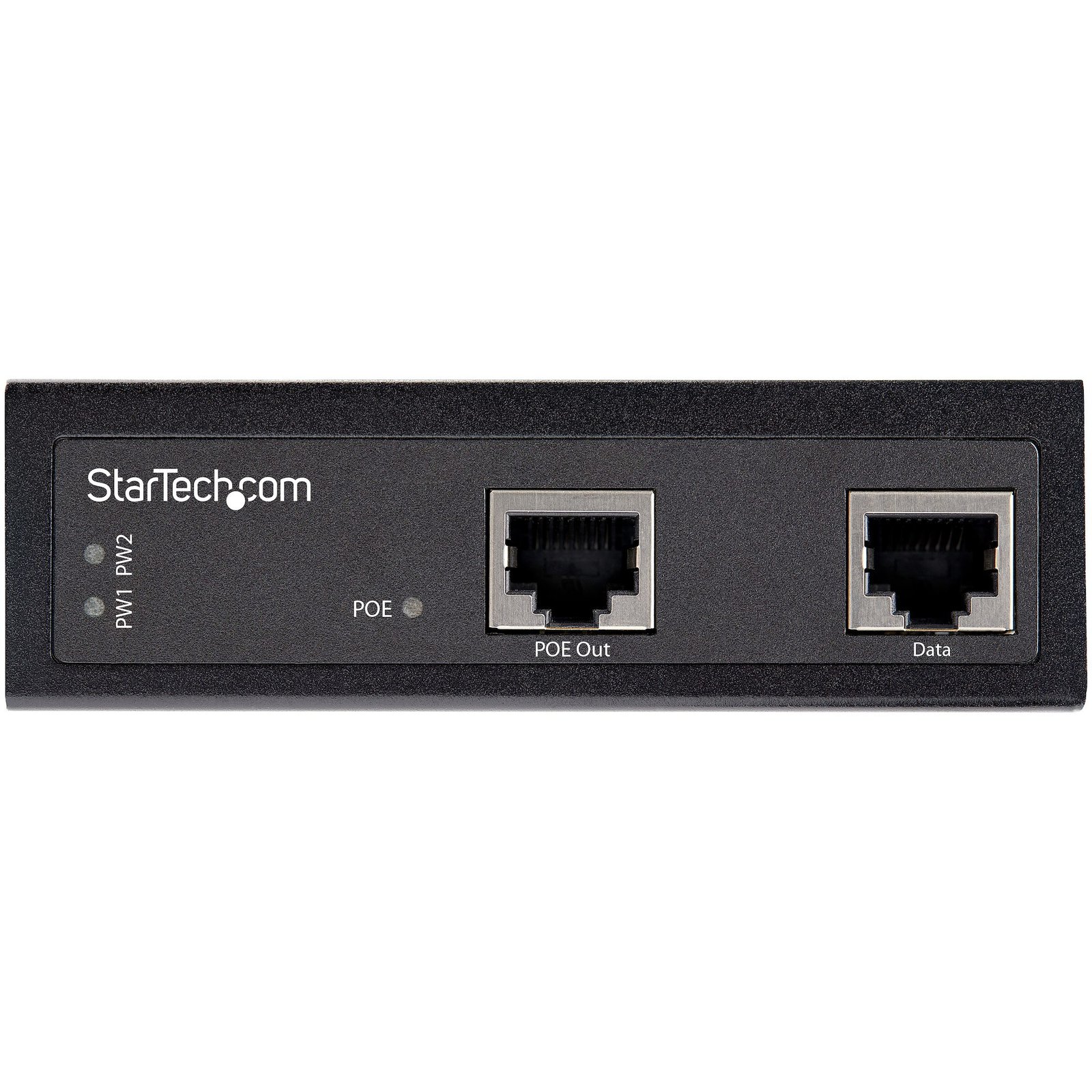

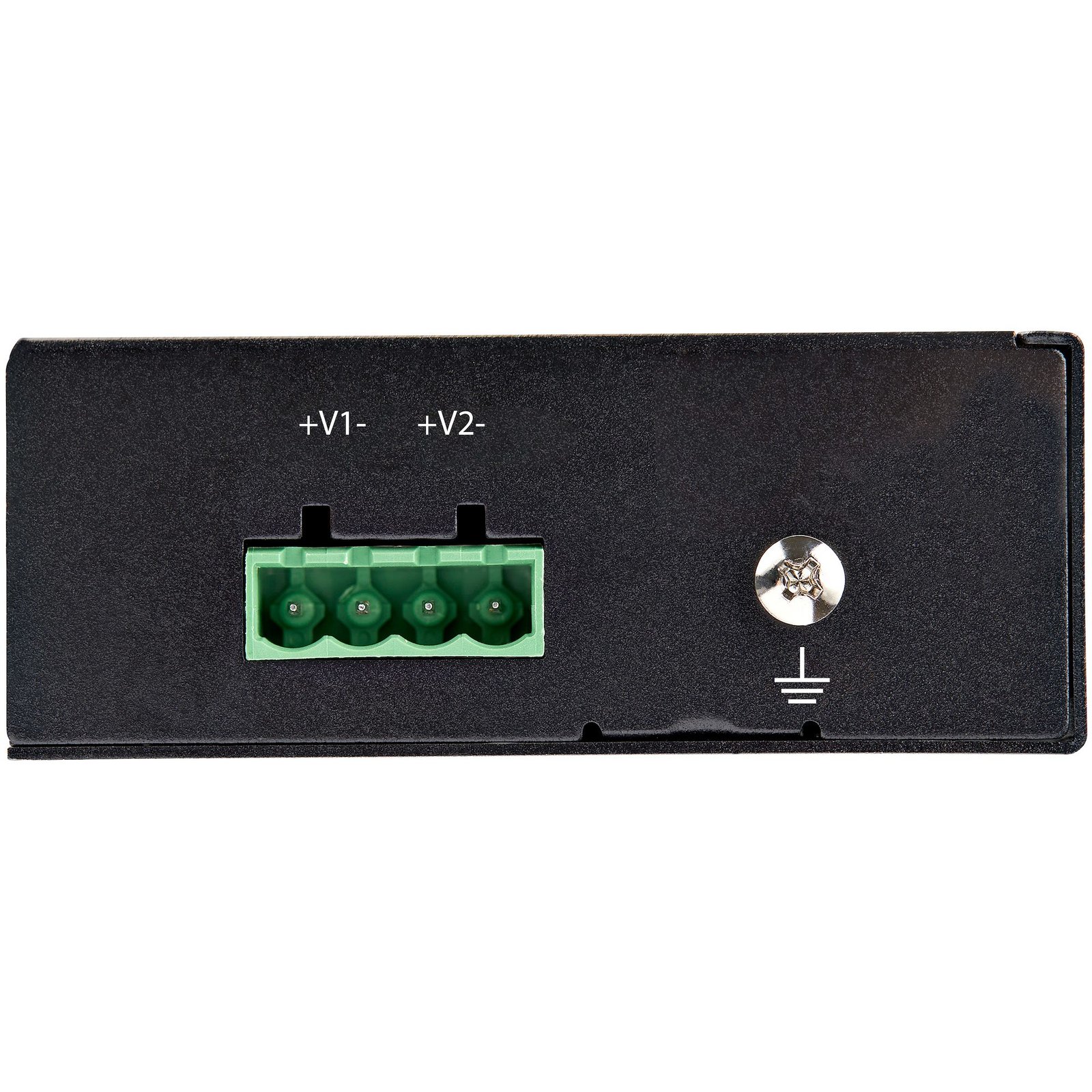

| Product Name | StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged - TAA |
| Marketing Information |
High speed Industrial gigabit PoE injector compatible w/IEEE 802.3bt PoE++, 90W POE standards incl PoH (HDBase-T), Cisco uPoE, Bosch, AXIS - Auto-negotiated power up to 90W max for Type 3/4 PoE devices: IEEE 802.11ax wireless APs - 1 Gbps, 48V-56VDC pwr in, IEEE 802.3af, IEEE 802.3at, PoH (HDBase-T), uPoE, Ultra power over Ethernet, 10, 100, 1000 Mbps, DIN, wall mount, Redundant pwr input - MTBF 500k +hrs @ 50C, Vibration, shock, free fall rated, IP-30 housing, Rugged -40C to 75C - 2yr warranty.
|
| Packaged Quantity | 1 |
| Mfr. Part Number | POEINJ1G90W |
|---|---|
| Barcode | 0065030889568 |
| Product Model | POEINJ1G90W |
| Packaged Quantity | 1 |
| Performance | |
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
| Chipset | Microsemi PD69204 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP30 |
| Mean time between failures (MTBF) | 540891 h |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Ports interfaces | |
| Power over Ethernet (PoE) ports quantity | 2 |
| Terminal block port | Yes |
| Design | |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Management features | |
| Supported network protocols (IPv4) | CSMA/CD |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
| Power plug type | Type N |
| Power over Ethernet (PoE) voltage range | 48 - 56 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight dimensions | |
| Width | 32 mm |
| Depth | 82 mm |
| Height | 104 mm |
| Weight | 174 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 169 mm |
| Package depth | 214 mm |
| Package height | 67 mm |
| Package weight | 416 g |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 248 mm |
| Products per master (outer) case | 10 pc(s) |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Networking Communications |
