Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
| Manufacturer | Startech.com |
|---|---|
| Manufacturer Part Number | SFP100BLXST |
| Barcode | 065030873468 |
| Brand Name | StarTech.com |
| Product Model | SFP100BLXST |

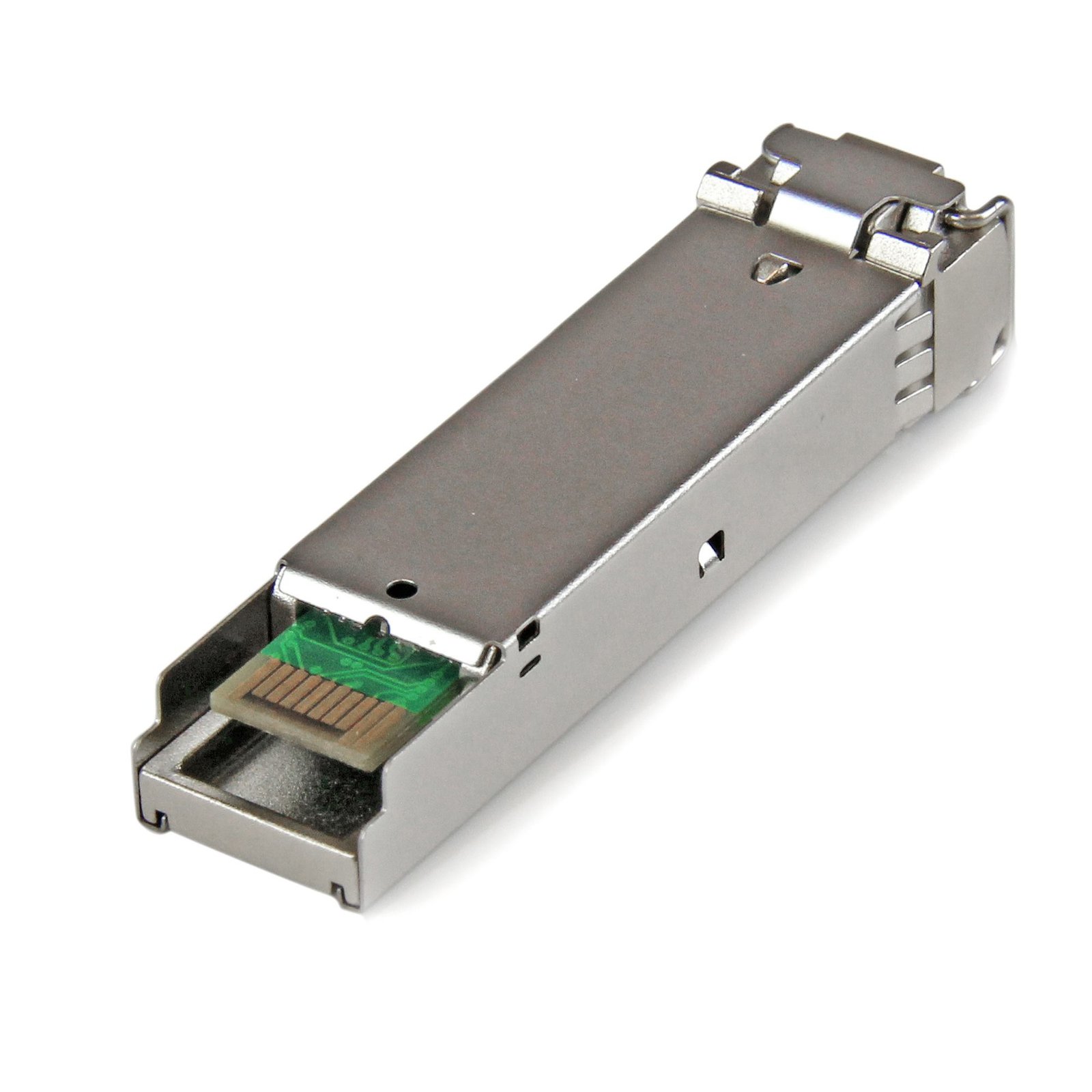

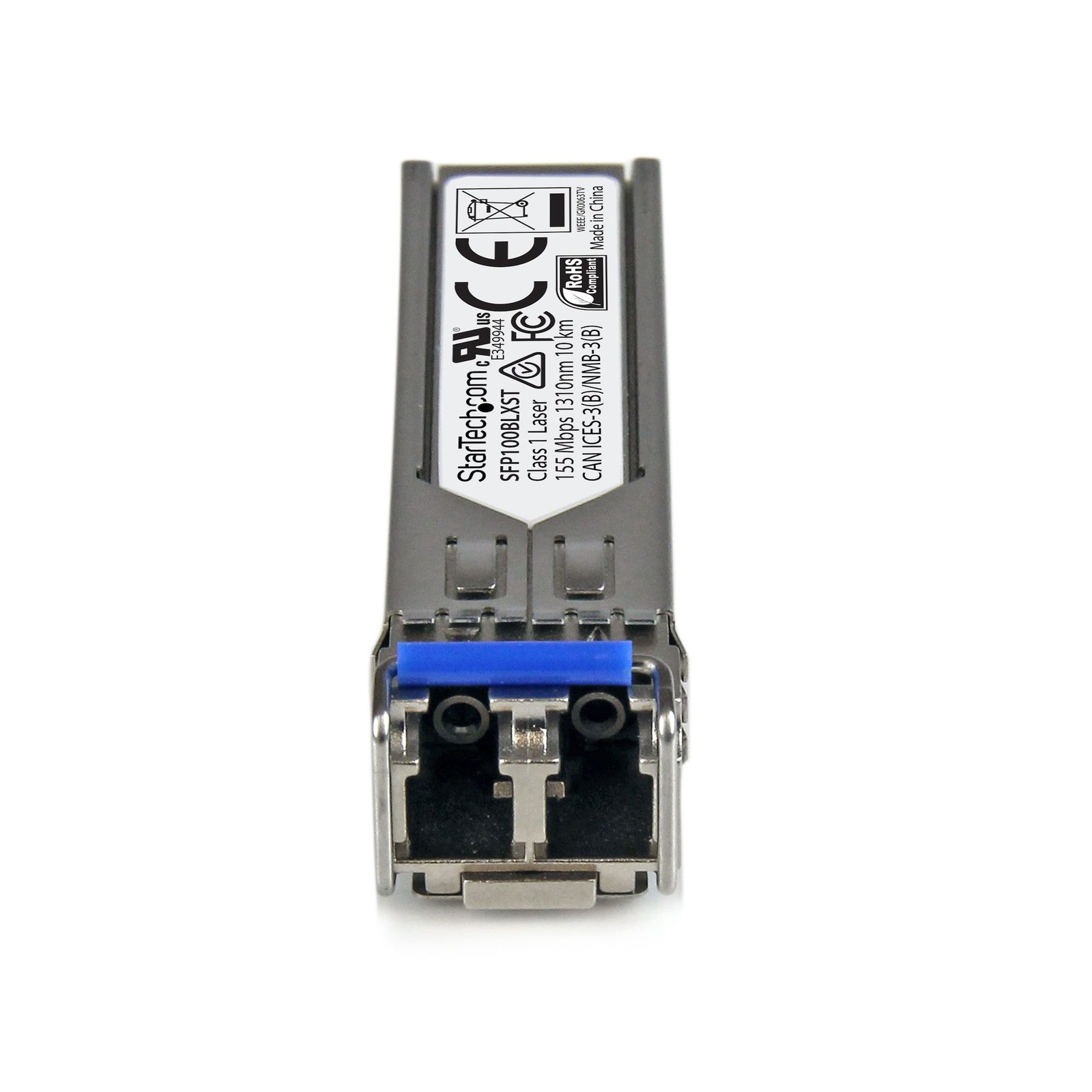

| Product Name | StarTech.com MSA Uncoded SFP Module - 100BASE-LX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 10km - 1310nm - DDM |
| Marketing Information |
100BASE-LX fiber transceiver adds reliable 1Gb over fiber - StarTech.com lifetime warranty on all StarTech.com SFP modules - Maximum Transfer Distance of 10 km (6.2 mi) - SFP transceiver module complies with MSA industry standards - LC fiber SFP has a low power consumption of < 1 W - Fiber SFP module uses a cost-effective cabling alternative to fiber - Hot swappable with fiber optic modules
|
| Packaged Quantity | 1 |
| Mfr. Part Number | SFP100BLXST |
|---|---|
| Barcode | 065030873468 |
| Product Model | SFP100BLXST |
| Packaged Quantity | 1 |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3u |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight dimensions | |
| Width | 14 mm |
| Depth | 59 mm |
| Height | 13 mm |
| Weight | 30 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 91 mm |
| Package depth | 114 mm |
| Package height | 33 mm |
| Package weight | 95 g |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 300 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Transceivers Modules |
