StarTech.com
StarTech.com M.2 NVMe SSD Drive Tray for use in PCIe Expansion Product Series - Drive Tray for an Additional Hot Swappable Drive
Mfr. Part# TRM2REMOVABLEPC
$50.13
$46.69
| Manufacturer | Startech.com |
|---|---|
| Manufacturer Part Number | SDOCKU313 |
| Barcode | 065030861656 |
| Brand Name | StarTech.com |
| Product Model | SDOCKU313 |

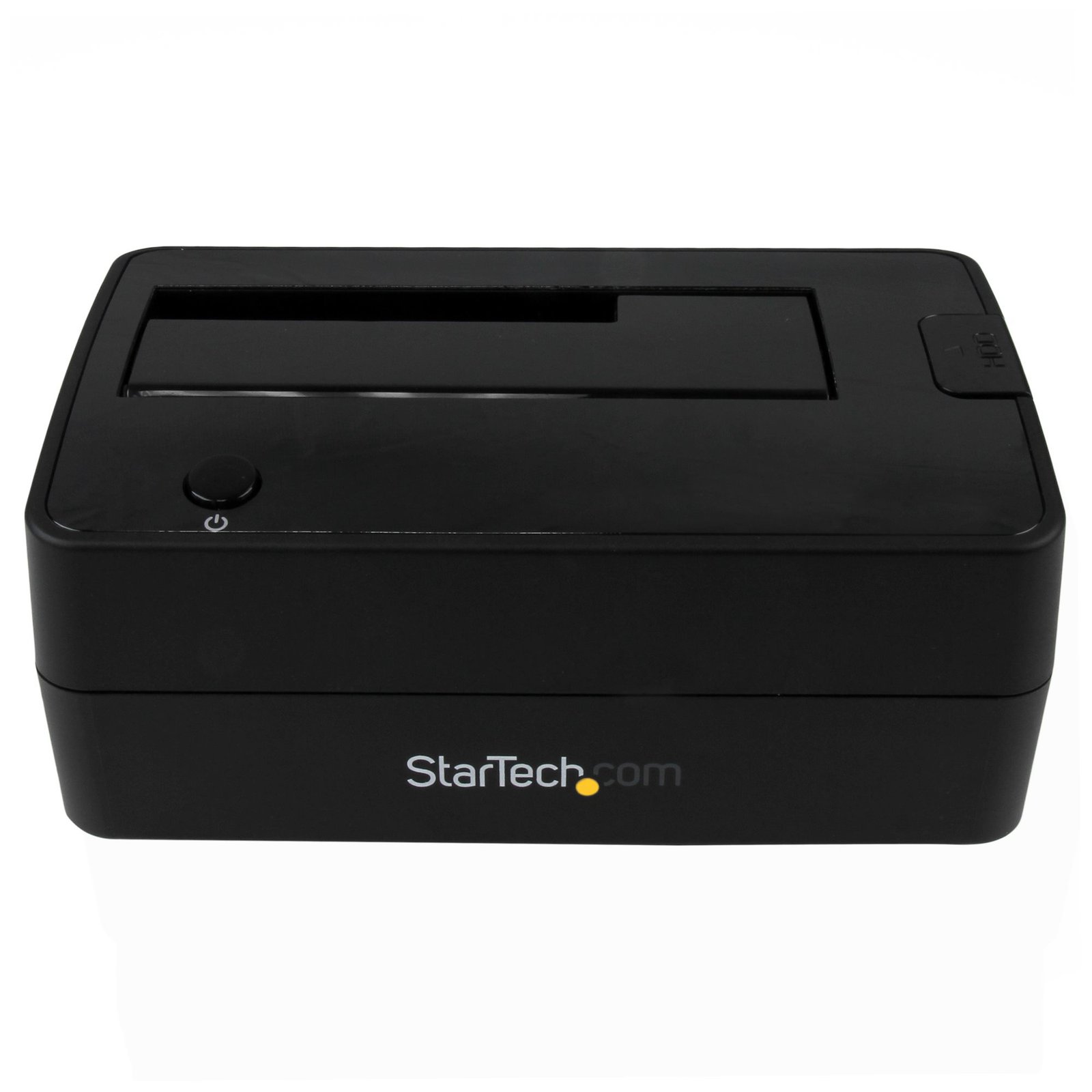

| Product Name | StarTech.com Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay |
| Marketing Information |
Dock your 2.5" or 3.5" SATA SSD/HDD over high performance USB 3.1 Gen 2 (10 Gbps) with UASP - HDD Dock / SSD Dock / USB Hard Drive Dock / External Hard Drive Docking Station / SATA 2.5 or 3.5 HDD SSD Dock - 2.5/3.5 SATA Dock - USB 3.1 Gen 2 single-drive docking station - SATA I, II, III (up to 6 Gbps) support - Up to 6TB drive capacity - Top-loading design with eject button for easy drive access - Backward compatible with USB 3.0, 2.0 and 1.x.
|
| Packaged Quantity | 1 |
| Mfr. Part Number | SDOCKU313 |
|---|---|
| Barcode | 065030861656 |
| Product Model | SDOCKU313 |
| Packaged Quantity | 1 |
| Hard drive | |
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 6 TB |
| Ports interfaces | |

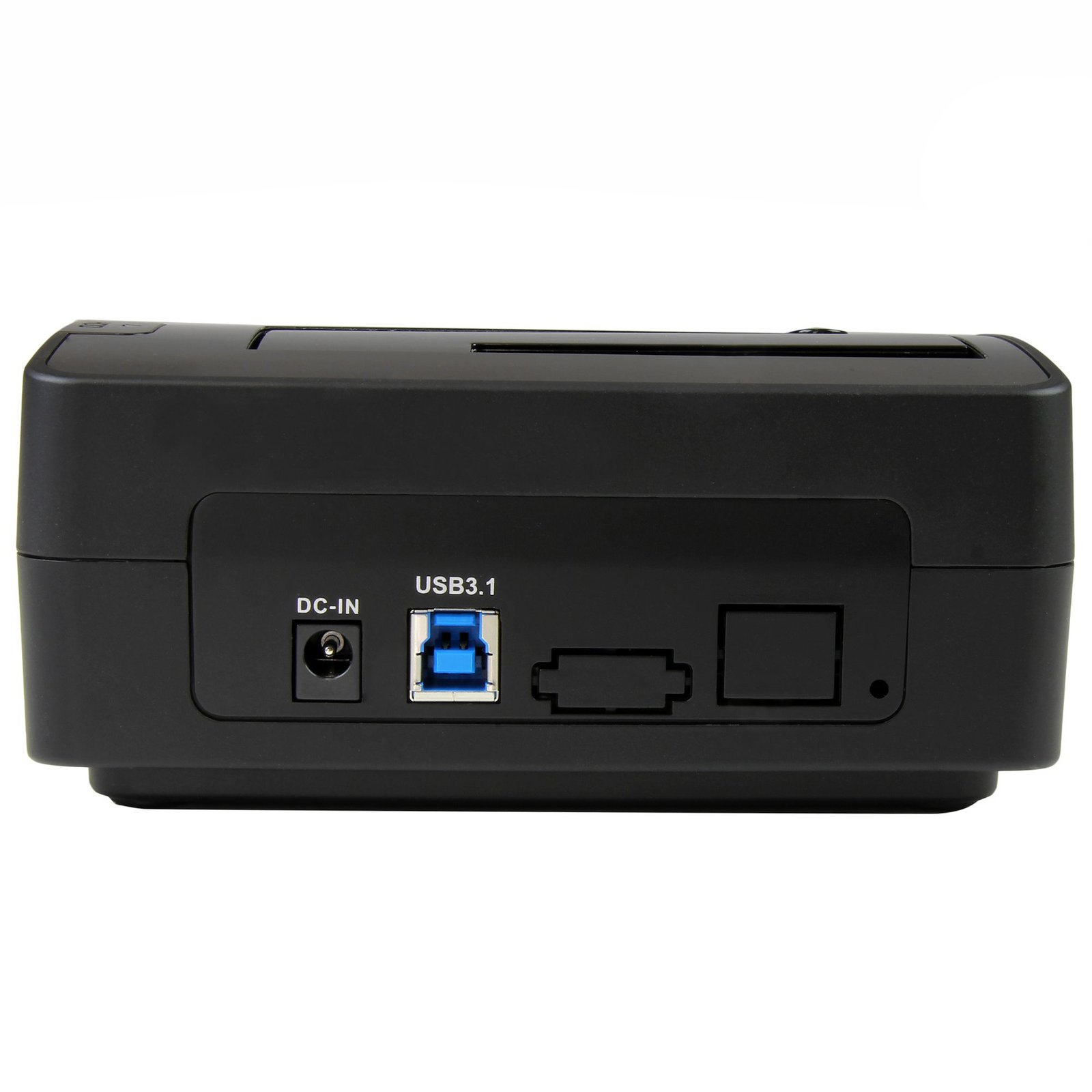

| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B |
| USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Material | Plastic |
| Maximum data transfer rate | 10 Gbit/s |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Certification | CE, FCC, REACH |
| Cooling | |
| Built-in fan | No |
| Power | |
| AC input voltage | 110 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Power plug type | Type M |
| Weight dimensions | |
| Width | 92.7 mm |
| Depth | 145 mm |
| Height | 64 mm |
| Weight | 392 g |
| Packaging data | |
| Package width | 163 mm |
| Package depth | 91 mm |
| Package height | 171 mm |
| Package weight | 758 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| Included power plug types | AU, EU, NA, UK |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Other features | |
| Chipset | ASMedia - ASM1351 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 475 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 10 pc(s) |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Storage (SSD/HDD/NAS) |
No reviews yet. If you have bought this, yours would be the first.
