| Manufacturer | Startech.com |
|---|---|
| Manufacturer Part Number | DKT31CH2CPD3 |
| Barcode | 065030891981 |
| Brand Name | StarTech.com |
| Product Model | DKT31CH2CPD3 |

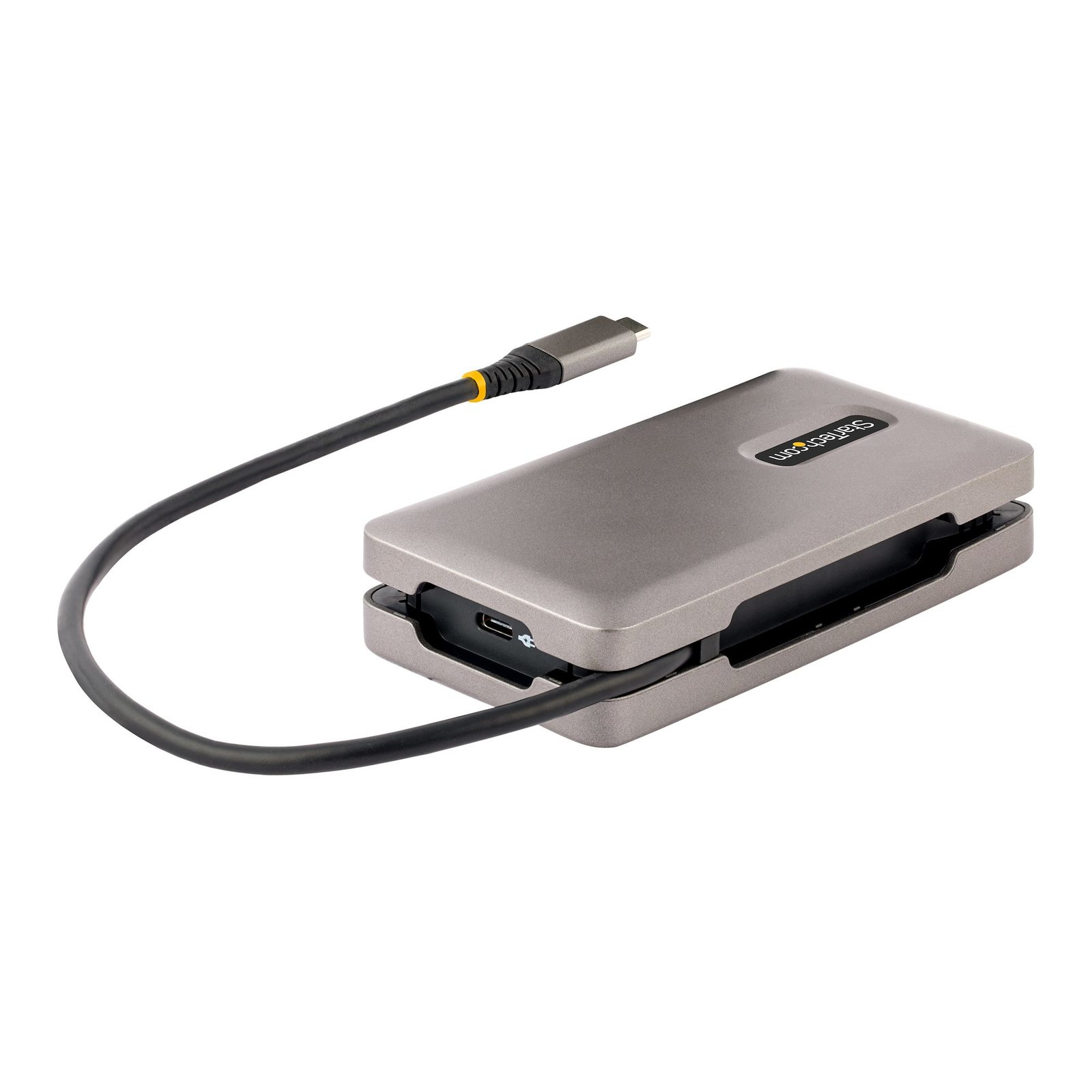

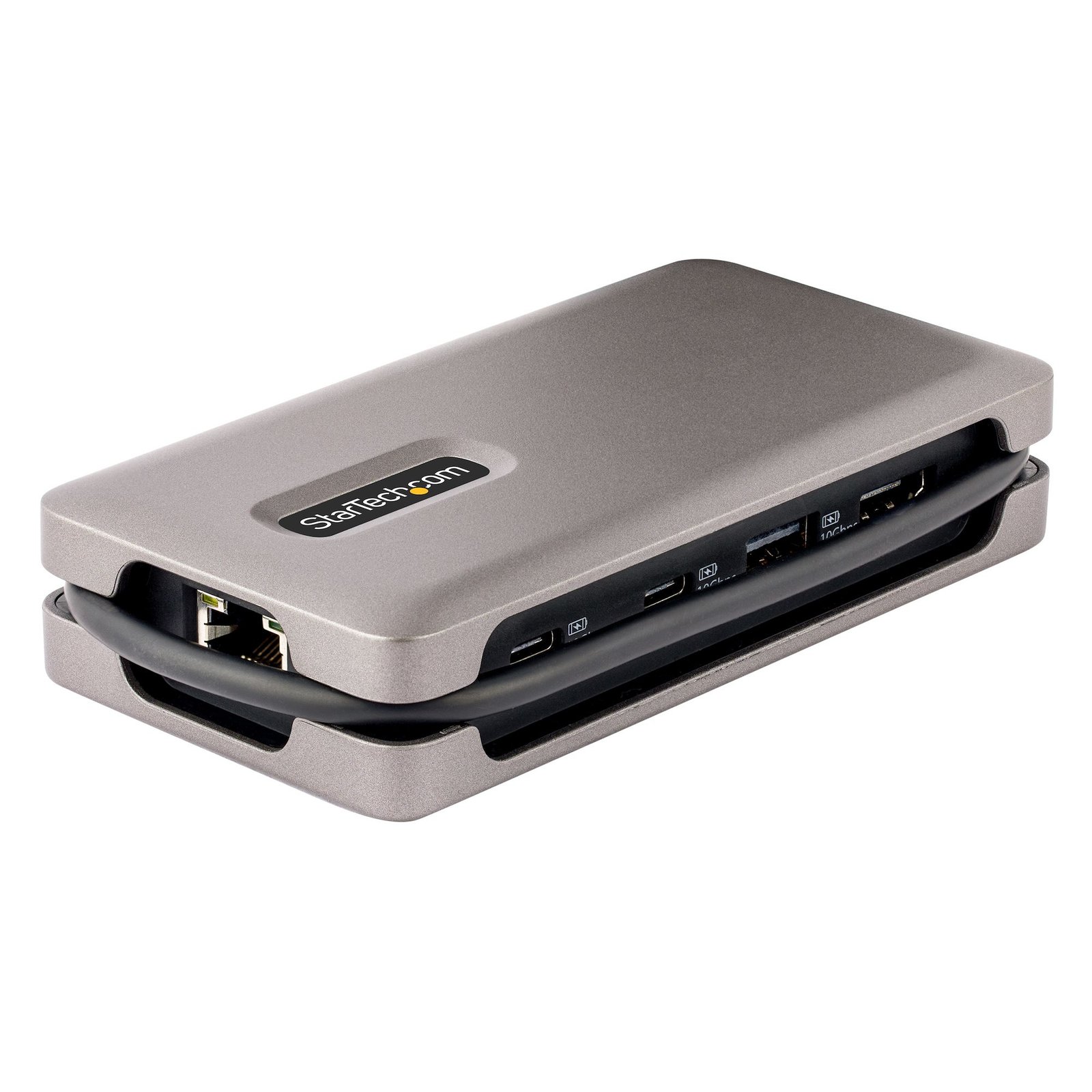

| Product Name | StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cable, Laptop Docking Station |
| Marketing Information |
USB-C Multiport Adapter with 4K 60Hz HDMI HDR Video (DP 1.4 Host) 4K 30Hz (DP 1.2 Host) 2x USB-C/1x USB-A 3.2 Gen 2 (10Gbps) ports/Gigabit Ethernet/100W USB-C PD 3.0 pass-through with 15W reserved for the laptop docking station - Connect a USB-C power adapter to the mini dock to charge USB devices without the need of a host connection - The portable travel dock features a 12" wrap-around cable - USB Type-C power adapter or bus-powered - Works
|
| Packaged Quantity | 1 |
| Mfr. Part Number | DKT31CH2CPD3 |
|---|---|
| Barcode | 065030891981 |
| Product Model | DKT31CH2CPD3 |
| Packaged Quantity | 1 |
| Ports interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| DC-in jack | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Grey |
| High Dynamic Range (HDR) supported | Yes |
| LED indicators | Yes |
| UASP support | Yes |
| Housing material | Plastic |
| Power | |
| Power source type | USB |
| Power consumption (typical) | 15 W |
| Wireless charging | No |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android, iPadOS |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight dimensions | |
| Width | 64 mm |
| Depth | 124 mm |
| Height | 26 mm |
| Weight | 93 g |
| Packaging data | |
| Package width | 143 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 149 g |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 465 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 440 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.3 m |
| Chipset | Realtek - RTD2172L, Realtek - RTL8153B, VIA - VL822, VIA - VL103 |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Laptops Notebooks |
