| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | DK30A2DH |
| Barcode | 0065030868235 |
| Brand Name | StarTech.com |
| Product Model | DK30A2DH |

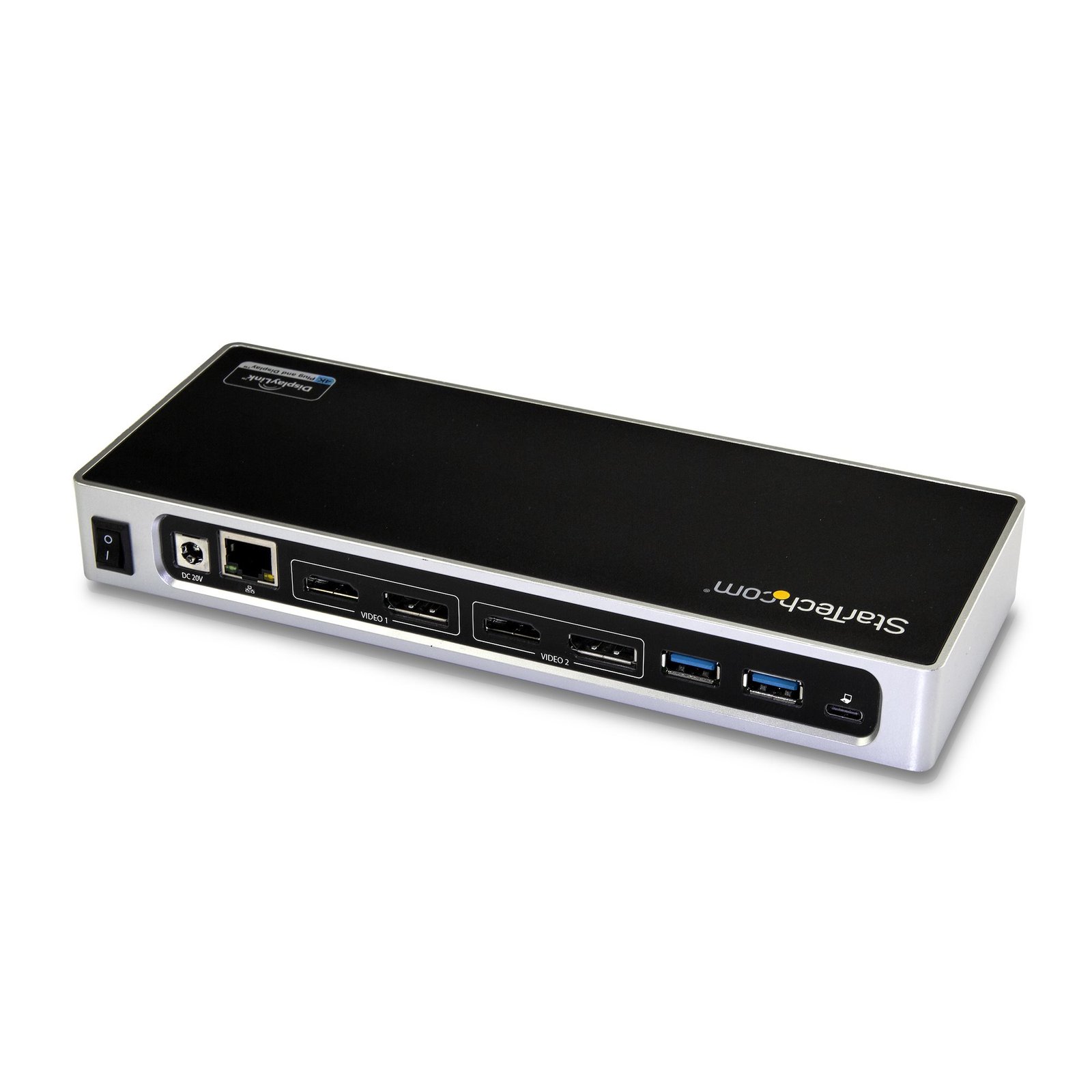

| Product Name | StarTech.com USB-C USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C or USB-A Laptops - 6x USB Type-A, GbE - USB 3.1 Gen 1 - Mac/Windows |
| Marketing Information |
USB-C / USB 3.0 Docking Station - Universal Laptop Docking Station - Dual 4K - Dual HDMI, Dual DP, HDMI DP 60Hz - Port Replicator - USB Dock : This dual-4K USB 3.0 docking station is the next generation in USB universal docking stations, working with both USB-C and USB-A port equipped laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors. This dual-4K docking station helps improve your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors -- even if your laptop doesn't natively support 4K output. The docking station supports 4K low latency, high-resolution graphics on both video ports, using any combination of HDMI or DisplayPort monitors.
|
| Packaged Quantity | 1 |
| Mfr. Part Number | DK30A2DH |
|---|---|
| Barcode | 0065030868235 |
| Product Model | DK30A2DH |
| Packaged Quantity | 1 |
| Ports interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| 10G support | No |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Product colour | Black, Silver |
| On/off switch | Yes |
| LED indicators | Power |
| UASP support | Yes |
| Housing material | Aluminium, Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 20 V |
| Output current | 2 A |
| Power consumption (typical) | 40 W |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, JP, UK, US |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight dimensions | |

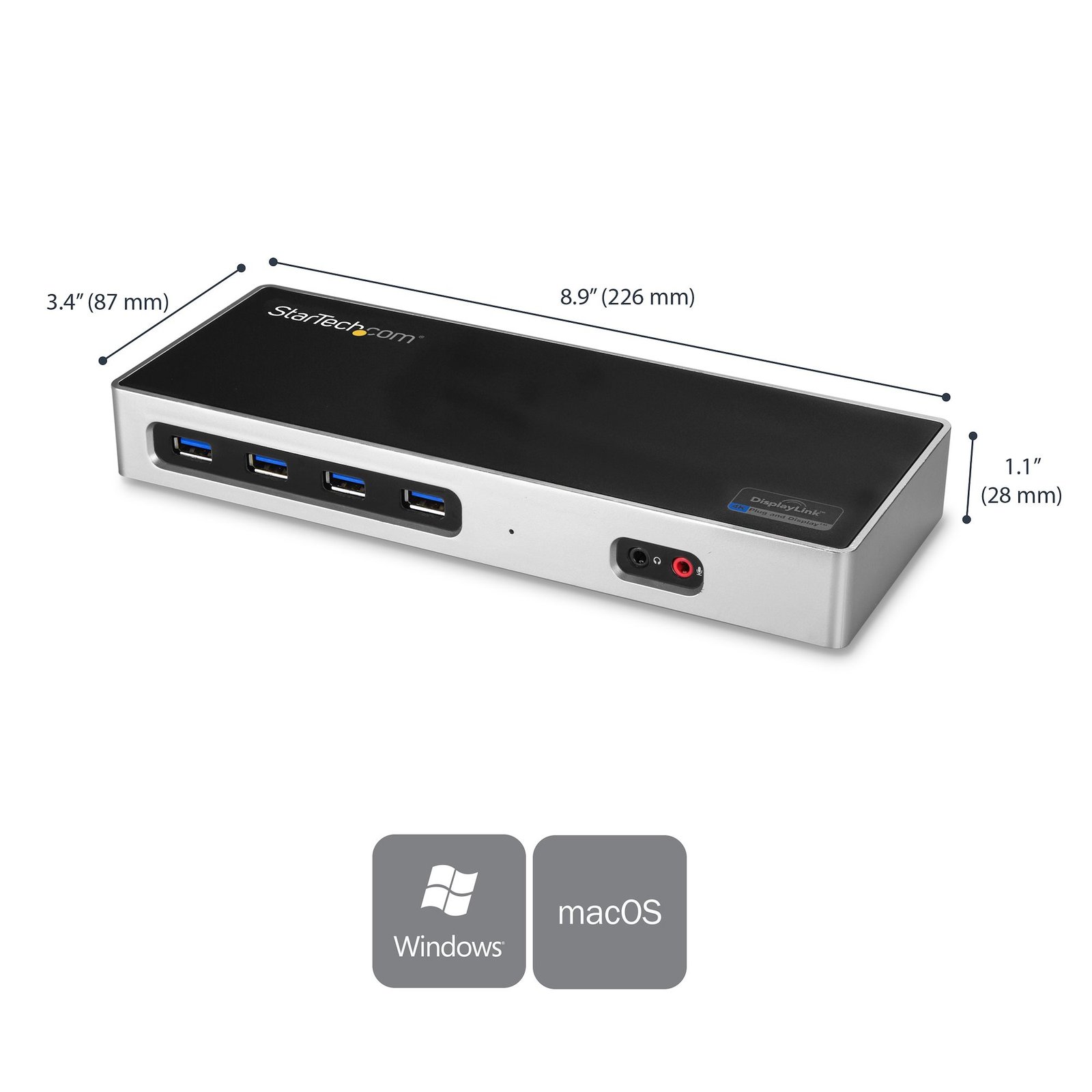

| Width | 87 mm |
| Depth | 226 mm |
| Height | 28 mm |
| Weight | 301 g |
| Packaging data | |
| Package width | 130 mm |
| Package depth | 318 mm |
| Package height | 52 mm |
| Package weight | 900 g |
| Packaging content | |
| Cables included | USB Type-A to USB Type-C, USB Type-C |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 305 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.152 m |
| Chipset | DisplayLink - DL-6950, VIA/VLI - VL813 |
| Number of microphone inputs | 1 |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Laptops Notebooks |
