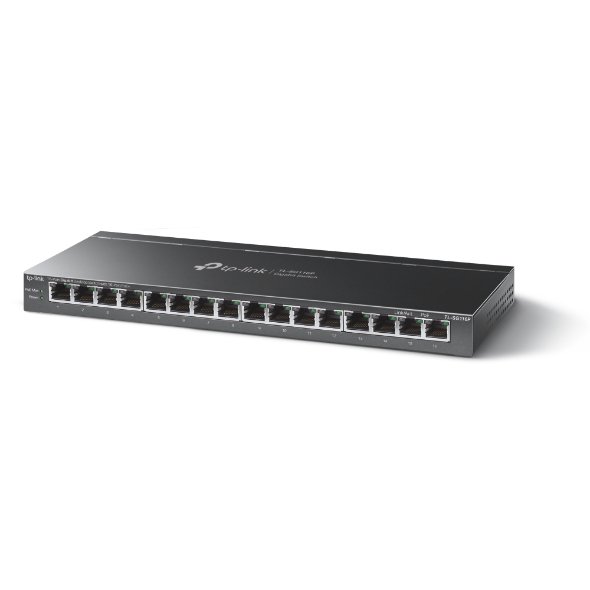

TP-Link 16-Port Gigabit Desktop Switch with PoE+ TLSG116P

Name: TP-Link 16-Port Gigabit Desktop Switch with PoE+ TLSG116P
Brand: TP-Link
SKU: TLSG116P
Price: 182.81 USD
Availability: InStock

Availability: In Stock Mfr. Part#: TLSG116P Model: TL-SG116P

$192.23 Save 5% · $9.42

$182.81 USD

Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.

B2B Volume Pricing
Purchase Orders Accepted for Approved Accounts
Government Institutional Purchasing
Secure Checkout

Download brochure / datasheet

Product Details

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Power over Ethernet (PoE). Wall mountable

Product Specifications

Manufacturer	TP-Link
Manufacturer Part Number	TLSG116P
Barcode	840030708398
Brand Name	TP-Link
Product Model	TL-SG116P
Product Name	TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+
Marketing Information	16-Port Gigabit Desktop Switch with 16-Port PoE+ PORT: 16 Gigabit PoE+ Ports SPEC: 802.3at/af, 120 W PoE Power, Desktop Steel Case. FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-4, Isolation Mode, PoE Auto Recovery, Plug and Play.
Packaged Quantity	1

Management features
Mfr. Part Number	TLSG116P
Barcode	840030708398
Product Model	TL-SG116P
Packaged Quantity	1
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Cable length detection	Yes
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, Tagged VLAN
Number of VLANs	32
Data transmission
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
Security
IGMP snooping	Yes
Loop protection	Yes
Design
Stackable	Yes
Product colour	Black
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
Power
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	9 V
Input current	0.6 A
Power consumption (typical)	11.72 W
Power consumption (max)	144.28 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	490.55 BTU/h
Weight dimensions
Width	286 mm
Depth	111.7 mm
Height	25.4 mm
Packaging content
Quick start guide	Yes
Packaging data
Package width	227 mm
Package depth	434 mm
Package height	70 mm
Package weight	2 kg
Brand	TP-Link
Availability	In Stock
Price Currency	USD
Category	Network Switches
