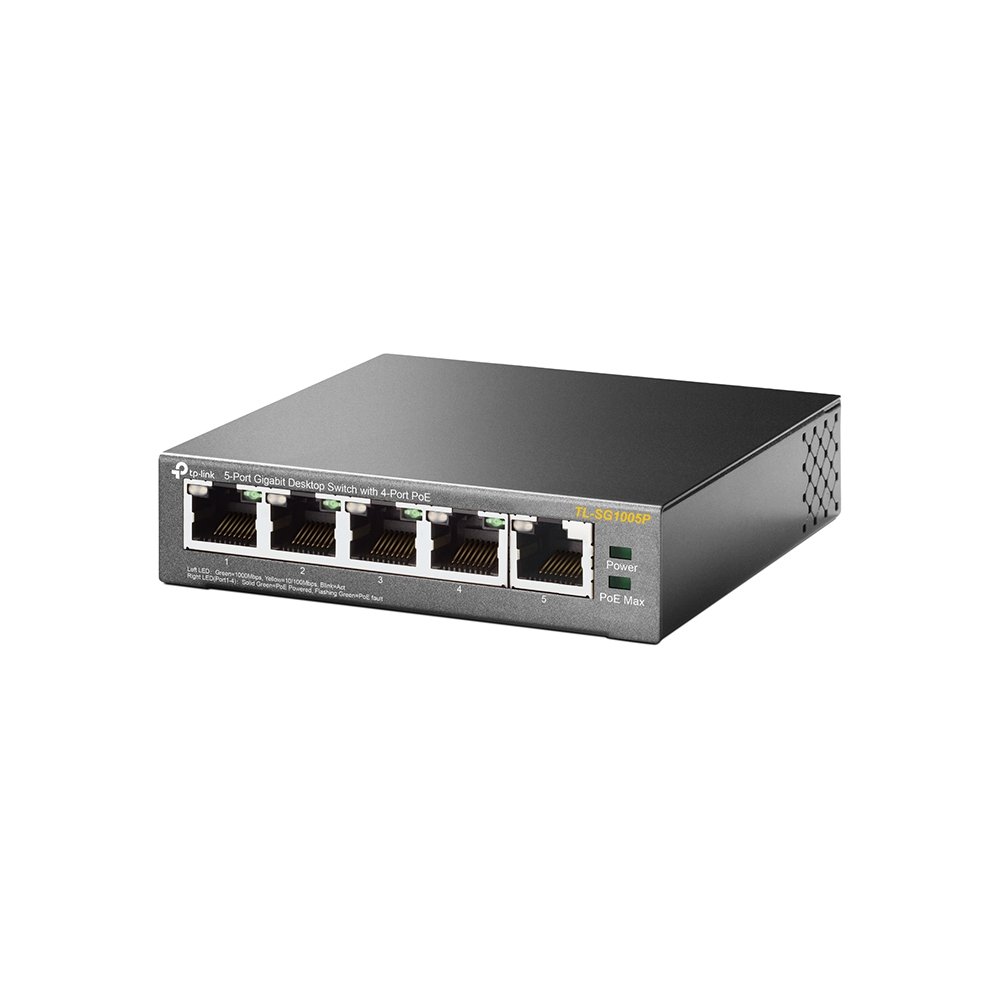

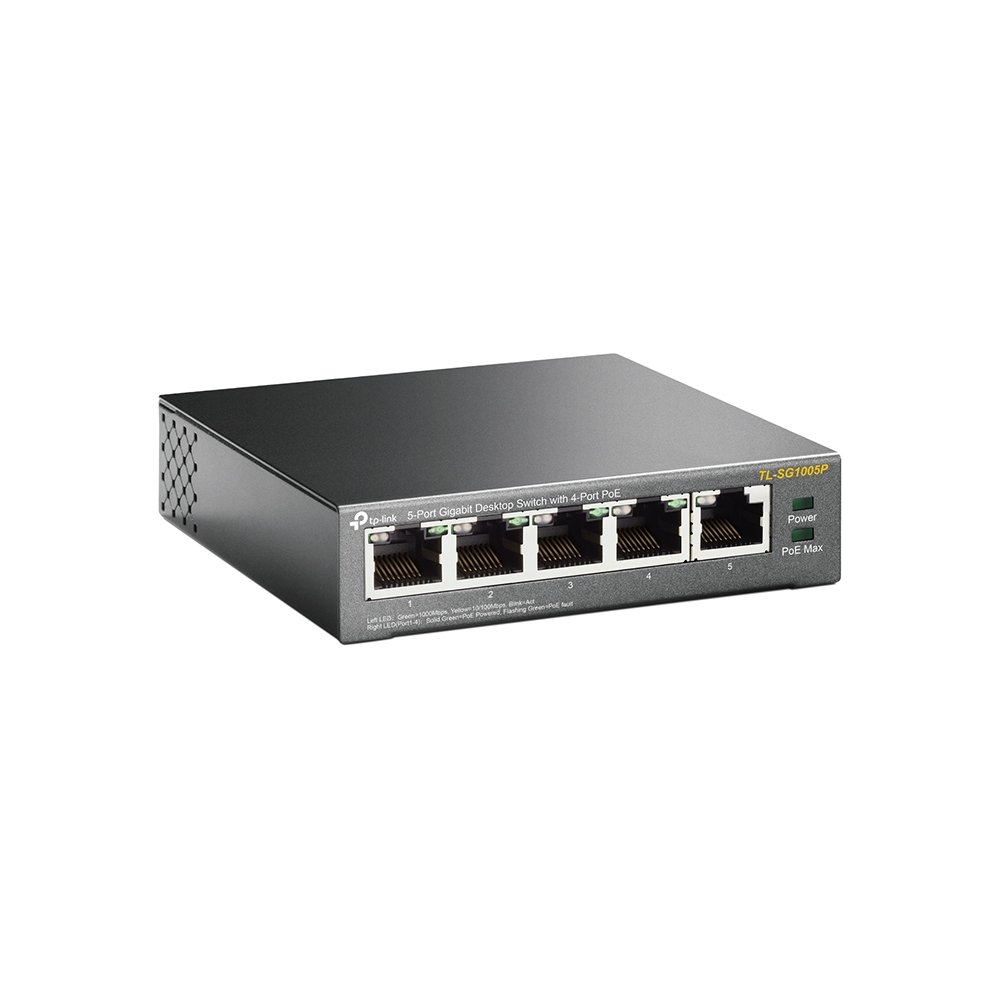

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port TLSG1005P

Name: TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port TLSG1005P
Brand: TP-Link
SKU: TLSG1005P
Price: 61.26 USD
Availability: InStock

Availability: In Stock Mfr. Part#: TLSG1005P Model: TL-SG1005P

$65.77 Save 7% · $4.51

$61.26 USD

Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.

B2B Volume Pricing
Purchase Orders Accepted for Approved Accounts
Government Institutional Purchasing
Secure Checkout

Download brochure / datasheet

Product Details

PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Product Specifications

Manufacturer	TP-Link
Manufacturer Part Number	TLSG1005P
Barcode	840460603928
Brand Name	TP-Link
Product Model	TL-SG1005P
Product Name	TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port
Marketing Information	5-Port Gigabit Desktop Switch with 4-Port PoE
Packaged Quantity	1

Management features
Mfr. Part Number	TLSG1005P
Barcode	840460603928
Product Model	TL-SG1005P
Packaged Quantity	1
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
VLAN support	Yes
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Security
IGMP snooping	Yes
Design
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes
Performance
Maximum cable length	100 m
Fanless	Yes
Power
Power source	DC/PoE
Power supply included	Yes
AC input voltage	100 - 220 V
AC input frequency	50 Hz
DC input voltage	48 V
Input current	1.25 A
Power consumption (max)	64.44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	56 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	219.87 BTU/h
Weight dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging content
Cables included	AC
Quick start guide	Yes
User guide	Yes
Manual	Yes
Packaging data
AC adapter included	Yes
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	761 g
Sustainability
Sustainability compliance	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
Brand	TP-Link
Availability	In Stock
Price Currency	USD
Category	Network Switches
