TP-Link
TP-Link Omada SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Mfr. Part# TLSL2428P
$288.10
$273.98
| Manufacturer | TP-Link |
|---|---|
| Manufacturer Part Number | TLSG116 |
| Barcode | 840460604093 |
| Brand Name | TP-Link |
| Product Model | TL-SG116 |

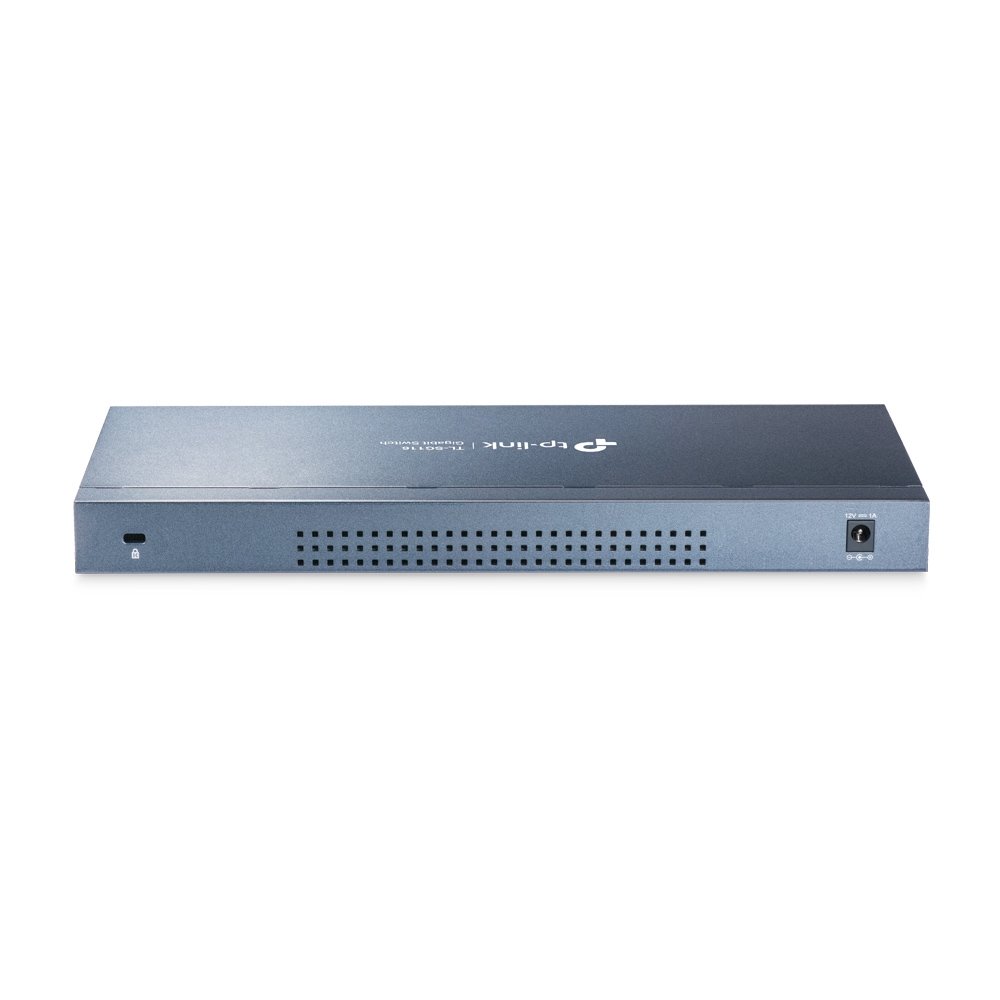

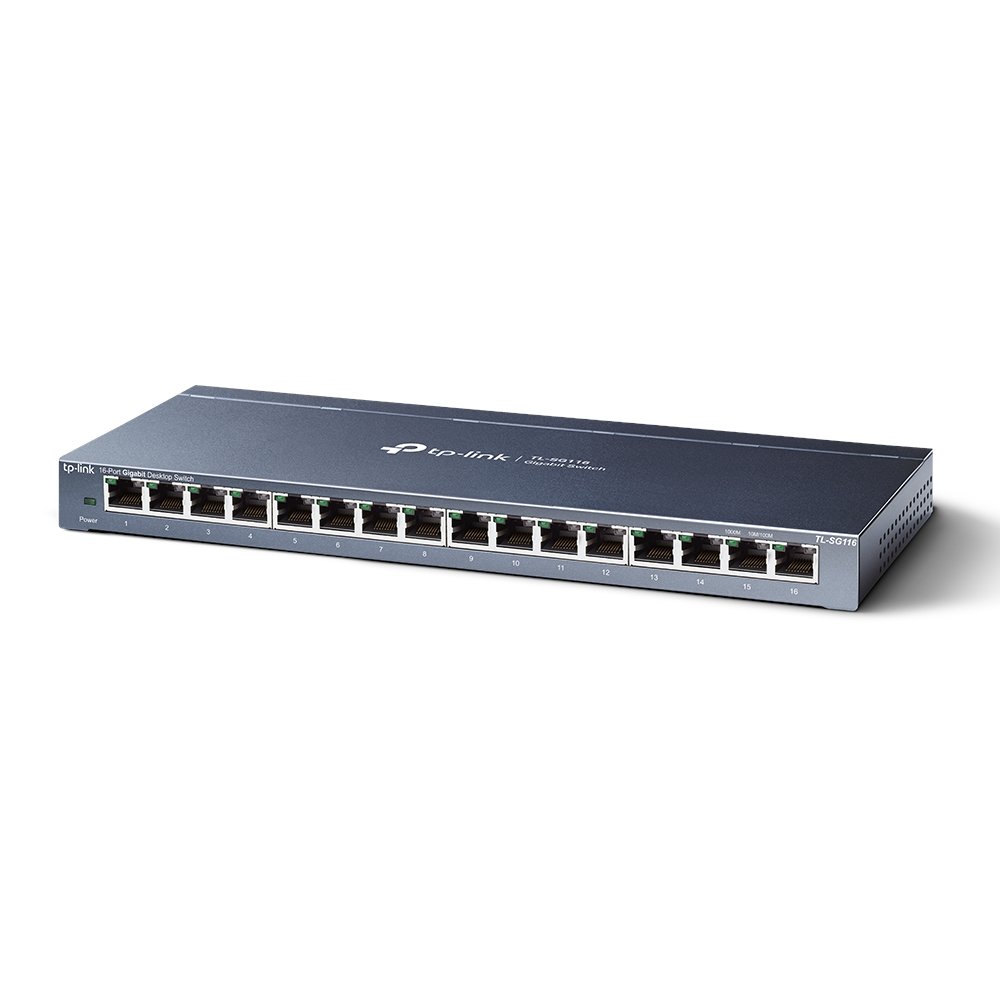

| Product Name | TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black |
| Marketing Information |
TPLINK 16 Port Gigabit Switch
|
| Packaged Quantity | 1 |
| Mfr. Part Number | TLSG116 |
|---|---|
| Barcode | 840460604093 |
| Product Model | TL-SG116 |
| Packaged Quantity | 1 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable length detection | Yes |
| VLAN support | Yes |
| Virtual LAN features | Protocol-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Security | |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (max) | 9.3 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 31.68 BTU/h |
| Weight dimensions | |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | TP-Link |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
No reviews yet. If you have bought this, yours would be the first.
