/Viewsonic SW-070 PC/workstation Intel® Celeron® N3060 2 GB 32 GB Flash Windows 10 IoT Core Mini PC
Product Details
Deliver targeted messaging with ease and reliability! With the ViewSonic NMP642-W network media player and DisplayIt!Xpress software, you can be confident that your impactful content reaches your audience thanks to an embedded auto reboot and play feature. Even in the event of a power outage, the NMP642-W will automatically reboot and play pre-loaded content once power is restored—ensuring continued playback without missing a beat! With DisplayIt!Xpress software, you can easily manage a signage network of any size from a single PC. Use PowerPoint or other familiar office applications to create new content, then simply drag and drop media files to build playlists within seconds. Update content with a single click over wired or wireless networks, shared folders, cloud storage or USB drive. Scheduling options for each playlist item ensures the right message at the right time. Add eye-catching widgets that include date, time, weather and scrolling text with RSS support. Creating, uploading and managing content just became as easy as 1-2-3.
Product Specifications
| Manufacturer | VIEWSONIC UCC |
|---|---|
| Manufacturer Part Number | SW-070 |
| Barcode | 0766907932010 |
| Brand Name | ViewSonic |
| Product Name | Viewsonic SW-070 PC/workstation Intel® Celeron® N3060 2 GB 32 GB Flash Windows 10 IoT Core Mini PC |
| Mfr. Part Number | SW-070 |
|---|---|
| Barcode | 0766907932010 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3060 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.48 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| System bus rate | 5 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron N3000 series |
| Processor codename | Braswell |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 90 °C |
| PCI Express slots version | 2.0 |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| Number of processors installed | 1 |
| Processor socket | BGA 1170 |
| Stepping | D1 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| ECC supported by processor | No |
| Memory | |
| Internal memory | 2 GB |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 32 GB |
| Storage media | Flash |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 400 |
| On-board graphics card base frequency | 320 MHz |
| On-board graphics card burst frequency | 600 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| Number of execution units | 12 |
| Performance | |
| Product type | Mini PC |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |

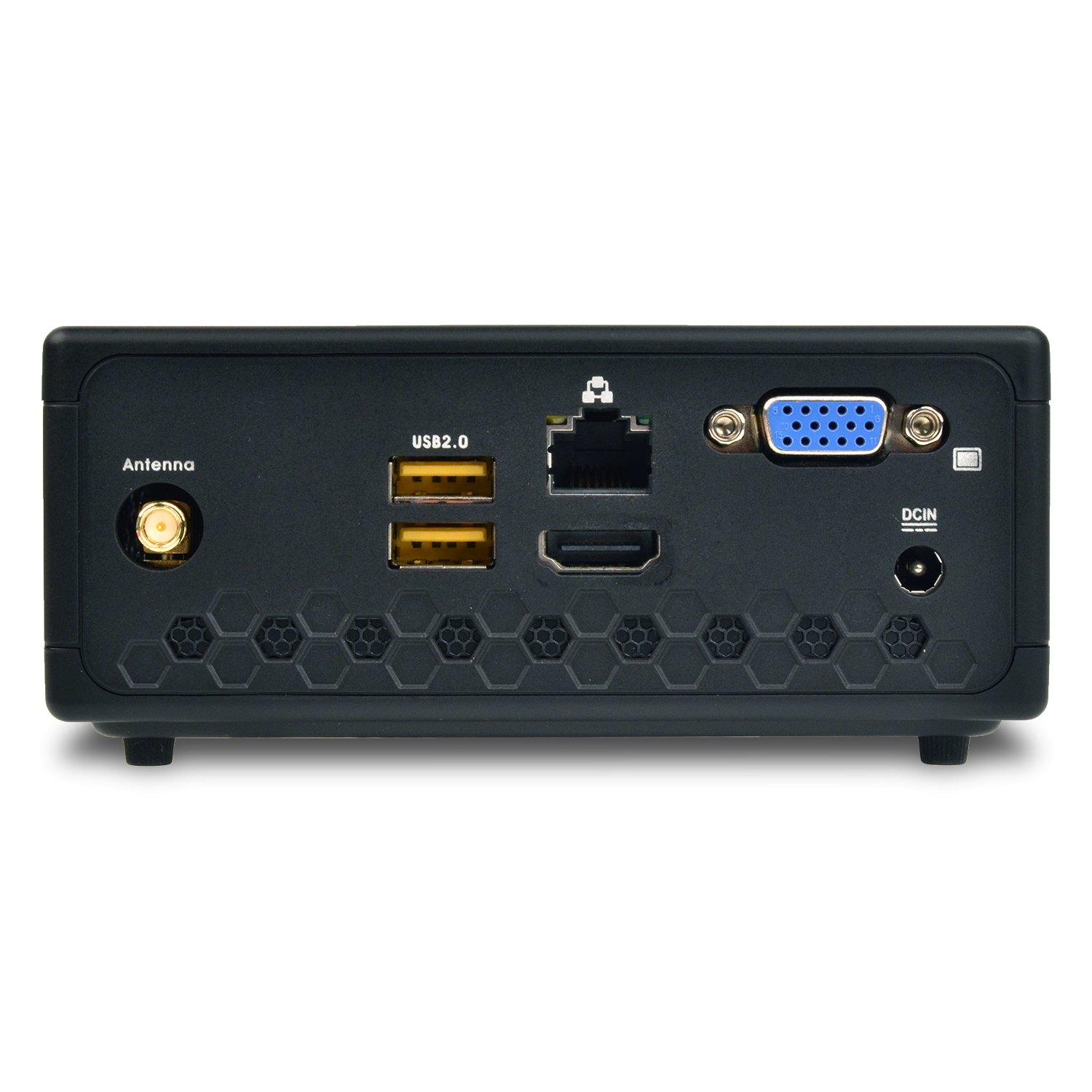

| Ports interfaces | |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| DVI port | No |
| Power | |
| Power supply | 40 W |
| Design | |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Software | |
| Operating system installed | Windows 10 IoT Core |
| Processor special features | |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | No |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Enhanced Halt State | Yes |
| Brand | ViewSonic |
| Availability | In Stock |
| Price Currency | USD |
| Category | Desktops Workstations |
