Zyxel
Zyxel XMG1915-18EP Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Mfr. Part# XMG191518EP
$433.80
$421.04
| Manufacturer | ZYXEL |
|---|---|
| Manufacturer Part Number | XMG1930-30HP |
| Barcode | 0760559129422 |
| Brand Name | Zyxel |

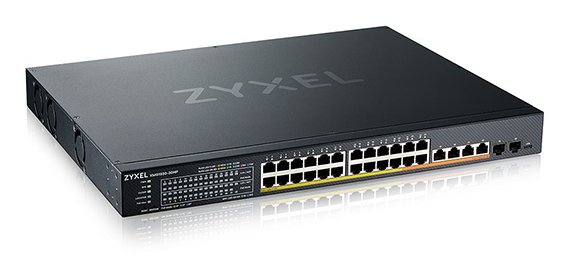

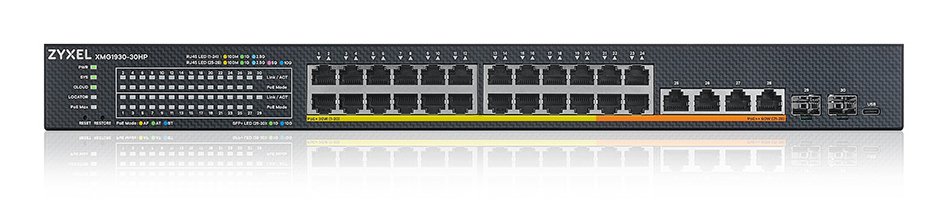

| Product Name | Zyxel XMG1930-30HP network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black |
| Mfr. Part Number | XMG1930-30HP |
|---|---|
| Barcode | 0760559129422 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Yes |
| Ports interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 10G Ethernet (copper) ports quantity | 4 |
| Installed SFP+ modules quantity | 2 |
| Fiber optic connector | SFP, SFP+ |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 178.5 Mpps |
| MAC address table | 16000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Security | |
| DHCP features | DHCP client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Performance | |
| Mean time between failures (MTBF) | 587922.31 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 864.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 28 |
| Power over Ethernet plus (PoE+) ports quantity | 20 |
| Power over Ethernet (PoE+++) ports quantity | 28 |
| Total Power over Ethernet (PoE) budget | 700 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 864.1 BTU/h |
| Weight dimensions | |
| Width | 441 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4.85 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | Yes |
| Brand | Zyxel |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
